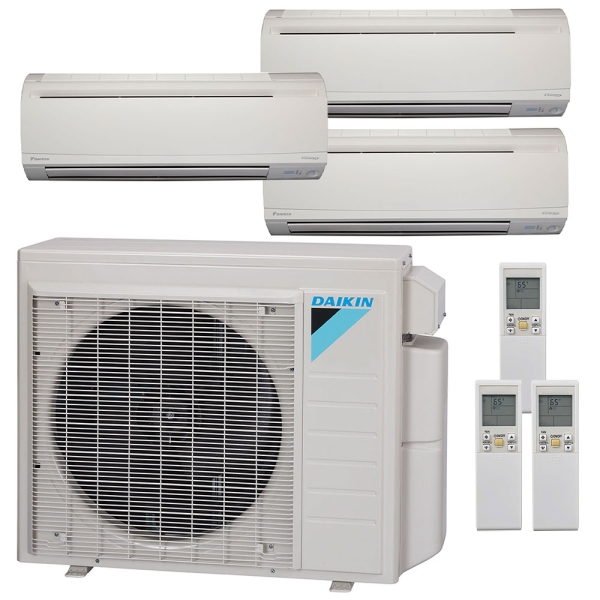

34k BTU 17.7 SEER Daikin Ductless Heat Pump Split System - 3 Zone Wall Mounted - 7k+9k+18k

Item
HA18664
Models 4MXS36RMVJUA, CTXS07LVJU, FTXS09LVJU, FTXS18LVJU
Condition
New

$6,889.46


Customize 34k BTU 17.7 SEER Daikin Ductless Heat Pump Split System - 3 Zone Wall Mounted - 7k+9k+18k
36k BTU 17.7 SEER Daikin Ductless Heat Pump Condenser
Item: HA18614 Model: 4MXS36RMVJUA
Qty: 1
7k BTU Daikin LV Wall Mounted Ductless Air Handler
Item: HA12367 Model: CTXS07LVJU
Qty: 1
9k BTU Daikin LV Wall Mounted Ductless Air Handler
Item: HA12615 Model: FTXS09LVJU
Qty: 1
18k BTU Daikin LV Wall Mounted Ductless Air Handler
Item: HA13339 Model: FTXS18LVJU
Qty: 1

* Required Fields

In stock

Ships Within 1-2 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    36k BTU 17.7 SEER Daikin Ductless Heat Pump Condenser
    Item: HA18614 Model: 4MXS36RMVJUA
    Qty: 1
    7k BTU Daikin LV Wall Mounted Ductless Air Handler
    Item: HA12367 Model: CTXS07LVJU
    Qty: 1
    9k BTU Daikin LV Wall Mounted Ductless Air Handler
    Item: HA12615 Model: FTXS09LVJU
    Qty: 1
    18k BTU Daikin LV Wall Mounted Ductless Air Handler
    Item: HA13339 Model: FTXS18LVJU
    Qty: 1

    Contractors

    Call 270-575-9595 Now


    What's included

    • Daikin 4MXS36RMVJUA
    • Daikin CTXS07LVJU
    • Daikin FTXS09LVJU
    • Daikin FTXS18LVJU
    • Owner Manual
    • Lifetime Tech Support


    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model 4MXS36RMVJU,CTXS07LVJU,FTXS09LVJU,FTXS18LVJU
    AHRI Number 201851579
    Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
    Bundle Cooling Capacity 2.5 Ton
    Bundle Cooling Efficiency 17 SEER
    EER 9.2
    Heat Pump Efficiency (HSPF) 12.2
    Series MXS
    Zones 3
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    4MXS36RMVJUA Specifications:

    More Information
    Model 4MXS36RMVJUA
    Product Height (in) 29
    Avg Coverage Area 1,500 - 1,800 Sq Ft
    Product Length (in) 12.63
    Compressor Inverter
    Product Width (in) 34.25
    Cooling Capacity 3 Ton
    Electrical Phase 1-Phase
    Heat Pump Efficiency (HSPF) Up to 12.2
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 25 amps
    Weight (lbs) 139.000000
    Primary Heating Capacity 35,001 - 40,000 BTU
    Refrigerant R-410a
    Cooling Efficiency 17 SEER
    Series MXS
    Suction Line Size 1/2 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 12 Year Parts
    Region Compatibility Nationwide

    CTXS07LVJU Specifications:

    More Information
    Model CTXS07LVJU
    Product Height (in) 11.63
    Configuration Wall Mounted
    Product Length (in) 8.44
    Air Flow Direction Horizontal
    Product Width (in) 31.5
    Blower Motor Multi Speed
    Cooling Capacity Less than 1 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 20.000000
    Series LV
    Suction Line Size 3/8 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 12 Year Parts

    FTXS09LVJU Specifications:

    More Information
    Model FTXS09LVJU
    Product Height (in) 10.5
    Configuration Wall Mounted
    Product Length (in) 34
    Air Flow Direction Horizontal
    Product Width (in) 14.5
    Blower Motor Multi Speed
    Cooling Capacity Less than 1 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 26.000000
    Series LV
    Suction Line Size 3/8 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 12 Year Parts

    FTXS18LVJU Specifications:

    More Information
    Model FTXS18LVJU
    Product Height (in) 13
    Configuration Wall Mounted
    Product Length (in) 45.5
    Air Flow Direction Horizontal
    Product Width (in) 17
    Blower Motor Multi Speed
    Cooling Capacity 1.5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 20 amps
    Weight (lbs) 44.000000
    Series LV
    Suction Line Size 1/2 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 12 Year Parts
