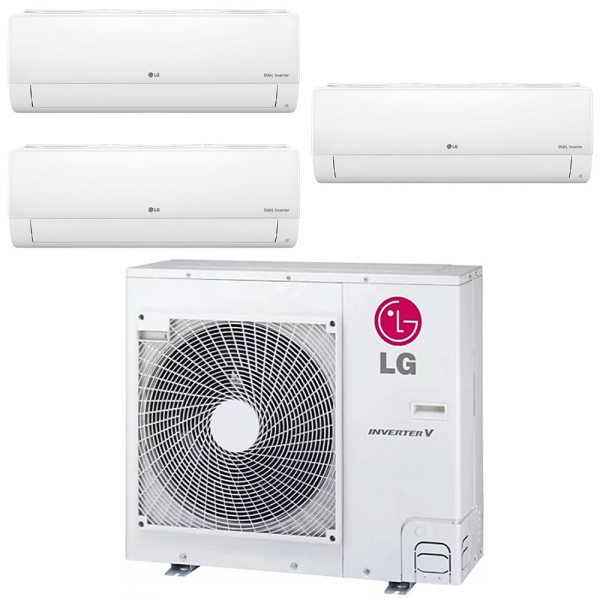

36k BTU 22 SEER LG Ductless Heat Pump Split System - 3 Zone Wall Mounted - 12k+12k+18k

Item: HA13550
Models: LMU36CHV, LSN120HSV5, LSN180HSV5
Condition: New

36k BTU 22 SEER LG Ductless Heat Pump Split System - 3 Zone Wall Mounted - 12k+12k+18k Zoom

Photo Gallery

Related Videos



Availability: 2 In stock

As low as: $4,742.22

Price as configured: $4,742.22

Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

This Bundle Includes

36k BTU 22 SEER LG Multi Zone Ductless Heat Pump Condenser 36k BTU 22 SEER LG Multi Zone Ductless Heat Pump Condenser Item: HA13521 Model: LMU36CHV Qty: 1
12k BTU LG High Efficiency Wall Mounted Ductless Air Handler 12k BTU LG High Efficiency Wall Mounted Ductless Air Handler Item: HA12745 Model: LSN120HSV5 Qty: 2
18k BTU LG High Efficiency Wall Mounted Ductless Air Handler 18k BTU LG High Efficiency Wall Mounted Ductless Air Handler Item: HA12931 Model: LSN180HSV5 Qty: 1

* Required Fields

Overview

Product Features



Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model LMU36CHV,LSN120HSV5,LSN120HSV5,LSN180HSV5
UPC 48231374569
AHRI Number 7180063
Avg Coverage Area 1,500 - 1,800 Sq Ft
Cooling Capacity 3 Ton
Cooling Efficiency 19 SEER and Above
EER 13.5
Heat Pump Efficiency (HSPF) 10.6
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home

Individual Item Specifications

LMU36CHV Specifications:

Model LMU36CHV
UPC 048231374569
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) Up to 9.7
Lineset Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 25 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height 32.84
Product Length 13
Product Width 37.41
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight 137.0000
Region Compatibility Nationwide

LSN120HSV5 Specifications:

Model LSN120HSV5
UPC 048231385732
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Lineset Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height 11.25
Product Length 8.25
Product Width 34.88
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight 20.0000

LSN180HSV5 Specifications:

Model LSN180HSV5
UPC 048231385787
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Lineset Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Product Height 12.81
Product Length 9.81
Product Width 40.56
Special Features WiFi Capable
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight 31.0000
