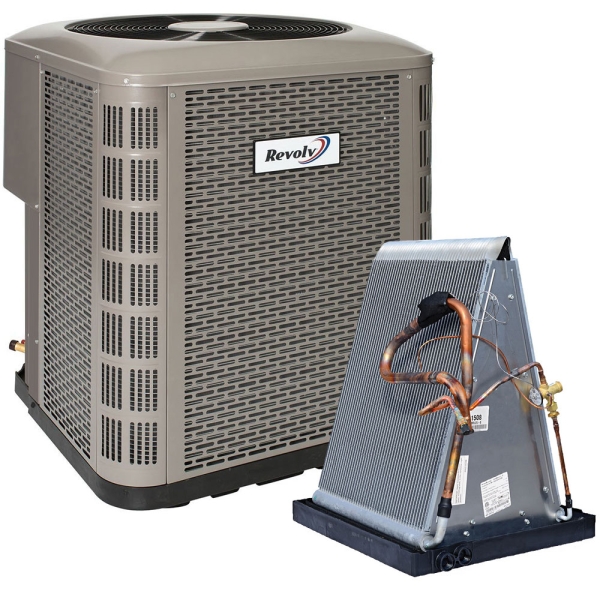

4 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

Item
HA23786
Models RSH3ME4M1SP48, C84DAMX49U-B
Condition
New


Customize 4 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    4 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump Condenser
    Item: HA22702 Model: RSH3ME4M1SP48
    Qty: 1
    4 Ton Revolv Mobile Home Evaporator Coil - TXV
    Item: HA23756 Model: C84DAMX49U-B
    Qty: 1

    Affordable HVAC Installation


    What's included

    DOCUMENTS


    Are you feeling drained from the unpredictable temperature fluctuations that disturb the atmosphere of your mobile home? It's time to move past the annoyances and set your sights on the future with the 4 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System. Boasting AHRI certification and ETL listing, a SEER2 rating of 14, and arriving at your doorstep fully equipped to manage spaces spanning from 2000 to 2400 square feet, this Revolv Heat Pump provides unparalleled climate control that extends into every nook and cranny of your motorhome. This reliability gives you the freedom to relax in any room of your home without the need to scour around, hunting for the comfortable spots.

    Engineered for longevity, the 4 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System utilizes a thoughtfully selected range of features that protect the internal hardware. The sturdy cabinet of this Revolv Heat Pump is constructed from galvanized steel and treated with a powder-paint finish, bringing some aesthetic charm while smoothing out any sharp edges. This coating passes an intensive 950-hour salt spray test when conducted in accordance with ASTM standard B117, guaranteeing resilience against scratches, chipping, fading, and corrosion over the years. Maintenance is effortless and airflow is amplified with the addition of a removable top grille assembly and easily accessible compressor and controls. The composite base pan not only deadens operational noise but also bolsters corrosion resistance all in a robust yet lightweight structure. With protection further boosted by a powder-coated wire guard and mesh hail guard, you can breathe a sigh of relief with the confidence that the internals remain shielded from sports equipment, severe weather conditions, and more.

    The internal components of this 4 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System mirror the outstanding performance produced by the external hardware. Safety features like a high-pressure switch constantly keep track of the system pressures, immediately addressing any potential issues without the need for your direct involvement while the auto-reset function eliminates yet another common cause for service calls. The brass valves are easily accessible and come pre-charged to handle up to 20 feet of tubing, saving you both time and cost during both setup and maintenance. The inclusion of all-aluminum coils grants this Revolv Heat Pump even more corrosion resistance, further enhancing the already impressive durability. With all these advantages within your reach, why endure a subpar ambiance another second? Upgrade to this 4 Ton Revolv today and transform your mobile house into a mobile home.

    More Information
    Model RSH3ME4M1SP48,C84DAMX49U-B
    UPC 663132452484
    AHRI Number 209875354
    Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
    Bundle Cooling Capacity 4 Ton
    Bundle Cooling Efficiency (SEER2) 14.3
    EER2 11
    Heat Pump Efficiency (HSPF2) 8.5
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    RSH3ME4M1SP48 Specifications:

    More Information
    Model RSH3ME4M1SP48
    UPC 663132452484
    Product Height (in) 39
    Avg Coverage Area 2,000 - 2,400 Sq Ft
    Product Length (in) 30.75
    Compressor Single Stage
    Product Width (in) 30.75
    Cooling Capacity 4 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 40 amps
    Weight (lbs) 218.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 14.3
    Suction Line Size 7/8 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    C84DAMX49U-B Specifications:

    More Information
    Model C84DAMX49U-B
    Product Height (in) 25
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 5 Ton
    Product Width (in) 18.13
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 33.500000
    Refrigerant R-410a
    Suction Line Size 7/8 inch
    Warranty 5 Year
