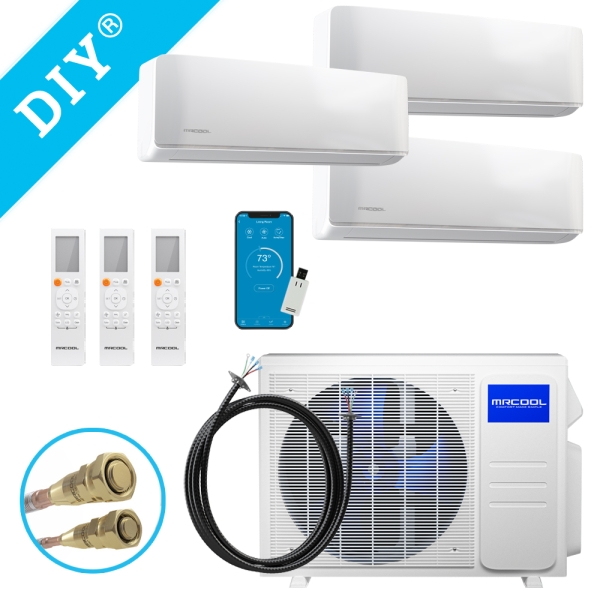

The 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split, is a system you can install yourself without expert help. With a 48k BTU heating capacity, the system includes two 12k BTU air handlers that can heat or cool a space between 500-600 square feet, as well as a 24k BTU handler that can cover between 1000-1200 square feet.
Accessories
Description / Documents

The 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split, is a system you can install yourself without expert help. With a 48k BTU heating capacity, the system includes two 12k BTU air handlers that can heat or cool a space between 500-600 square feet, as well as a 24k BTU handler that can cover between 1000-1200 square feet.

The 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split was made for the amateur installer! You'll need no special tools, training, or assistance. This is thanks in part to the Quick Connect line set that comes precharged with refrigerant so there's no vacuum required. The DIYPRO cable aids in the installation ease as well by providing superior mechanical protection from animals, yard tools, or weather without the need for an electrical conduit.

You have ultimate control over the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split! You can either control it with the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant.

You can experience your desired temperature without any adjustment with the convenient auto mode. With auto mode, you simply set your temperature, and no matter what, the MrCool DIY Ductless Mini Split will work to maintain that consistent temperature for you. No need to worry that your spaces won't be at your preference!

You can trust that the air you breathe when using the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split is clean and healthy for you and your family. After the unit shuts off when using dry or cool modes, the air handler will run for an additional 10 minutes with a low fan. This will eliminate excess condensation within the unit that could lead to mildew production.

Other useful features include the timer mode, so you aren't using energy when unnecessary. If you experience a power outage, when power is restored, the units will automatically return to their previous settings, so you can trust your areas will soon be back to your preferred comfort level.

Maintaining the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split is as easy as the installation. The clear LED display will show any necessary trouble-shooting codes to refer to in the user manual. Cleaning both the indoor and outdoor units just requires wiping down with a damp or dry cloth. When the air handler reminds you that it is time to clean the filters, all you have to do is remove them, rinse them with water, allow them to dry, then replace them in the handler.

The 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split is backed by a 7-year compressor warranty and 5-year parts warranty. You can feel confident in your purchase!

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM348HPW02C35
UPC 840255502030
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-24-HP-WMAH-230C25 Specifications:

Model DIY-24-HP-WMAH-230C25
UPC 810063868536
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 35.270000
Refrigerant R-410a
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY25-3858 Specifications:

Model DIY25-3858
UPC 810035931053
Liquid Line Size 3/8 inch
Weight (lbs) 15.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None
