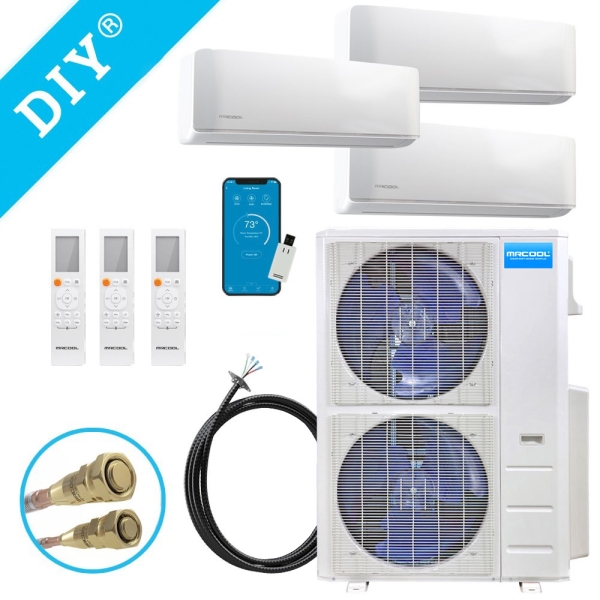

The new 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split is an easy-to-install, highly efficient system to handle all of your heating and cooling needs in three rooms in your home. Each of the 18k BTU wall-mounted indoor air handlers can heat or cool an area between 750-900 square feet. The 12k BTU handler is capable of heating or cooling a space between 500-600 square feet.
Accessories
Description / Documents

The new 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split is an easy-to-install, highly efficient system to handle all of your heating and cooling needs in three rooms in your home. Each of the 18k BTU wall-mounted indoor air handlers can heat or cool an area between 750-900 square feet. The 12k BTU handler is capable of heating or cooling a space between 500-600 square feet.

You may think it would be difficult to install a full A/C system yourself, but not with the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split! This system was created to be installed by the novice homeowner with no special tools, training, or assistance. This is thanks in part to the Quick Connect line set that comes precharged with R410-A refrigerant. Installation is also easy with the DIYPRO cable. It provides excellent mechanical protection from animals, yard tools, or weather without the need for an electrical conduit.

You can customize the way in which you control the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split. You can use the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant.

There are many operational modes with this system to enjoy your most comfortable environment in the best way for you. If you don't want to worry about adjusting your MrCool DIY Ductless Mini Split, and just want to enjoy your preferred comfort level long-term, then auto mode is for you. With auto mode, you just set the temperature you desire and the system will work to maintain that temperature for you.

There's a variety of other features that allow you to customize your experience. If you only need heating or cooling for a short period of time and would like to conserve energy, utilize the timer function. You can have the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split run for as long as you need before shutting off, so you aren't using excess energy when unnecessary. No worries about power outages either. Once power is restored, the unit will automatically return to the previous settings from before the outage.

Maintaining the MrCool DIY Ductless Mini Split is as simple as the installation. If you receive any alert, a convenient trouble-shooting code will appear on the front panel display. You can reference this code in the user manual. To clean the indoor and outdoor units, simply wipe them down with a damp or dry cloth–no special cleaning solutions are needed. Even cleaning the air filters is simple. When the air handler reminds you to clean them, just remove them, rinse them with water, allow them to dry, and replace them in the handler.

The 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split is backed by a 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM348HPW01C28
UPC 840255501125
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.610000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
