48k BTU 20.5 SEER Multi-Zone MrCool DIY 4 Zone Ductless Heat Pump Split System 4th Generation - 9k+9k+18k+18k
Shop All MRCOOL

Accessories
Description / Documents

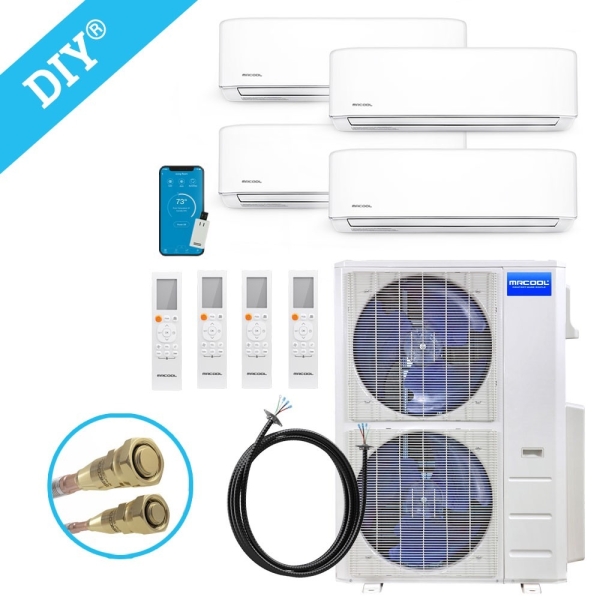

Utilize the 4th Generation MrCool DIY Multi-Zone 48k BTU 4 Zone Ductless Mini Split to heat and cool four different spaces in your home or business. It was created to be installed without expert HVAC help. It has a heating capacity of up to 48,000 BTU and is highly efficient with a 20.5 SEER rating. This is thanks in part to the variable speed DC inverter. The two 9,000 BTU air handlers can heat or cool around 375-450 square feet. The two 18,000 BTU air handlers work best in spaces between 750-900 square feet.
Made for DIY installation, the 4th Generation MrCool DIY Multi-Zone 48k BTU 4 Zone Ductless Mini Split is easy to install without any specialize tools, training, or HVAC assistance. A key component of this easy installation is the Quick Connect line set, which comes precharged with refrigerant that is more eco-friendly than previous versions of the past. The new DIYPRO cable also aids in the installation ease by providing excellent mechanical protection without the need of an electrical conduit.
The 4th Generation MrCool DIY Multi-Zone 48k BTU 4 Zone Ductless Mini Split offers many operating modes so you can feel most comfortable. The simplest operating option is Auto Mode. It's made for those who want to set it and forget it. Simply set your desired temperature and the system will automatically maintain it until you adjust it.
There are a variety of other features for you to use to customize your heating and cooling experience. With the anti-mildew function, the air handler will automatically run a 10-minute low fan after shutoff in order to dry out any accumulated condensation that could lead to mildew production. Don't worry if a power outage occurs, either. The MrCool DIY Ductless Mini Split will automatically resume the previous operating settings prior to the outage once power is restored.
Maintaining the 4th Generation MrCool DIY Multi-Zone 48k BTU 4 Zone Ductless Mini Split is easy too. To clean both indoor and outdoor units, simply wipe each appliance with a dry or damp cloth. No special cleaning solutions are needed.
Maintain the MrCool DIY Ductless Mini Split by using the troubleshooting codes that appear on the front display of the air handlers when a potential issue arises. These codes can be easily referenced in the user manual.
You can feel secure in your purchase thanks to the 7-year compressor warranty and 5-year parts warranty.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM448HPW07C84 |
|---|---|
| UPC | 840255534734 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 11 |
| Heat Pump Efficiency (HSPF) | 11 |
| Series | DIY |
| Zones | 4 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230C25 Specifications:
| Model | DIY-09-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869533 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-18-HP-WMAH-230C25 Specifications:
| Model | DIY-18-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868512 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 34.610000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
