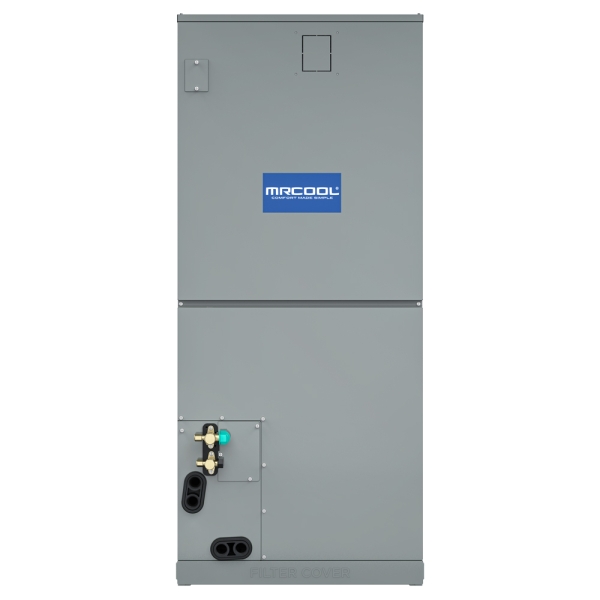

5 Ton MrCool Hyper Heat Central Ducted Air Handler - Multiposition
Shop All MRCOOL

In stock
Ships Within 1-2 Business Days
Accessories
Description / Documents
Achieving the ideal comfort level in your home promotes daily efficiency and promotes restorative sleep at night. The 5 Ton MrCool Hyper Heat Central Ducted Air Handler offers an economical and outstanding solution to create a comfortable environment while maintaining high efficiency and effectiveness. Featuring an impressive SEER2 of up to 15.3 and an HSPF2-4 rating of up to 9.4, this air handler can maintain a comfortable indoor temperature even when external conditions reach as low as -22 degrees F or as high as 122 degrees F. This modern and cost-effective air handler is an excellent option for replacing older, less efficient systems.
Constructed with high-quality painted galvanized steel, the 5 Ton MrCool Hyper Heat Central Ducted Air Handler showcases a robust build and a sophisticated finish. This guarantees dependable heating and cooling performance over time, while producing noise levels no louder than typical room ambience. The air handler's streamlined, compact design and sliding blower simplify maintenance tasks. Equipped with removable filters, the unit ensures a clean and fresh environment for your family. The self-diagnostic panel on the air handler facilitates the detection of any error codes, which can also be identified on the provided wired thermostat, helping you save both time and money on maintenance.
The 5 Ton MrCool Hyper Heat Central Ducted Air Handler is designed for hassle-free installation by HVAC experts, owing to its compatibility with the optional MrCool No-Vac Quick Connect Line Set. The Quick Connect connectors enable the handler and condenser to be rapidly and efficiently connected, conserving time and money. The kink-resistant line set is precharged with eco-friendly R410-A refrigerant, eliminating the need for conventional vacuuming or flare welding. This air handler accommodates various installation configurations, including upflow, downflow, horizontal left, and horizontal right, making it simple to adapt to existing duct systems. Additionally, an optional heat kit can be acquired separately if required.
The air handler is equipped with a wireless remote, which includes the innovative Follow Me function. This feature enables the system to monitor and fine-tune the temperature while channeling airflow in your direction, ensuring maximum comfort wherever you are in the room. Moreover, the air handler is accompanied by a wired thermostat, granting you the opportunity to precisely establish your desired temperature.
Having earned AHRI certification, the air handler has been rigorously and impartially examined to ensure it meets all manufacturer assertions. In the unlikely event of any problems, rest assured that the 5 Ton MrCool Hyper Heat Central Ducted Air Handler is backed by a robust 10-year warranty covering parts and labor. Additionally, there is no need to register for the labor warranty that comes with the unit.
Customer Reviews / Q&A
Specifications
System Overview
| Model | CENTRAL-60-HP-MUAH230A00 |
|---|---|
| UPC | 840255553148 |
| AHRI Number | 210279124 |
| Product Height (in) | 52.99 |
| Configuration | Floor Mounted |
| Product Length (in) | 24.49 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 21.02 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 190.480000 |
| Refrigerant | R-410a |
| Series | Central Ducted |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
