Your home should be your safe haven from the world, and that includes the weather in your area. When you’re tired of hot summer and cold winters inside your home, let the MrCool DIY Multi Zone Mini Split 36k BTU 5 Zone Ductless AC & Heat Pump - 5th Generation - R454B level up your comfort to the standard you deserve. Supported by ETL and UL listings alongside AHRI and Energy Star certifications, this MrCool Mini Split has undergone intensive independent inspections to showcase the validity of every performance, efficiency, and safety claim. For your 1500 to 1800 square foot space, let the 36k BTU MrCool AC & Heat Pump give you and your loved ones the uncompromising results you’ve always wanted.

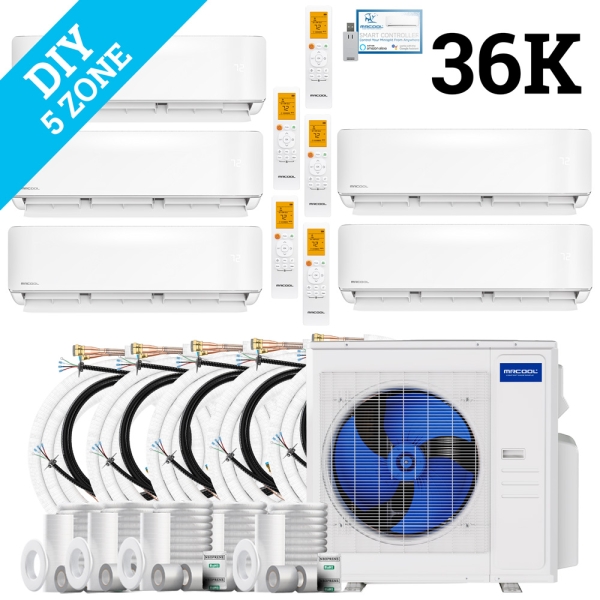

This Bundle Includes:

Accessories
Description / Documents

Your home should be your safe haven from the world, and that includes the weather in your area. When you’re tired of hot summer and cold winters inside your home, let the MrCool DIY Multi Zone Mini Split 36k BTU 5 Zone Ductless AC & Heat Pump - 5th Generation - R454B level up your comfort to the standard you deserve. Supported by ETL and UL listings alongside AHRI and Energy Star certifications, this MrCool Mini Split has undergone intensive independent inspections to showcase the validity of every performance, efficiency, and safety claim. For your 1500 to 1800 square foot space, let the 36k BTU MrCool AC & Heat Pump give you and your loved ones the uncompromising results you’ve always wanted.

Removing the headache of scheduling and paying a licensed technician to handle the setup process, the MrCool DIY Multi Zone Mini Split 33k BTU 5 Zone Ductless AC & Heat Pump - 5th Generation - R454B gives you the results you want without the hassle. Working with the precharged DIY line sets and the DIYPro armored cable, this MrCool AC & Heat Pump gives you a set of easy to follow instructions that keep the process as simple as possible. Thanks to the gold fin condensers that protect the inner workings from corrosion over the years, this MrCool Heat Pump can even provide a resilient and reliable solution in corrosive coastal climates and other areas that tend to wear down external hardware more rapidly.

With individual zone settings that don’t affect the other areas of your home, the MrCool DIY Multi Zone Mini Split 33k BTU 5 Zone Ductless AC & Heat Pump - 5th Generation - R454B tailors your results to your preferences per room. The Follow Me function utilizes built-in sensors inside the remote control to monitor the temperature in the room nearby, allowing this MrCool DIY system to autonomously change the airflow direction and strength to ensure peak comfort without having to lift a finger. Even giving you access to a smartphone app that allows you adjust your settings from anywhere in the world, this MrCool Mini Split is the perfect solution to keep you cozy in the winter, cool in the summer, and comfortable all year long.

Giving you additional support in a default warranty that provides you with 5 years of coverage on parts and 7 years on the compressor with the option to enroll in the MrCool Care Kit Program, a higher standard of living is one purchase away. Obtain this 5th Generation 33k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump bundle that comes with an indoor air handler and line set per zone today.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM536HPW02D
AHRI Number 216032592
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency (SEER2) 21.8
Heat Pump Efficiency (HSPF2) 10
Series DIY
Zones 5
Region Compatibility Nationwide

DIY-MULTI5-36HP230D-O Specifications:

Model DIY-MULTI5-36HP230D-O
UPC 840255587464
AHRI Number 216032592
Product Height (in) 31.2
Avg Coverage Area 1,500 - 1,800 Sq Ft
Product Length (in) 16.1
Compressor Inverter
Product Width (in) 37.2
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 9.9
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 30 amps
Weight (lbs) 169.200000
Primary Heating Capacity 35,001 - 40,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 23
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-12-HP-WMAH-230D25-O Specifications:

Model DIY-12-HP-WMAH-230D25-O
UPC 840255587037
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE12HP-230D25-O Specifications:

Model DIYCASSETTE12HP-230D25-O
UPC 840255587518
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

Ways to Save as You Shop

IWAE Insiders ProgramIWAE Insiders Program
IWAEPros ProgramIWAEPros Program
Financing with IWAEFinancing with IWAE
IWAE Rebate FinderIWAE Rebate Finder
Labor Warranty at IWAELabor Warranty at IWAE
Loading...
Loading...
