In stock

Ships Within 2-3 Business Days

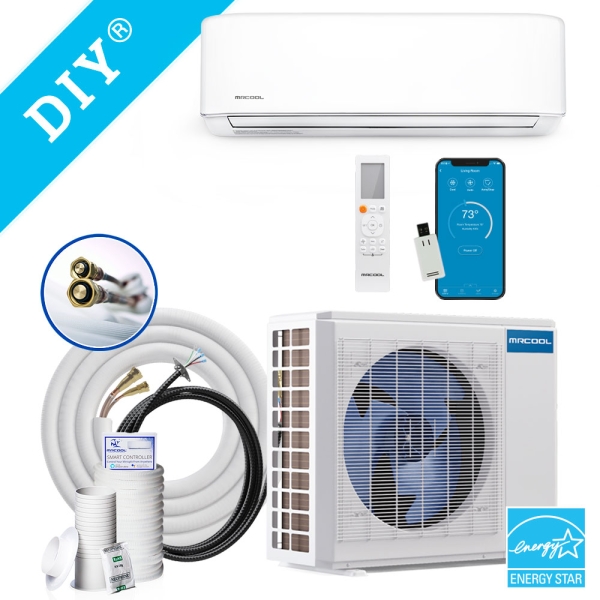

This scratch & dent 18k BTU 22 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted (S&D) gives you the ability to customize each item within the system by condition. This allows you to customize the price to fit your budget. All items selected in this 18k BTU 22 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted (S&D), regardless of condition rating, are in good working condition and should be free from mechanical defects. The photos shown are representative of the damage you may see for each grade of equipment available to choose from. If you'd like more information on the included products, please call us to speak with a customer service representative.

This Bundle Includes:

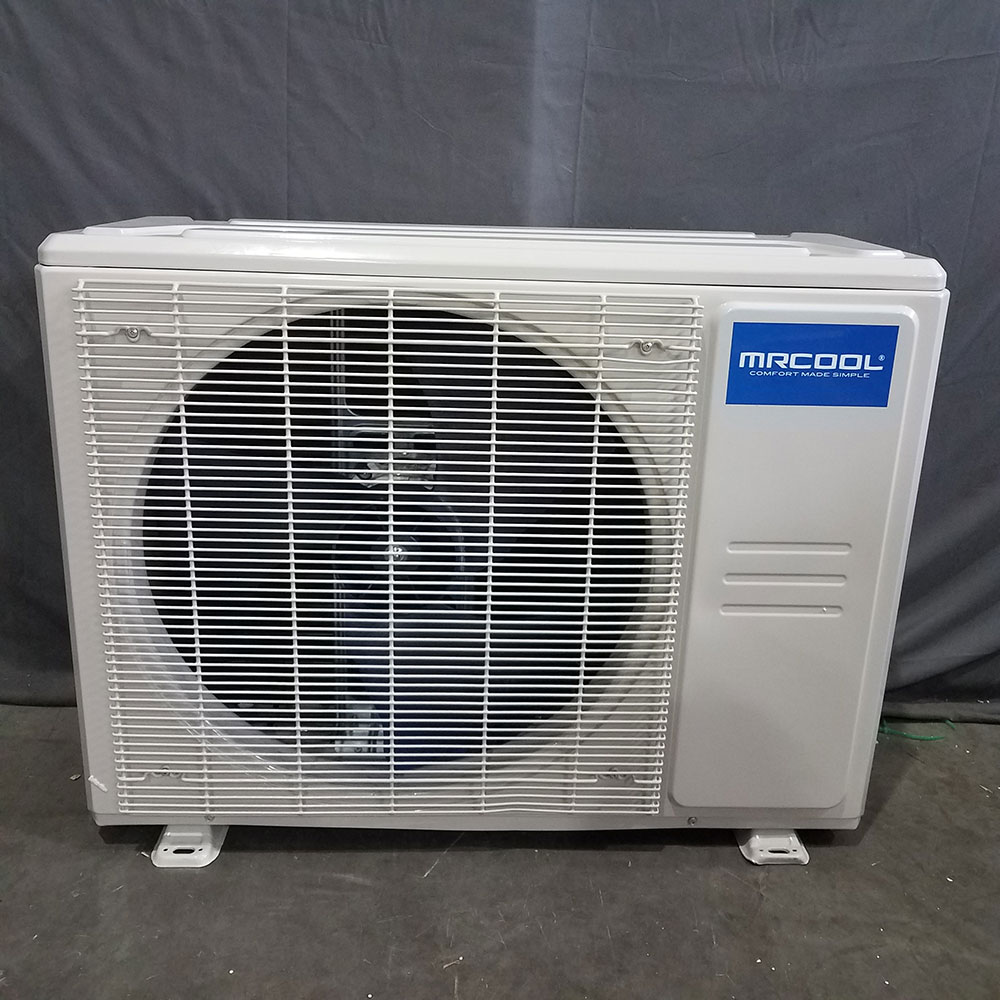

Grade A - 18k BTU 22 SEER MrCool DIYPro Ductless Heat Pump Condenser - 4th Generation (S&D)
Item: SD-DIY-18-HP-C-230C25-GAModel: DIY-18-HP-C-230C25 Qty: 1
Accessories
Description / Documents

This scratch & dent 18k BTU 22 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted (S&D) gives you the ability to customize each item within the system by condition. This allows you to customize the price to fit your budget.

Our condition rating scale is classified as follows:

  • New: Items marked as new are brand new equipment from the factory in its original packaging. There is no damage to equipment marked as new.
  • Grade A (Very Good): A "Very Good" classification means the item may have some small scrapes, cosmetic blemishes, dents, or dings that should only be visible upon close inspection of the product.
  • Grade B (Good): A "Good" classification means the item has minor scrapes, cosmetic blemishes, dents, or dings that are visible from a distance upon inspection of the product.
  • Grade C (Fair): A "Fair" classification means the item has moderate to major scrapes, cosmetic blemishes, dents, or dings that are clearly visible upon inspection of the product.
  • Grade D (Acceptable): An "Acceptable" classification means the item has major scrapes, cosmetic blemishes, dents, or dings that are clearly visible upon inspection of the product.

All damage grade items may arrive with damaged packaging or be repackaged.

All items selected in this 18k BTU 22 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted (S&D), regardless of condition rating, are in good working condition and should be free from mechanical defects.

The photos shown are representative of the damage you may see for each grade of equipment available to choose from. If you'd like more information on the included products, please call us to speak with a customer service representative. They will be happy to help.

Customer Reviews / Q&A
Specifications

System Overview

Model DIY-18-HP-WM-230C25
UPC 810035935167
AHRI Number 207339188
Bundle Avg Coverage Area 750 - 900 Sq Ft
Bundle Cooling Capacity 1.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 11.5
Series DIY
Zones 1
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-18-HP-C-230C25 Specifications:

Model DIY-18-HP-C-230C25
UPC 810063868505
Product Height (in) 26.5
Avg Coverage Area 750 - 900 Sq Ft
Product Length (in) 13.46
Compressor Inverter
Product Width (in) 35.04
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 11.5
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 30 amps
Weight (lbs) 94.360000
Primary Heating Capacity 15,001 - 20,000 BTU
Cooling Efficiency 19 SEER and Above
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

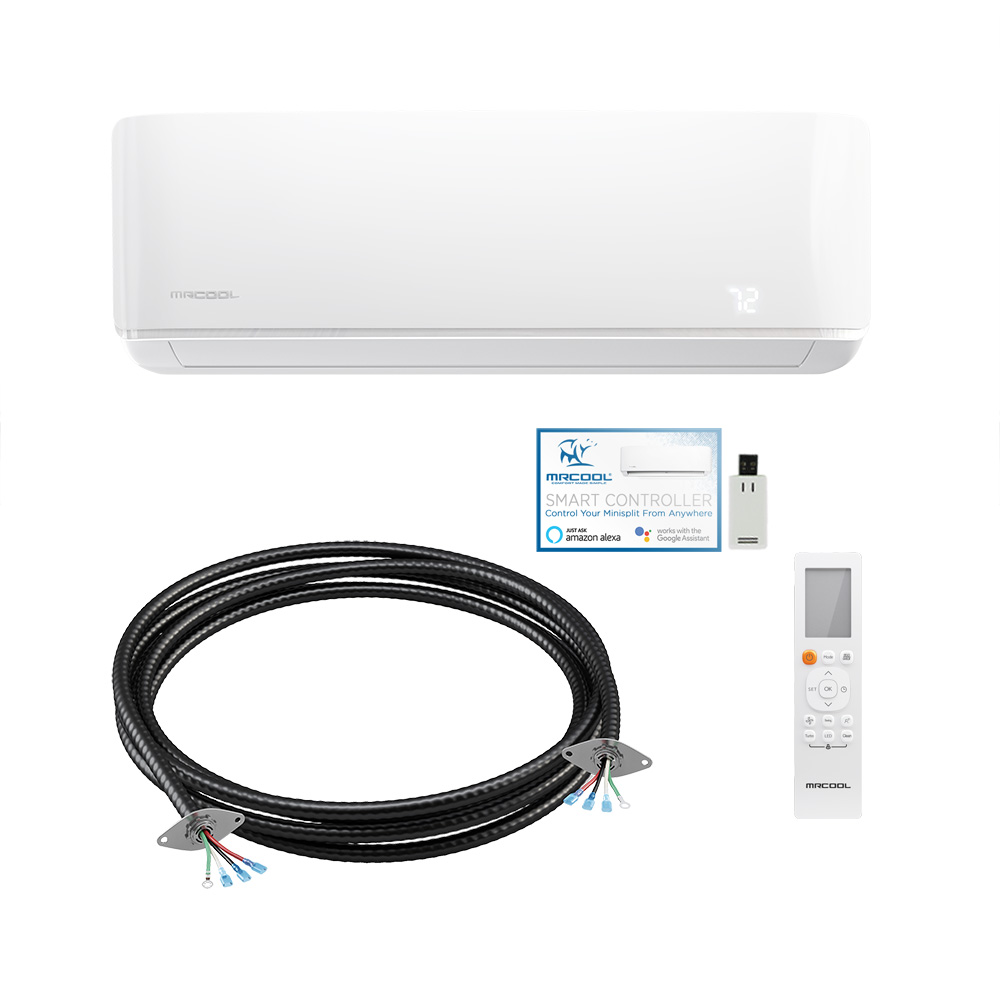

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.610000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
