2.5 to 3 Ton Horizontal Ground Loop Geothermal Installation Kit

2.5 to 3 Ton Horizontal Ground Loop Geothermal Installation Kit

Item: HA17408

Models: FUSE1600750600, HPVC1207X3S, GP21K-SU10F-R2, HK10U9012, PG-PLUS-5

Condition: New

Photo Gallery

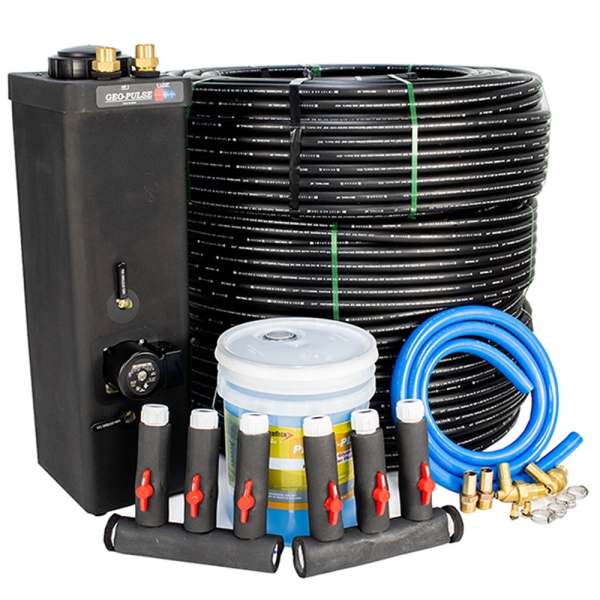

Are you getting a geothermal heat pump to keep your home cool in summer and warm in winter? Ground-source technology is great, and this geothermal installation kit contains virtually everything you will need to get the unit set-up and running as soon as possible. It is designed for use with a 2.5 to 3 ton horizontal ground loop geothermal system.

Availability: In stock

As low as: $3,085.10

Price as configured: $3,085.10

Ingram Financing

*: 3/4" x 600' CenFuse High Density Polyethylene Loop Pipe - SDR 11 Item: HA12127 Model: FUSE1600750600 Qty: 3

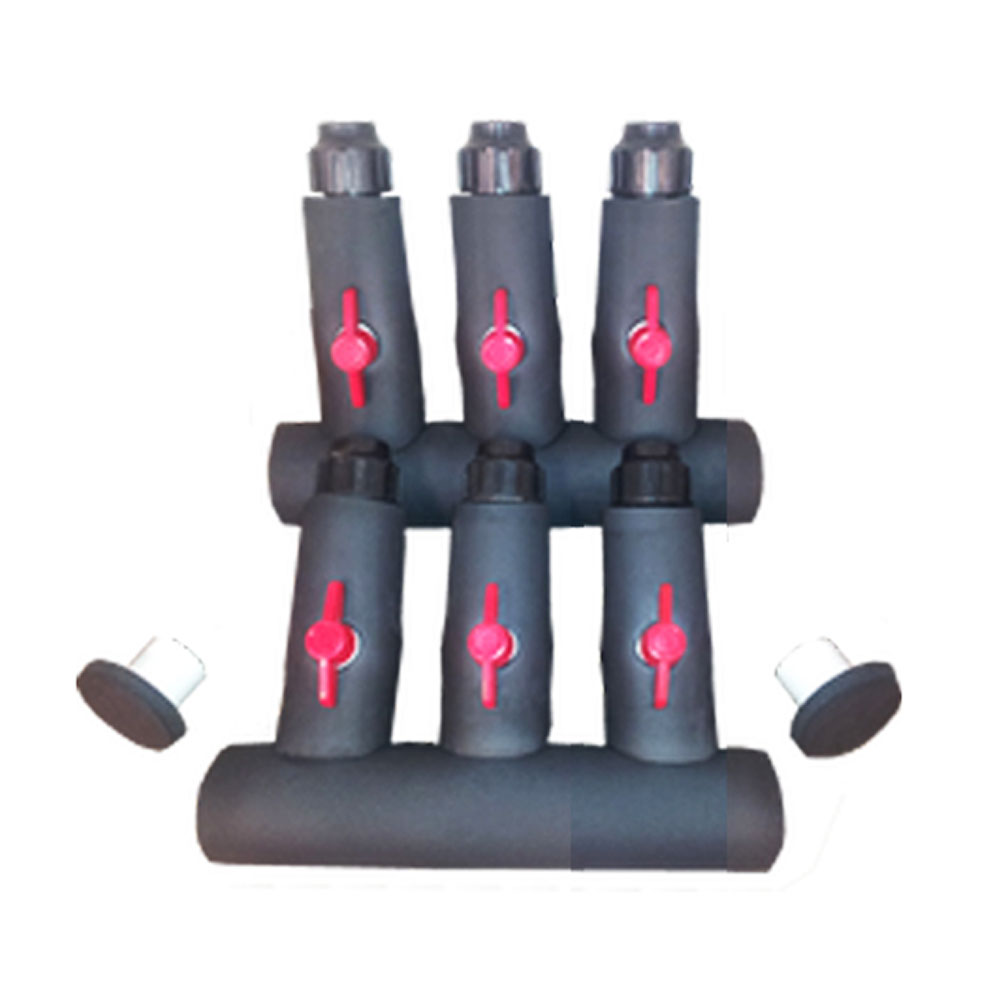

*: 1 1/4" x 3/4" 3 Circuit Insulated Header - Straight Pattern Item: HA12103 Model: HPVC1207X3S Qty: 1
*: Geo-Pulse Non-Pressurized Geothermal Flow Center - Single Pump Item: HA12100 Model: GP21K-SU10F-R2 Qty: 1
*: 1" x 12' Geothermal Hose Kit with 1" MPT to 1" Barb 90 Elbow Union Adapters Item: HA12114 Model: HK10U9012 Qty: 1
*: ProTek PG Plus Propylene Glycol Heat Transfer Fluid - 5 Gallon Item: HA12126 Model: PG-PLUS-5 Qty: 1

* Required Fields

Qty:

Ships Within 1-2 Business Days

Freight Shipping

Price Match

Not Quite Ready to Order? Click Here to Save this to a Project List

This Bundle Includes

3/4" x 600' CenFuse High Density Polyethylene Loop Pipe - SDR 11 Item: HA12127 Model: FUSE1600750600 Qty: 3

1 1/4" x 3/4" 3 Circuit Insulated Header - Straight Pattern Item: HA12103 Model: HPVC1207X3S Qty: 1

Geo-Pulse Non-Pressurized Geothermal Flow Center - Single Pump Item: HA12100 Model: GP21K-SU10F-R2 Qty: 1

1" x 12' Geothermal Hose Kit with 1" MPT to 1" Barb 90 Elbow Union Adapters Item: HA12114 Model: HK10U9012 Qty: 1

ProTek PG Plus Propylene Glycol Heat Transfer Fluid - 5 Gallon Item: HA12126 Model: PG-PLUS-5 Qty: 1

Overview

So, what all do you get in this geothermal installation kit? That is a good question, random Internet person! This bundle comes with 1800 feet of CenFuse high density polyethylene loop piping, a 3 circuit insulated header, 12 feet of hose kit with male pipe thread to barb 90 degree elbow fittings, 5 gallons of ProTek PG Plus propylene glycol heat transfer fluid, and the awesome Geo-Pulse Non-Pressurized Flow Center!

What more could you ask for in a geothermal installation kit? Well, we're not sure, but if there is anything more you could ask for then be sure to let us know! We can always add to your particular order to make sure you get the perfectly customized geothermal installation kit you need for your home. Plus, we will continue to provide technical support on your geothermal installation kit and system purchase during installation and throughout the life of the products.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.

Specifications

Model	GEOKIT-3H
California Residents	see Prop 65 WARNING

FUSE1600750600 Specifications:

Model	FUSE1600750600
Material	Polyethylene
Pipe Diameter	3/4 inch
Warranty	50 Year
Weight (lbs)	74.0000

HPVC1207X3S Specifications:

Model	HPVC1207X3S
Header Size	1 1/4 inch
Manifold Size	3/4 inch
Material	PVC
Product Height (in)	2
Product Length (in)	12
Product Width (in)	11
Weight (lbs)	5.0000
Zones	3

GP21K-SU10F-R2 Specifications:

Model	GP21K-SU10F-R2
Electrical Phase	1-Phase
Product Height (in)	34
Product Length (in)	8
Product Width (in)	15
Pumps	1
Voltage	240
Warranty	5 Year
Weight (lbs)	92.0000
Zones	1

HK10U9012 Specifications:

Model	HK10U9012
Pipe Diameter	1 inch
Weight (lbs)	1.0000

PG-PLUS-5 Specifications:

Model	PG-PLUS-5
UPC	095247141470
Product Height (in)	15
Product Length (in)	12
Product Width (in)	12
Weight (lbs)	41.7100

Reviews

Q & A

Do you have questions about this product?

Can the piping be laid slinky style? If so, how much trench is needed for 3 ton. Thank you, Janet

Is there a unit for 12 volt solor.

what size system for a 2500 sq ft. single story house with great insulation?

I intend to install 2 - approximately 3 ton geo sourced heat pump / ac units. The units will be controlling 2 separate isolated zones in one building, so I suspect that I will need to install 2 stand alone loops with pumps. The lines will be laid horizontally in trenches about 2 feet wide and 5' deep, bedded in wet sand then covered. the location is upstate SC. Questions: 1) The kit includes a "600' loop" of pipe. Is that a singe coil of pipe 600' long, a loop with 180 degree pre-welded bend at the 300 foot mid point (supply and return coiled adjacent), or 2 -300' pieces of pipe requiring field welding? I am trying to understand what you define as a "600' Loop" 2) Is the length of trench to accommodate this "600' loop" (supply in one trench, return in another trench) 300 feet long or 600 feet long? 3) Is the standard "600' Loop" that you provided adequate for each 3 ton max (probably smaller) HVAC unit? I would like to start installation as soon as possible.

There must be more parts. Where’s the heat exchanger. This kit only appears to have the coils and the pump

If wanting to install a 5 ton geo cool unit to cool a house in SE TX approx 2500 square feet, how many kits would I need and how deep for the trenches?
