3.5 to 4 Ton Horizontal Ground Loop Geothermal Installation Kit
Item
HA17409
Models FUSE1600750600, HPVC1207X4S, GP22K-SU10F-R2, HK10U9012, 9992102
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
Item: HA12099 Model: GP22K-SU10F-R2
Qty: 1
Item: HA12114 Model: HK10U9012
Qty: 1
When you need a geothermal installation kit for a 3.5 to 4 ton horizontal ground loop geothermal heat pump system, we have just the thing! This IWAE-only kit comes with just about everything you will need to get a ground-source geothermal heating and air conditioning system up and running in your home.

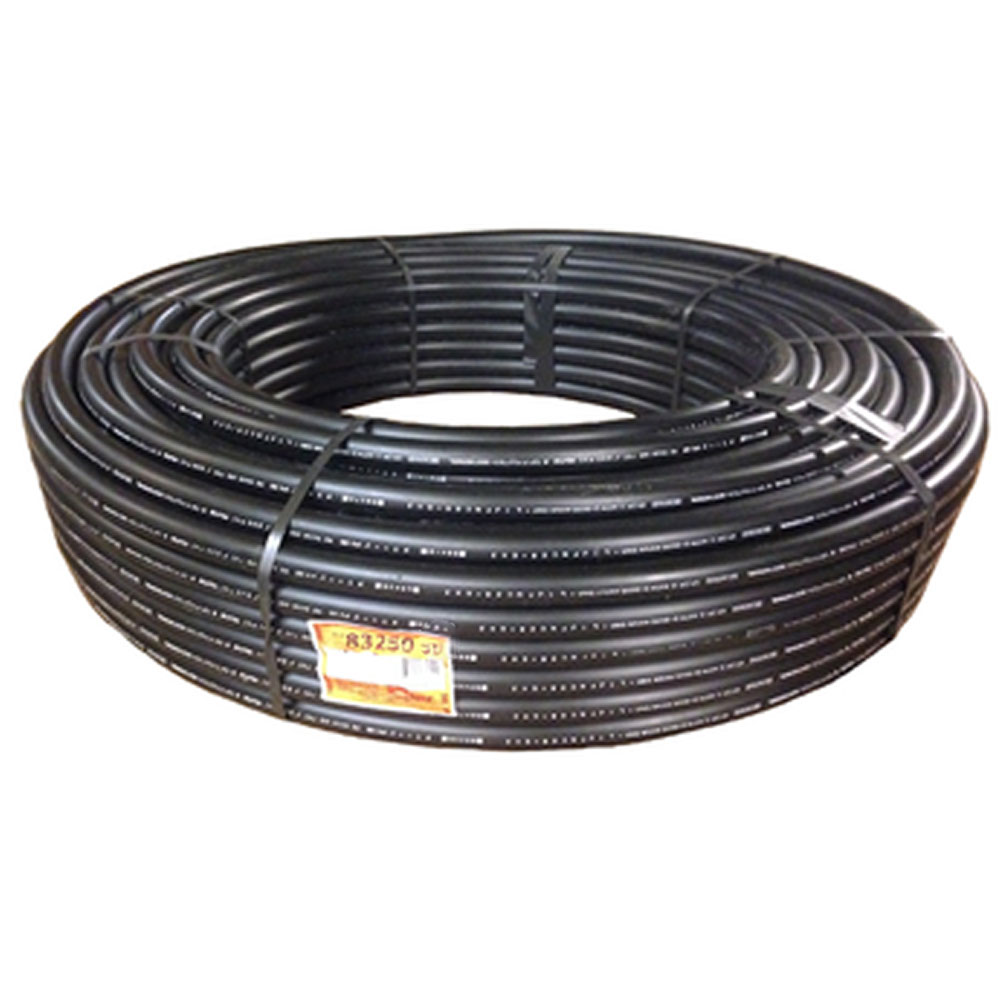

In this geothermal installation kit, you get over 2000 feet of high density polyethylene loop piping you will need to form the core of your underground heat transfer network. This is high quality CenFuse high density piping. Should you find out you need more piping for your particular climate, let us know and we can add extra.

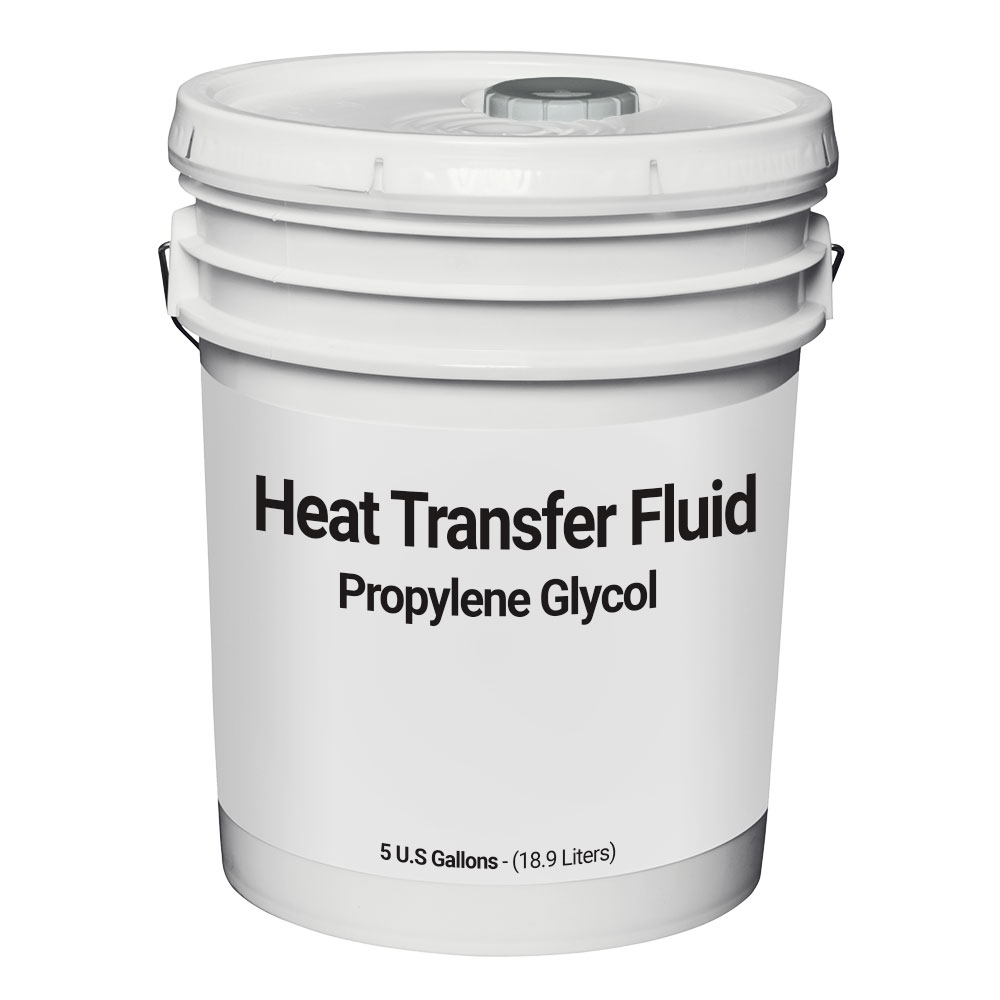

You also get 10 gallons of propylene glycol heat transfer fluid. This ProTek PG Plus liquid is the means by which your geothermal unit will move heat in and out of the ground. As with the piping, should you find that you will need more than 10 gallons of propylene glycol, let us know!

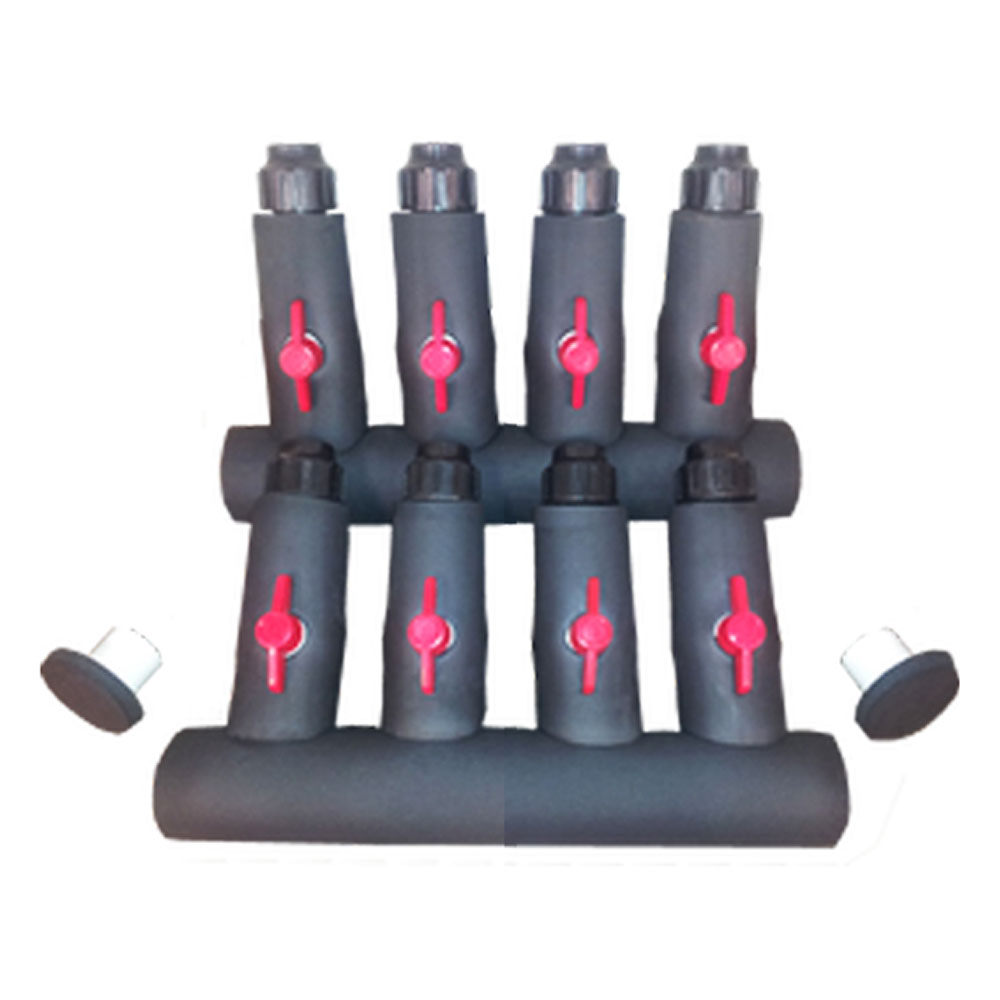

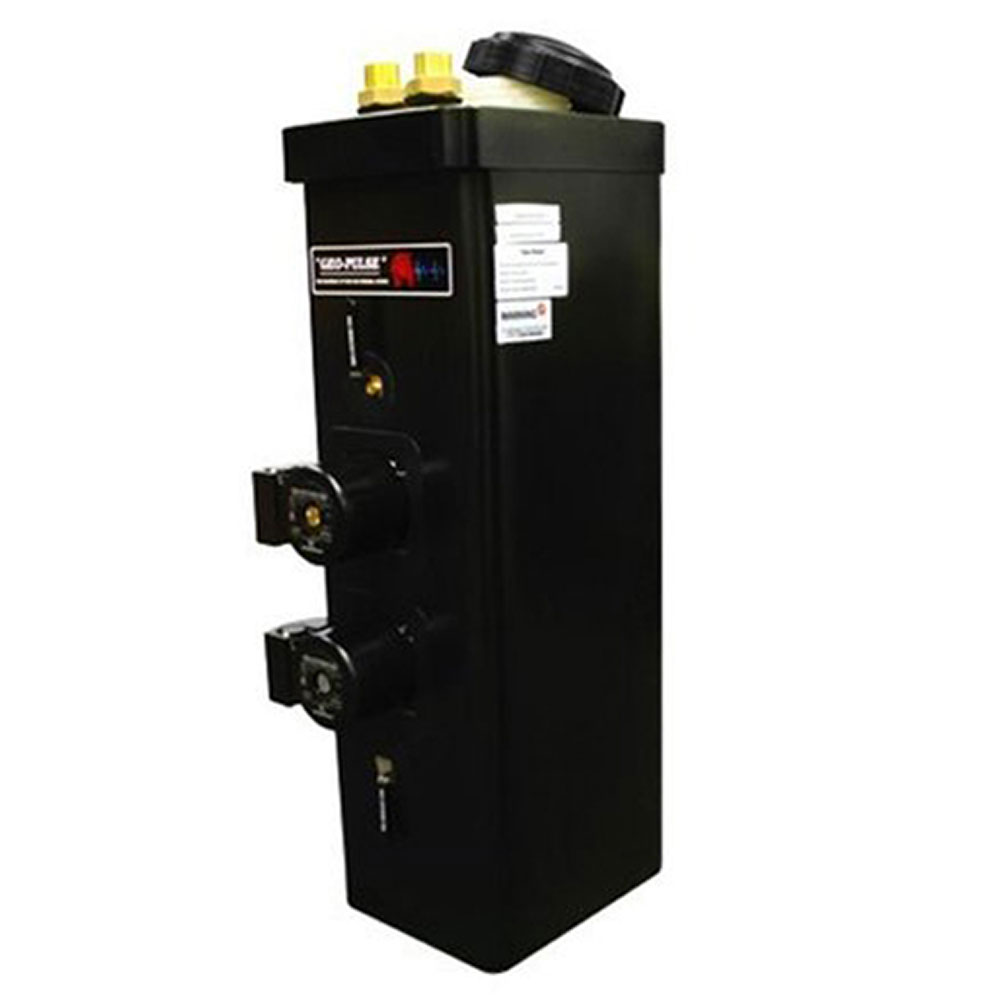

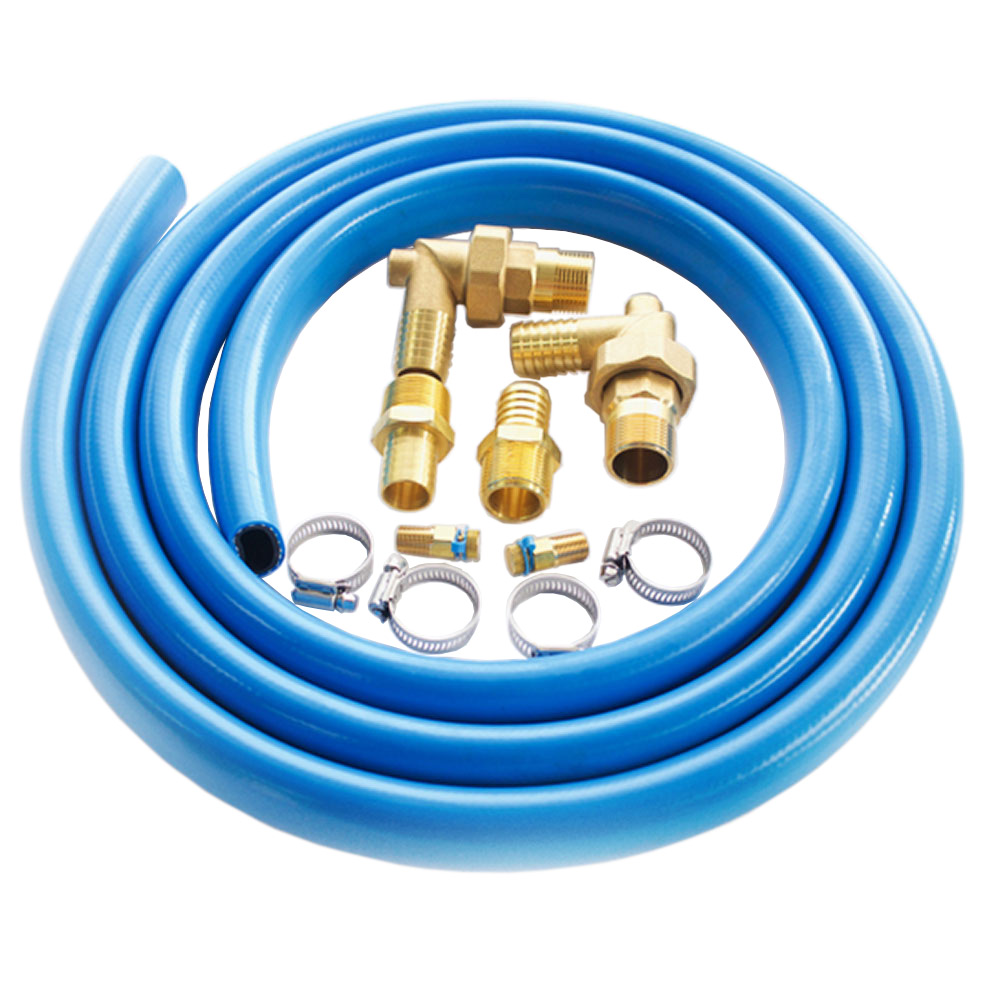

On top of all that, you also get a 12 ft hose kit with male pipe thread to barb 90 degree elbow fittings, a circuit insulated header, and a Geo-Pulse Non-Pressurized Flow Center. Not to mention that, of course, we will offer you technical support for the installation of all these components for the life of any geothermal system you buy from us!
| Model | GEOKIT-4H |
|---|---|
| California Residents | see Prop 65 WARNING |
FUSE1600750600 Specifications:
| Model | FUSE1600750600 |
|---|---|
| Material | Polyethylene |
| Weight (lbs) | 74.000000 |
| Pipe Diameter | 3/4 inch |
| Warranty | 50 Year |
HPVC1207X4S Specifications:
| Model | HPVC1207X4S |
|---|---|
| Product Height (in) | 2 |
| Header Size | 1 1/4 inch |
| Product Length (in) | 12 |
| Manifold Size | 3/4 inch |
| Product Width (in) | 16 |
| Material | PVC |
| Weight (lbs) | 5.000000 |
| Zones | 4 |
GP22K-SU10F-R2 Specifications:
| Model | GP22K-SU10F-R2 |
|---|---|
| Product Height (in) | 34 |
| Electrical Phase | 1-Phase |
| Product Length (in) | 8 |
| Product Width (in) | 15 |
| Weight (lbs) | 98.000000 |
| Pumps | 2 |
| Voltage | 240 |
| Warranty | 5 Year |
| Zones | 1 |
HK10U9012 Specifications:
| Model | HK10U9012 |
|---|---|
| Weight (lbs) | 1.000000 |
| Pipe Diameter | 1 inch |
9992102 Specifications:
| Model | 9992102 |
|---|---|
| Product Height (in) | 15 |
| Product Length (in) | 12 |
| Product Width (in) | 12 |
| Weight (lbs) | 41.710000 |
