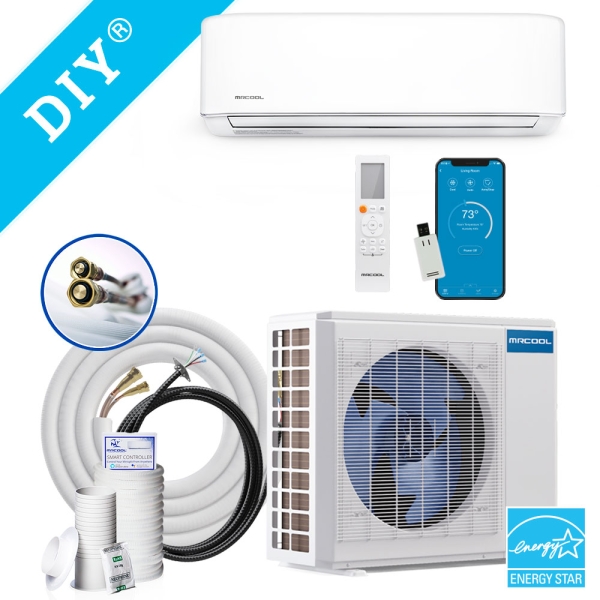

36k BTU 18 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted
Item
HA22097
Models DIY-36-HP-C-230C25, DIY-36-HP-WMAH-230C25
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
36k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240vItem: HA22093 Model: DIY-36-HP-WMAH-230C25
Qty: 1 Improve your space for ultimate comfort with the 4th Generation MrCool DIY 36k BTU 18 SEER Ductless Heat Pump Mini Split System. With 36,000 BTU capacity and heating between 1,500-1,800 square feet, this is one of the strongest systems in the MrCool DIY series. You'll be able to easily install the 2-part unit with an air handler inside your space and a compact heat pump condenser outside your home. You will need no special training, tools, or equipment to complete the install–the process is totally user friendly!
One of the ways this can be accomplished is thanks to the Quick Connect line set that comes standard with the unit. These line sets are pre-charged with R-410A refrigerant so there's no vacuum required. The eco-friendly R-410A refrigerant replaces older types that were damaging to the environment. In addition to the Quick Connect line set, the 4th Generation MrCool DIY 36k BTU 18 SEER Ductless Heat Pump Mini Split System now includes the DIYPRO Cable. This unique piece of equipment has easy crimp connectors, protects against yard tools, animals, and weather, and eliminates the need for electrical conduit while giving the unit protection and durability.
With the 4th Generation MrCool DIY 36k BTU 18 SEER Ductless Heat Pump Mini Split System, you have complete control. Utilize the included remote, the SmartHVAC app, or the Amazon Alexa or Google Assistant. The many different usage modes allow you to customize the use of the MrCool DIY Ductless Mini Split. Auto mode regulates the heating or cooling to adjust based on a set temperature. The unit will utilize heat, air, or the fan to maintain the room at the comfort level you desire.
If the power goes out, no worries! As soon as the power returns, the MrCool DIY Ductless Mini Split will automatically turn back on and begin immediately working to adjust the temperature back to your setting before the power loss. The convenient anti-mildew function ensures the handler doesn't accumulate mold and mildew due to excess condensation.
Maintenance of the MrCool DIY 4th Generation 36K BTU, 18 SEER Ductless Heat Pump is also as easy as the installation. The indoor air handler unit will conveniently alert you when the filter needs to be cleaned or replaced. It will also make sure you're aware if there is any leak of the refrigerant.
Feel confident in your investment thanks to the limited lifetime warranty in addition to the standard 7-year compressor warranty and 5-year parts warranty.
| Model | DIY-36-HP-WM-230C25 |
|---|---|
| UPC | 810035935181 |
| AHRI Number | 207339190 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency | 18 SEER |
| EER | 8.7 |
| Heat Pump Efficiency (HSPF) | 12 |
| Series | DIY |
| Zones | 1 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
DIY-36-HP-C-230C25 Specifications:
| Model | DIY-36-HP-C-230C25 |
|---|---|
| UPC | 810063868543 |
| AHRI Number | 207339190 |
| Product Height (in) | 31.89 |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Product Length (in) | 16.14 |
| Compressor | Inverter |
| Product Width (in) | 37.24 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 12 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 147.270000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-410a |
| Cooling Efficiency | 19 SEER and Above |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-36-HP-WMAH-230C25 Specifications:
| Model | DIY-36-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868550 |
| Product Height (in) | 14.25 |
| Configuration | Wall Mounted |
| Product Length (in) | 11.1 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 49.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 78.260000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
