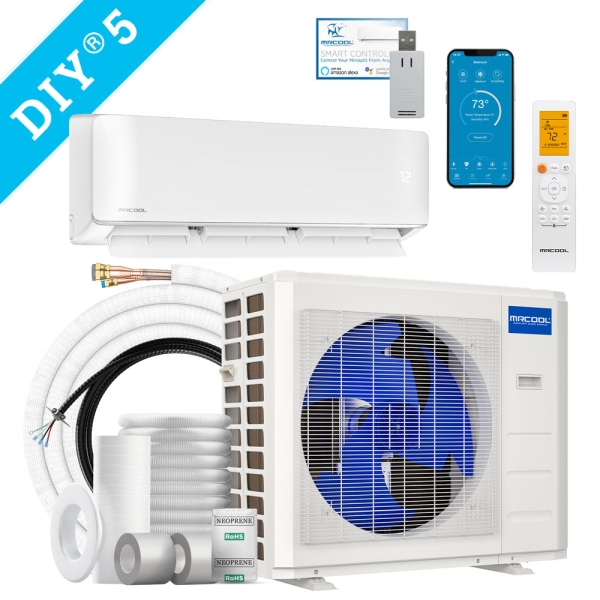

36k BTU 18 SEER2 MrCool DIY Ductless Heat Pump Split System 5th Generation - with 25 ft Line Set & 1 Year Labor Warranty
Item
HA26235
Models DIY-36-HP-C-230D25-O, DIY-36-HP-WMAH-230D25-O, DMS1Y4+000125
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.

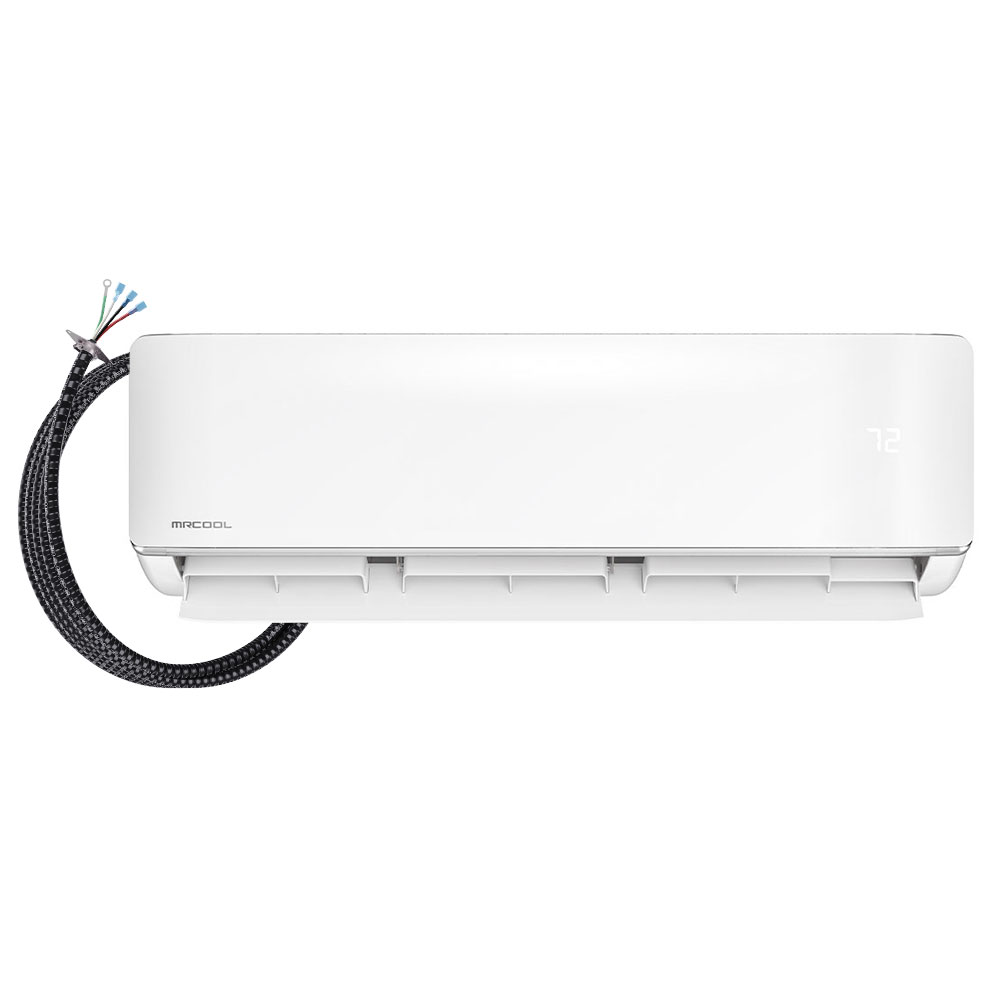

36k BTU MrCool DIY Ductless Wall Mounted Air Handler - 5th Generation 240vItem: HA26230 Model: DIY-36-HP-WMAH-230D25-O
Qty: 1
1 Year Extended Labor Warranty for Ductless Mini Split SystemItem: EF10015 Model: DMS1Y4+000125
Qty: 1
Also Consider
The next generation of comfort is here.
With a new MrCool DIY 5th Gen Energy Star Mini-Split and complimentary 1 year Extended Labor Warranty from Ingrams.
Explore the lineup.
Certified Efficiency
Live on the coast? Don't worry, our condenser features Gold Fin condensers built to resist long term corrosion.
Louver Position Memory
The air handler's horizontal louver will automatically reset to the same position that was set the last time the unit was powered on.
SmartPhone App
Control your MRCOOL® DIY® anywhere with your Apple or Android smart device and an internet connection.
Follow Me Function
Keep the included remote close by, and MRCOOL DIY® will track the air temperature around you to ensure maximum comfort.
Operation in Extremes.
Temperature Range
Easily control the temperature of your space from your phone or with the included remote control. The temperature adapts based on where you are in the room.
24-hour Comfort
The MrCool DIY has 2, 3, 4, and 5 zone options, the best warranties in the business, even better efficiency ratings, and a new Armored Pro Cable.
DIY made easy.
No refrigerant? No problem. With our patented, pre-charged quick connect line sets you'll be able to install your MRCOOL® DIY® without needing specialized training or expensive tools.
Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Protect your Purchase
Warranty Programs
Each unit comes backed with a standard 5-year warranty on replacement parts and a 7-year warranty on the compressor. For even greater protection, upgrade to the MrCool Care Kit Program and enjoy extended limited lifetime system replacement —because long-term comfort shouldn’t come with surprises. And when you purchase through IWAE, you get an additional 1-year extended labor warranty included at no extra cost, giving you even more value and coverage from day one.
Limited Warranty
New! Courtesy of Ingrams Water & Air, this 5th Generation MrCool DIY Mini Split comes with a complimentary 1 Year Extended Labor Warranty, with up to 6 additional years available as an upgrade for a total of 7 years warranty on labor.
Improve your space for ultimate comfort with the 5th Generation MrCool DIY Mini Split 36k BTU 18 SEER2 Ductless Heat Pump & AC System. With 36,000 BTU capacity and heating between 1,500-1,800 square feet, this is one of the strongest systems in the MrCool DIY series. You'll be able to easily install the 2-part unit with an air handler inside your space and a compact heat pump condenser outside your home. You will need no special training, tools, or equipment to complete the install–the process is totally user friendly!
One of the ways this can be accomplished is thanks to the DIY Quick Connect line set that comes standard with the unit. These line sets are pre-charged with R-454B refrigerant so there's no vacuum required. The eco-friendly R-454B refrigerant replaces older types that were damaging to the environment. In addition to the DIY Quick Connect line set, the 5th Generation MrCool DIY Mini Split 36k BTU 18 SEER2 Ductless Heat Pump & AC System now includes the DIYPRO Cable. This unique piece of equipment has easy crimp connectors, protects against yard tools, animals, and weather, and eliminates the need for electrical conduit while giving the unit protection and durability.
With the 5th Generation MrCool DIY Mini Split 36k BTU 18 SEER2 Ductless Heat Pump & AC System, you have complete control. Utilize the included remote, the SmartHVAC app, or the Amazon Alexa or Google Assistant. The many different usage modes allow you to customize the use of the MrCool DIY Ductless Mini Split. Auto mode regulates the heating or cooling to adjust based on a set temperature. The unit will utilize heat, air, or the fan to maintain the room at the comfort level you desire.
If the power goes out, no worries! As soon as the power returns, the MrCool DIY Ductless Mini Split will automatically turn back on and begin immediately working to adjust the temperature back to your setting before the power loss. The convenient anti-mildew function ensures the handler doesn't accumulate mold and mildew due to excess condensation.
Maintenance of the 5th Generation MrCool DIY Mini Split 36k BTU 18 SEER2 Ductless Heat Pump & AC System is also as easy as the installation. The indoor air handler unit will conveniently alert you when the filter needs to be cleaned or replaced. It will also make sure you're aware if there is any leak of the refrigerant.
Feel confident in your investment thanks to the limited lifetime warranty in addition to the standard 7-year compressor warranty and 5-year parts warranty.
| Model | DIY-36-HP-WM-230D25-O |
|---|---|
| UPC | 840255588577 |
| AHRI Number | 216032548 |
| Configuration | Wall Mounted |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 18 |
| Heat Pump Efficiency (HSPF2) | 11.5 |
| Series | DIY |
| Zones | 1 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |

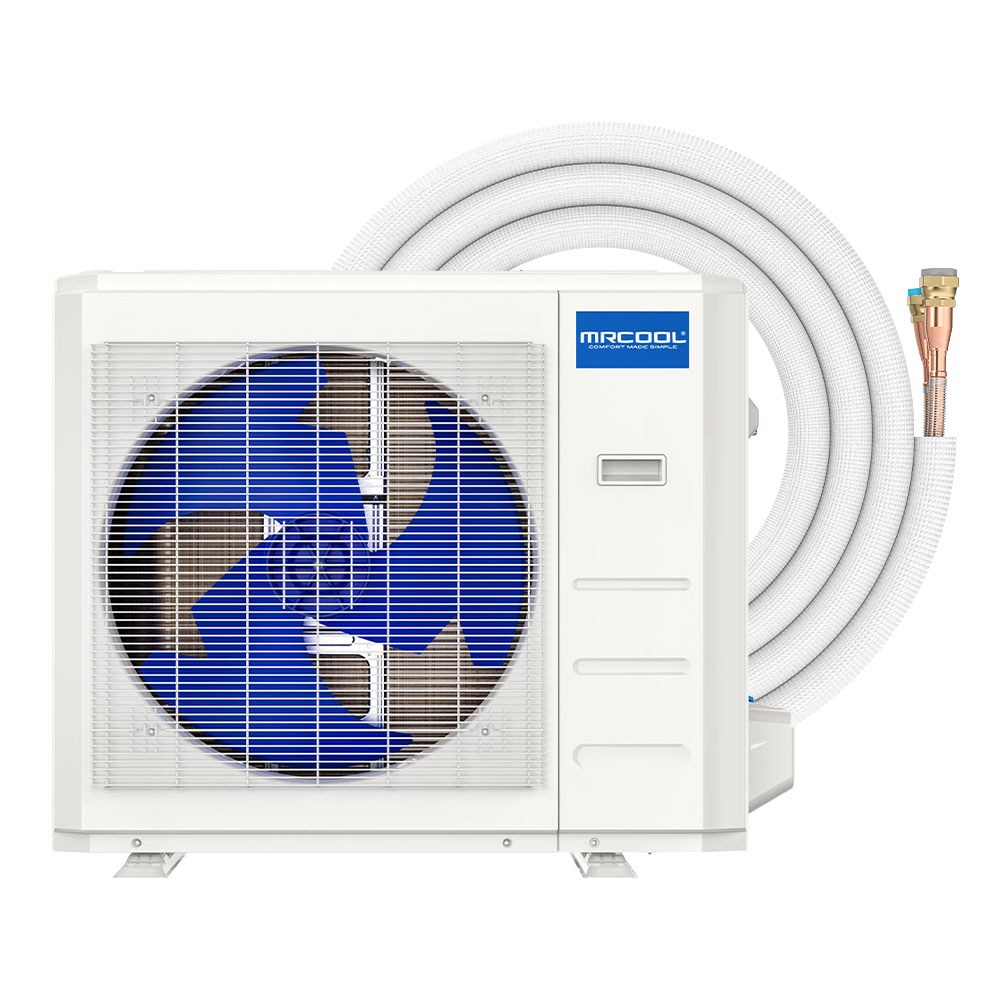

DIY-36-HP-C-230D25-O Specifications:
| Model | DIY-36-HP-C-230D25-O |
|---|---|
| UPC | 840255586986 |
| AHRI Number | 216032548 |
| Product Height (in) | 31.89 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 16.14 |
| Compressor | Inverter |
| Product Width (in) | 37.24 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 183.420000 |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 18 |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-36-HP-WMAH-230D25-O Specifications:
| Model | DIY-36-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587068 |
| Product Height (in) | 14.25 |
| Configuration | Wall Mounted |
| Product Length (in) | 11.1 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 49.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 70.990000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DMS1Y4+000125 Specifications:
| Weight (lbs) | 0.000000 |
|---|---|
| Model | DMS1Y4+000125 |
