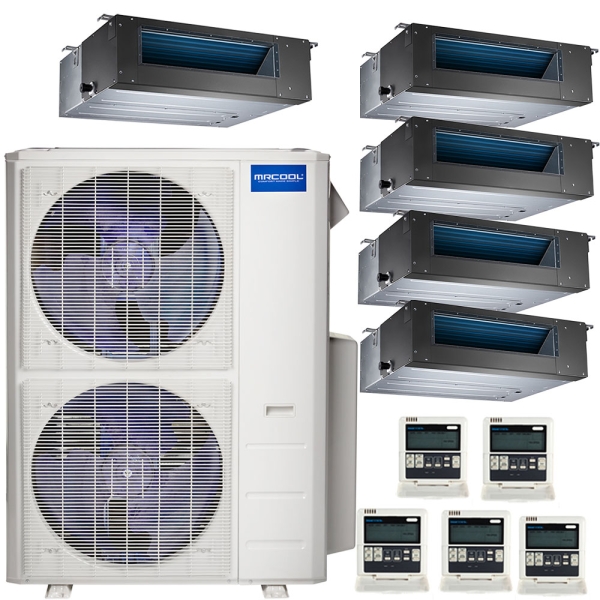

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 5 Zone Concealed Duct - 9k+9k+9k+9k+12k

Item: HA11815
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-12HP-230
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 5 Zone Concealed Duct - 9k+9k+9k+9k+12k Zoom

Photo Gallery

Related Videos

You can't recapture all the energy that window units and baseboard heaters waste, but thanks to MRCOOL, you can have an efficient system that provides even better comfort. This 48k BTU, 22.4 SEER Olympus Heat Pump Split System allows you to heat and cool five distinct comfort zones. In this configuration, a 12k concealed duct air handler covers approximately 500 sq ft while four 9k concealed units handle around 350 sq ft.

Availability: Out of stock

As low as: $7,493.00

Price as configured: $7,493.00

Call for availability

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 4
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1

Overview

You can't recapture all the energy that window units and baseboard heaters waste, but thanks to MRCOOL, you can have an efficient system that provides even better comfort. This 48k BTU, 22.4 SEER Olympus Heat Pump Split System allows you to heat and cool five distinct comfort zones. In this configuration, a 12k concealed duct air handler covers approximately 500 sq ft while four 9k concealed units handle around 350 sq ft.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-12HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 5
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I’m trying to understand the installation of these ceiling units. Let say for instance I was using this system for the 2nd floor of a two story home. Does each unit mount in the attic above the ceiling so it’s serviceable and elevated for condensate drains and then is there a short 90° duct used for the ceiling register?
A couple of questions.
Does this unit have remote distribution block or do all line sets run back to compressor?
If it is a remote block is it included?
Are line sets included?
If i read correctly the indoor units are calling for 220V with 20 amp protection, is this necessary with this only having a fan and sump pump? is a 120v version available?
I live in Wichita KS do you have someone here to install 5 zone concealed? And how much ballpark figure is that?
Is there a maximum length that the line set can reach for this split system? Would 60' be too far?
Is this system suitable for an 1800 sq ft home in a winter that last year reached -35 degrees Fahrenheit? (for a few days).

Does this system have a warranty?
Can cassettes be mounted in wall
We have a four bedroom approximately 2100 square-foot house in South Florida, specifically Palm Beach Gardens , that currently has a single 4 ton package unit located on the roof. We are looking to replace the package unit because it is about 15 years old, and is very inefficient. The ductwork is in bad shape, and the attic is small making the repair or replacement of the ductwork very difficult, if not impossible in some spots. I very much want to get the air conditioning unit off the roof. Most contractors that of been out the house have been unmotivated to do the job due to the difficult attic conditions, and my wife's pushback when it comes to giving up a closet within the house

This Mr. cool system sounds like an ideal solution to me. Please briefly explain the installation. Confirm there is no ductwork and that the units are ceiling mounted. Are the ceiling mounted units noisy? What sort of height is needed above the ceiling? Is there one Freon loop as I suspect? Can a licensed AC guy put Mr. cool system in, or do we need to get someone trained by your company? What are the electrical requirements for an installation? Does a single condenser service each of the five indoor air handling units? Can a conventional four-ton condenser be used, or is there some special condenser requirement? If so do you sell the condenser too? How long has your company been in business? Have any Mr. cool units been successfully installed in Florida, or other warm climates?

I very much appreciate your responding to these questions.

Best regards
Neil Jetter
