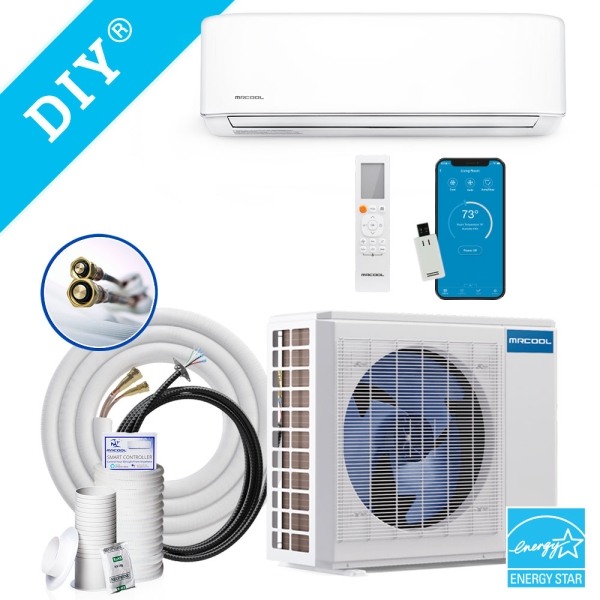

24k BTU 20.5 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted (S&D)
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Contact an expert now.
This scratch & dent 24k BTU 20.5 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted (S&D) gives you the ability to customize each item within the system by condition. This allows you to customize the price to fit your budget.
Our condition rating scale is classified as follows:
- New: Items marked as new are brand new equipment from the factory in its original packaging. There is no damage to equipment marked as new.
- Grade A (Very Good): A "Very Good" classification means the item may have some small scrapes, cosmetic blemishes, dents, or dings that should only be visible upon close inspection of the product.
- Grade B (Good): A "Good" classification means the item has minor scrapes, cosmetic blemishes, dents, or dings that are visible from a distance upon inspection of the product.
- Grade C (Fair): A "Fair" classification means the item has moderate to major scrapes, cosmetic blemishes, dents, or dings that are clearly visible upon inspection of the product.
- Grade D (Acceptable): An "Acceptable" classification means the item has major scrapes, cosmetic blemishes, dents, or dings that are clearly visible upon inspection of the product.
All damage grade items may arrive with damaged packaging or be repackaged.
All items selected in this 24k BTU 20.5 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted (S&D), regardless of condition rating, are in good working condition and should be free from mechanical defects.
The photos shown are representative of the damage you may see for each grade of equipment available to choose from. If you'd like more information on the included products, please call us to speak with a customer service representative. They will be happy to help.
| Model | DIY-24-HP-WM-230C25 |
|---|---|
| UPC | 810035935174 |
| AHRI Number | 207339189 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 12.5 |
| Heat Pump Efficiency (HSPF) | 10.5 |
| Series | DIY |
| Zones | 1 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
DIY-24-HP-C-230C25 Specifications:
| Model | DIY-24-HP-C-230C25 |
|---|---|
| UPC | 810063868529 |
| Product Height (in) | 31.89 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 16.14 |
| Compressor | Inverter |
| Product Width (in) | 37.24 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 10.5 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 125.220000 |
| Primary Heating Capacity | 20,001 - 25,000 BTU |
| Cooling Efficiency | 19 SEER and Above |
| Series | DIY |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-24-HP-WMAH-230C25 Specifications:
| Model | DIY-24-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868536 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 60.190000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY16-3858 Specifications:
| Model | DIY16-3858 |
|---|---|
| UPC | 810035931022 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 10.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-3858 Specifications:
| Model | DIY25-3858 |
|---|---|
| UPC | 810035931053 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 15.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
Shipping & Delivery
Effective and efficient shipping practices are critical for an online business. That’s why we try our best to ship products within 24-36 hours of receiving your order. It’s why we have no hidden fees, send you tracking information as soon as we receive it, and work with our freight carriers to have units delivered as quickly as possible once they leave our warehouse. If you ever have any questions about shipping, call us at 1-270-575-9595. Notice that shipping outside of the continental US require an additional shipping fee.
Shipping Damage & Missing Items
Unpack and inspect ALL packages for damaged or missing items before accepting your shipment. If any damage is found, note this on the delivery receipt. Although Ingrams Water & Air Equipment is NOT responsible for shipping damage, we can assist with filing a claim against the shipping carrier to cover the cost of damages. Any damages or missing items have to be noted on the delivery receipt prior to signing for and accepting your shipment in order to file a claim. Do not let the delivery driver rush you. It is your right to inspect each and every item. If the delivery driver refuses to wait or doesn't allow you to inspect your items prior to signing, please call us immediately at 1-270-575-9595 and our claims department can offer assistance.
