HVAC Zoning Explained: Single- vs. Multi-Zone Systems

Have you ever fought with a family member over the thermostat temperature? Well, those days are over, thanks to HVAC zoning.

A zoned HVAC system is the prime solution for personalized temperature control, as it lets you adjust the temperatures in various areas of your home. However, there are different types of HVAC zoning systems, and you should choose one that accommodates your needs.

How does a dual-zone mini-split work? What about its single-zoned counterpart? In this guide to HVAC zone cooling, you'll learn how single- and multi-zone HVAC systems work, along with some essential considerations when choosing the right type for your home.

What Is HVAC Zoning?

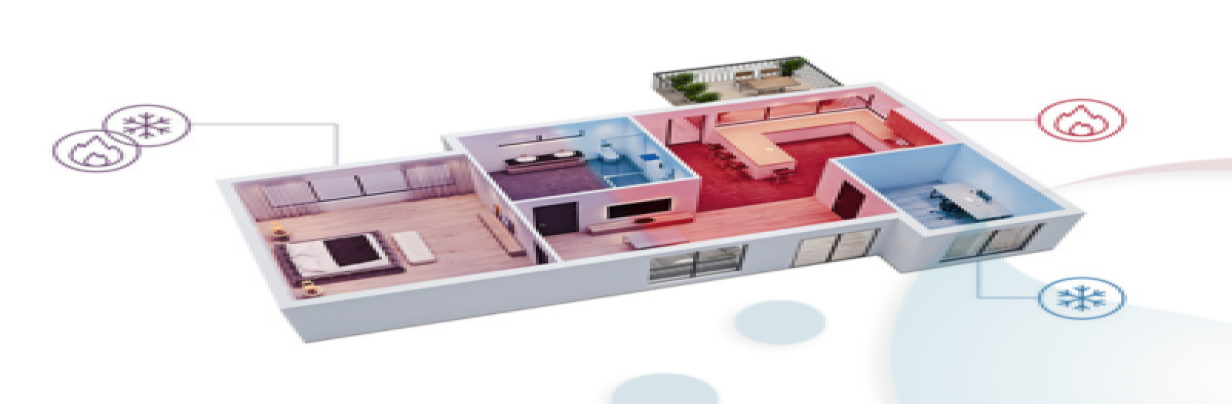

An HVAC zoning system splits your home into multiple sections or "zones." A different thermostat controls each zone. This design lets you adjust each room to your preferred temperature. As a result, you achieve optimal thermal comfort and energy savings.

HVAC zoning uses dampers in the duct system that regulate and reroute air to different parts of your home. These dampers are nestled between the round supply duct and the main trunk line. They act as valves, closing parts of your ductwork while keeping others open.

When a room needs more airflow, the dampers open to let hot or cool air pass through. Then, they close once the zone has reached the desired temperature. These components work together to provide customized temperatures throughout your home. They do the hard lifting, and for you, it's as simple as hitting buttons on a thermostat.

What Are Ductless HVAC Zoning Systems?

HVAC systems can also be ductless, meaning they heat and cool your home without a duct system. Ductless systems control the temperature in a single room or area rather than the entire house.

A ductless HVAC system has one indoor and one outdoor unit connected via electrical wiring and refrigerant tubing. The indoor unit is usually mounted to the wall, bringing warm or cool air directly into your space without requiring ductwork.

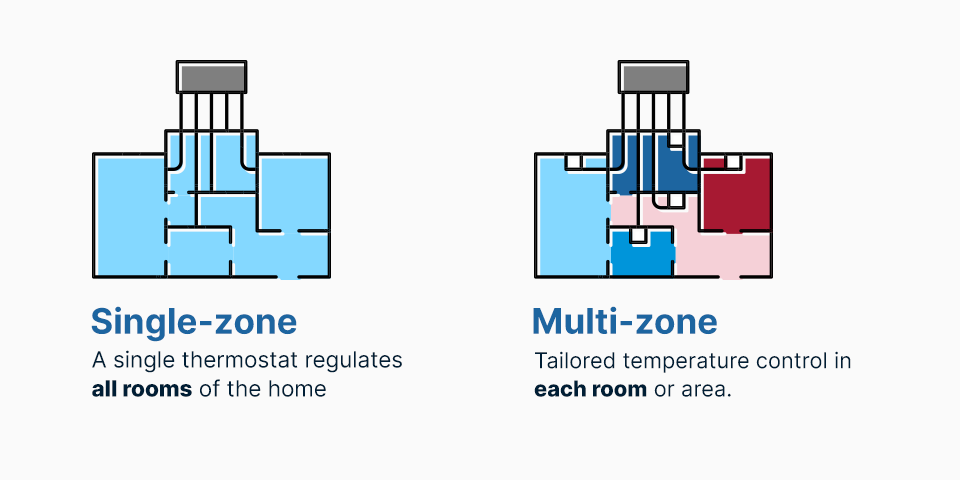

Single-Zone vs. Multi-Zone HVAC Systems: What's the Difference?

It's important to note that there are two types of zoned HVAC systems — single-zone and multi-zone. Let's dive into their differences so you can see how they operate.

How Do Single-Zone Mini-Splits Work?

A single-zone HVAC system has one condenser and one air handler. Most residential buildings incorporate single-zone HVAC systems, meaning a single thermostat regulates all rooms of the home. A single-zone mini-split is designed to serve a specific room or area of your home rather than the entire house. It can help reduce energy usage, save money and improve efficiency.

A single-zone mini-split is ideal if you're adding a room to your home. You don't have to take on an expensive remodeling project to implement a single-zone mini-split. For example, if you're converting your basement or attic, you don't need to redesign the existing system to accommodate your upgraded space.

Since a single-zone mini-split contains one outdoor unit for each indoor unit, you'll need to install an outdoor unit for each zone you want to cool or heat.

How Do Multi-Zone Mini-Splits Work?

Contrary to single-zone mini-splits, a multi-zone mini-split system serves your entire home, providing tailored temperature control in each room or area. There are multiple thermostats for different rooms or zones. One condenser manages several indoor handlers in a multi-zone setup. This makes it a stellar option for multi-story homes.

Generally, one multi-zone mini-split condenser can handle up to five indoor units, which is sufficient for an average household. In other words, you can install an indoor air handler for up to five rooms.

The number of zones in your home you want to heat or cool will determine the number of indoor units you'll connect to the condenser. Your home's occupants can seamlessly control their own temperatures, boosting comfort and happiness for all.

How Do You Choose the Right System?

Trying to decide whether a single- or multi-zone HVAC system is right for you? Here are a few factors to mull over when weighing your options.

1. Efficiency and Cost

Typically, single-zone HVAC systems have lower initial costs than their multi-zone counterparts. They also have lower installation fees because it's easier to install a single unit than multiple indoor units.

What's more, single-zone systems are often less expensive to run than other HVAC systems. If you want to cool a smaller space at an affordable price, a single-zone HVAC system may be right up your alley.

However, a multi-zone system may be the more cost-effective avenue if:

• You're building a new home.
• You're replacing a heating or cooling system.
• Your existing heating system is hydronic and doesn't include any ductwork.
• You have a household of people with a wide range of temperature preferences.

A multi-zone HVAC system saves energy and money by not heating or cooling unused areas of your home. It also requires fewer outdoor units than installing several single-zone mini-splits.

2. Installation and Retrofitting

Both single- and multi-zone installations are relatively simple. However, a multi-zone system may require more time and planning as you're accounting for different units and home areas.

You should also consider whether you're retrofitting an existing heating and cooling system or starting from scratch. Installing an HVAC zoning system in new construction is easier and more affordable than adding one to your existing space.

3. Comfort and Customization

Think about the temperature preferences of everyone in your home. If you'd prefer more customization, a multi-zone system offers total heating and cooling control throughout your household. Meanwhile, a single-zone setup is better suited to small homes, home additions and households where everyone agrees on the thermostat settings.

4. Climate

What's that we hear? It's Mother Nature knocking at your door. Yes, climate and seasonal variations can also factor into your decision.

For instance, a multi-zone system may better meet your needs if your area sees significant temperature fluctuations year-round. A multi-zone system lets you control the temperature in different home areas, which is certainly a perk during those freezing winters and hot summers.

However, a single-zone system might make sense for milder or more consistent climates. A single-zone system heats or cools your entire home without the complexity of several zones. Naturally, you experience more energy efficiency and lower maintenance costs.

5. Maintenance

Zoned HVAC systems can last 10-20 years with adequate maintenance. However, it's worth noting that the more intricate your zoning system is, the more involved its maintenance will be.

For example, the more zones you have, the more air filter replacements you'll need. Likewise, you'll need to check the thermostat for each zone, ensure it's working properly and replace or calibrate it as needed.

While you can ponder these factors on your own, we also recommend a professional consultation for personalized recommendations. A professional can evaluate your home and unique heating and cooling needs, helping you determine which system your home will benefit from most.
