Overview

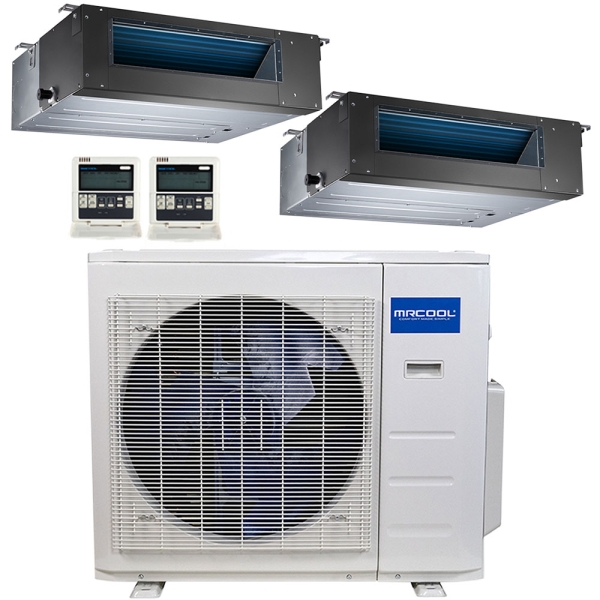

Hate the look of duct work, but really want a heating and cooling solution? Take a look at this concealed operating design by MRCOOL! The 21,000 BTU Heat pump split systems offers all of the benefits of ductless technology, and you can have it installed so the system is not exposed. It does involve the removal of drywall or installation of bulkheads, if your home is already constructed. The concealed duct system requires a return opening and open discharge register to function. So instead of seeing the unit, you will have a grill and a register visible as a trade off, making it similar to a central air system and ductless wall mounted units alike.
Not only will this system be hidden, but you will be able to take advantage of inverter technology that should keep your utility bills to a minimum. As this package comes with 2 concealed indoor units, modulating compressors can meet the demand when only one system is running or two are running. If only one unit is calling, the compressor won’t work as hard. Conventional compressors only turn on and off, so you know you’ll be getting energy savings with the Inverter compressor. Not looking for a concealed unit that has 2 zone units? Take a look at the various options in the Olympus series as they have many ductless options, for large or small projects, to fit any budget!
With this MRCOOL Olympus Ductless Heat Pump Split System, advanced inverter variable speed action adjusts system output to demand, saving wasted energy, and wasted energy dollars. With R-410A refrigerant and high efficiency compressor, the 27k MULTI3-27HP230V1 condenser operates at 23 SEER. Inside, 2-zone comfort is provided by a 12k concealed duct air handler and a 9k unit.
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
Model | MULTI3-27HP230V1,DUCT-09HP-230,DUCT-12HP-230 |
---|---|
UPC | 856536005848 |
AHRI Number | 8977708 |
Bundle Avg Coverage Area | 750 - 900 Sq Ft |
Bundle Cooling Capacity | 1.5 Ton |
Bundle Cooling Efficiency | 19 SEER and Above |
EER | 12.5 |
Heat Pump Efficiency (HSPF) | 10.3 |
Series | Olympus |
Zones | 2 |
Region Compatibility | Nationwide |
Popular Applications | Apartment, Duplex, Hotel Room, Office, Single Family Home |
California Residents | see Prop 65 WARNING |
MULTI3-27HP230V1 Specifications:
Model | MULTI3-27HP230V1 |
---|---|
UPC | 856536005848 |
Avg Coverage Area | 1,000 - 1,200 Sq Ft |
Compressor | Inverter |
Cooling Capacity | 2 Ton |
Electrical Phase | 1-Phase |
Heat Pump Efficiency (HSPF) | 10.3 |
Line Set Connection Type | Flared |
Liquid Line Size | 1/4 inch |
Max Overcurrent Protection | 35 amps |
Primary Heating Capacity | 25,001 - 30,000 BTU |
Product Height (in) | 32 |
Product Length (in) | 16 |
Product Width (in) | 37 |
Cooling Efficiency | 19 SEER and Above |
Series | Olympus |
System Application Type | Ductless Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts, 7 Year Compressor |
Weight (lbs) | 150.0000 |
Region Compatibility | Nationwide |
DUCT-09HP-230 Specifications:
Model | DUCT-09HP-230 |
---|---|
UPC | 853962006517 |
Air Flow Direction | Horizontal |
Configuration | Ceiling Mounted |
Blower Motor | Variable Speed |
Cooling Capacity | Less than 1 Ton |
Electrical Phase | 1-Phase |
Heat Strip Compatibility | NA |
Line Set Connection Type | Flared |
Liquid Line Size | 1/4 inch |
Max Overcurrent Protection | 15 amps |
Product Height (in) | 8 |
Product Length (in) | 25 |
Product Width (in) | 28 |
Series | Olympus |
Suction Line Size | 3/8 inch |
System Application Type | Ductless Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts |
Weight (lbs) | 40.0000 |
DUCT-12HP-230 Specifications:
Model | DUCT-12HP-230 |
---|---|
UPC | 853962006524 |
Air Flow Direction | Horizontal |
Configuration | Ceiling Mounted |
Blower Motor | Variable Speed |
Cooling Capacity | 1 Ton |
Electrical Phase | 1-Phase |
Heat Strip Compatibility | NA |
Line Set Connection Type | Flared |
Liquid Line Size | 1/4 inch |
Max Overcurrent Protection | 15 amps |
Product Height (in) | 8 |
Product Length (in) | 25 |
Product Width (in) | 28 |
Series | Olympus |
Suction Line Size | 1/2 inch |
System Application Type | Ductless Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts |
Weight (lbs) | 40.0000 |
