24k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 12k+12k

Item: HA11732
Models: MULTI3-27HP230V1, DUCT-12HP-230
Condition: New

24k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 12k+12k Zoom

Photo Gallery

Related Videos

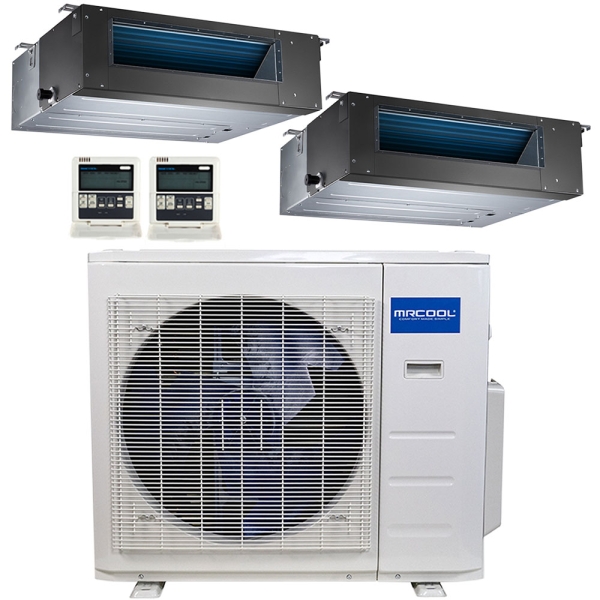

If you're used to window unit air conditioners and electric baseboard heaters, you're about to get an upgrade. The 24k BTU 23 SEER Olympus Ductless Heat Pump Split System by MRCOOL features two MRCOOL concealed air handlers, each with its own blower and coil. Every 12k air handler covers a room or area with pinpoint control features like Louver Position Memory and Auto Swing. The compact, corrosion-resistant MULTI3-27HP230V1 condenser offers 24 BTU of power with dedicated connections to each indoor unit.

Availability: In stock

As low as: $3,560.00

Price as configured: $3,560.00

Ingram Financing

27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone 27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone Item: HA11046 Model: MULTI3-27HP230V1 Qty: 1

* Required Fields

Ships Within 1-2 Business Days

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone 27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone Item: HA11046 Model: MULTI3-27HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2

Overview

Is it always too hot and stuffy in your office conference room? Or is it frigid in the winter and sweltering in the summer? MRCOOL has a solution that will keep your employees focused on work instead of the temperature in the room around them.

The MRCOOL Olympus concealed duct 2 zone heat pump system can be wired in parallel and operate as one system. Just make sure this package is the right fit for your square footage. A 12,000 BTU ductless unit can serve a space between 450 and 550 square feet of your space. Although this package comes with two 12,000 BTU units, so you can install them in a room from 900 to 1100 square feet. These units have been designed to be hidden behind drywall, so you’ll be sure to keep your meeting room sleek and strictly business!

Have employees that are constantly sniffly, sneezing, and complaining about their allergies? Did you know that ductless, or concealed duct, units offer instant filtration that can remove dust and pollen from the air your breathing? Keep everyone focused on the task at hand, and install this package to your meeting room! Bring MRCOOL’s Olympus series to your office, and take advantage of everything they have to offer!

If you're used to window unit air conditioners and electric baseboard heaters, you're about to get an upgrade. The 24k BTU 23 SEER Olympus Ductless Heat Pump Split System by MRCOOL features two MRCOOL concealed air handlers, each with its own blower and coil. Every 12k air handler covers a room or area with pinpoint control features like Louver Position Memory and Auto Swing. The compact, corrosion-resistant MULTI3-27HP230V1 condenser offers 24 BTU of power with dedicated connections to each indoor unit.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI227HP230RD03
UPC 856536005848
AHRI Number 8977708
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.3
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI3-27HP230V1 Specifications:

Model MULTI3-27HP230V1
UPC 856536005848
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.3
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 25,001 - 30,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 150.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000
