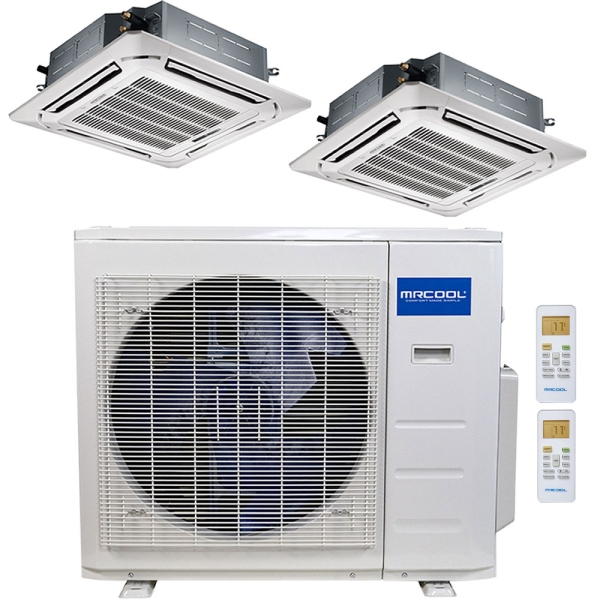

27k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Ceiling cassette - 12k+18k

Item: HA11740
Models: MULTI3-27HP230V1, CASSETTE12HP-230-P, CASSETTE18HP-230-P
Condition: New

27k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Ceiling cassette - 12k+18k Zoom

Photo Gallery

With this 30k BTU 23 SEER Olympus Ductless Heat Pump Split System from MRCOOL, two ceiling casette air handlers heat and cool dual zones independently, saving you both energy and money. The 12k unit handles a 500 sq ft space. The bigger job goes to the 18k air handler keeping your space just the temperature you want.

Availability: Out of stock

As low as: $3,650.00

Price as configured: $3,650.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 1
18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11054 Model: CASSETTE18HP-230-P Qty: 1
MrCool
Up to 40% Off - Call for Info

Click To Sign Up Now!

What's Included

What customers are saying...



Overview

Are you planning to increase the size of your home with an addition, but don’t know what you’ll do about heating and air?

MRCOOL has a solution for you! This Olympus 2 zone ceiling cassette system is perfect for your construction project. Specifically designed not to disrupt your rooms decor, these units are installed in your ceiling space, out of site and out of mind. Offering ceiling cassettes for two different zones, the 12,000 BTU cassette is good for square footage around 450 square feet while the 18,000 BTU cassette is good for spaces around 700 square feet. If these sizes don’t fit your home addition, you can find the perfect fit within MRCOOL Olympus series’ large selection.

Central air systems are sized according to your homes square footage and adding square footage to your home could mean that your central air system isn’t sized for it. This can result in longer operating times without even getting to your desired temperature. Why not avoid the problem and take advantage of high efficiency zone technology that allows you to turn the system on and off as you need it? Take advantage of affordable pricing combined with high efficiency that will save you money time and time again. You may be qualified for a rebate for installing efficient products, so check your local jurisdiction to continue your savings on high efficiency products like this one.

With this 30k BTU 23 SEER Olympus Ductless Heat Pump Split System from MRCOOL, two ceiling casette air handlers heat and cool dual zones independently, saving you both energy and money. The 12k unit handles a 500 sq ft space. The bigger job goes to the 18k air handler keeping your space just the temperature you want.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI227HP230CC01
UPC 856536005848
AHRI Number 8977708
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.3
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI3-27HP230V1 Specifications:

Model MULTI3-27HP230V1
UPC 856536005848
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.3
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 25,001 - 30,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 150.0000
Region Compatibility Nationwide

CASSETTE12HP-230-P Specifications:

Model CASSETTE12HP-230-P
UPC 810512030453
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 35.0000

CASSETTE18HP-230-P Specifications:

Model CASSETTE18HP-230-P
UPC 810512030460
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000
