Overview
If your home seems to never properly warm no matter how high your HVAC system is set, the Olympus system makes a great solution for any room in your home! Although there are many factors like wall insulation and leaky windows that might be keeping your room cool during the winter, you can at least stay warm and have piece of mind with this efficient, ductless solution.
MRCOOL designed this system to accommodate two rooms easily, connecting to only one condenser. The 27,000 BTU 23 SEER ceiling cassette package brings heating in the winter and cooling in the summer. This is done through heat pump technology which allows you to switch the rotation of the refrigerant flow when the seasons change. Turning your source of heating into a source of cooling!
Each cassette can provide comfort to a room that is from 700 to 1000 square feet in size. The benefits of having a cassette over a wall mounted unit is mostly the aesthetics if you don’t want to disrupt the flow of your wall space. The cassette is an option that is installed in your ceiling space. Another advantage of having a cassette is you get direct overhead cooling. As low temperature tends to be closer to the ground, you will feel the effects quicker coming directly from above you. Don’t want any visible unit in your ceiling or wall? Take a look at MrCool’s large variety of concealed duct units that can be easily installed behind drywall.

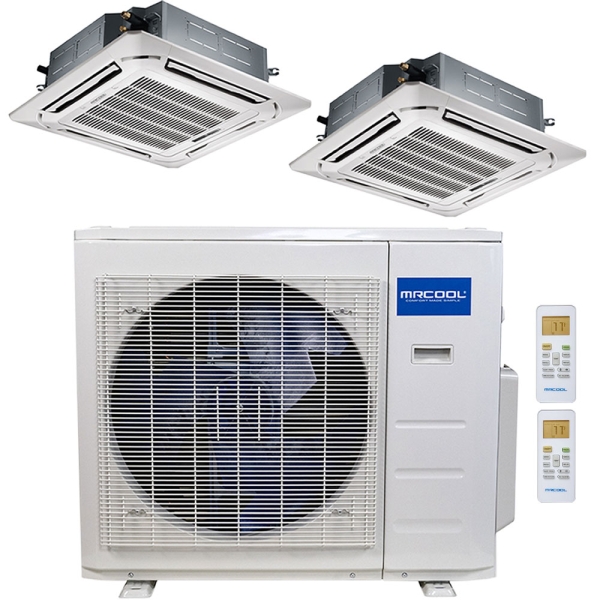

When you choose a 2-zone MRCOOL Olympus Ductless Heat Pump Split System, you decide how you want your airflow handled. In this system, two 18k cassette-style air handlers offer you an advanced range of featues like Auto Swing and Louver Position Memory. Panel mounts are included. Outside, the MRCOOL MULTI3-27HP230V1 condenser achieves a 23 SEER thanks to chlorine-free R-410A refrigerant, a high performance compressor, and leak detection technology.
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
Model | MULTI227HP230CC02 |
---|---|
UPC | 856536005848 |
AHRI Number | 8977708 |
Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
Bundle Cooling Capacity | 2 Ton |
Bundle Cooling Efficiency | 19 SEER and Above |
EER | 12.5 |
Heat Pump Efficiency (HSPF) | 10.3 |
Series | Olympus |
Zones | 2 |
Region Compatibility | Nationwide |
Popular Applications | Apartment, Duplex, Hotel Room, Office, Single Family Home |
California Residents | see Prop 65 WARNING |
MULTI3-27HP230V1 Specifications:
Model | MULTI3-27HP230V1 |
---|---|
UPC | 856536005848 |
Avg Coverage Area | 1,000 - 1,200 Sq Ft |
Compressor | Inverter |
Cooling Capacity | 2 Ton |
Electrical Phase | 1-Phase |
Heat Pump Efficiency (HSPF) | 10.3 |
Line Set Connection Type | Flared |
Liquid Line Size | 1/4 inch |
Max Overcurrent Protection | 35 amps |
Primary Heating Capacity | 25,001 - 30,000 BTU |
Product Height (in) | 32 |
Product Length (in) | 16 |
Product Width (in) | 37 |
Cooling Efficiency | 19 SEER and Above |
Series | Olympus |
System Application Type | Ductless Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts, 7 Year Compressor |
Weight (lbs) | 150.0000 |
Region Compatibility | Nationwide |
CASSETTE18HP-230-P Specifications:
Model | CASSETTE18HP-230-P |
---|---|
UPC | 810512030460 |
Air Flow Direction | Downflow |
Configuration | Ceiling Cassette |
Blower Motor | Variable Speed |
Cooling Capacity | 1.5 Ton |
Electrical Phase | 1-Phase |
Heat Strip Compatibility | NA |
Line Set Connection Type | Flared |
Liquid Line Size | 1/4 inch |
Max Overcurrent Protection | 15 amps |
Product Height (in) | 10 |
Product Length (in) | 22 |
Product Width (in) | 22 |
Series | Olympus |
Suction Line Size | 1/2 inch |
System Application Type | Ductless Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts |
Weight (lbs) | 40.0000 |
