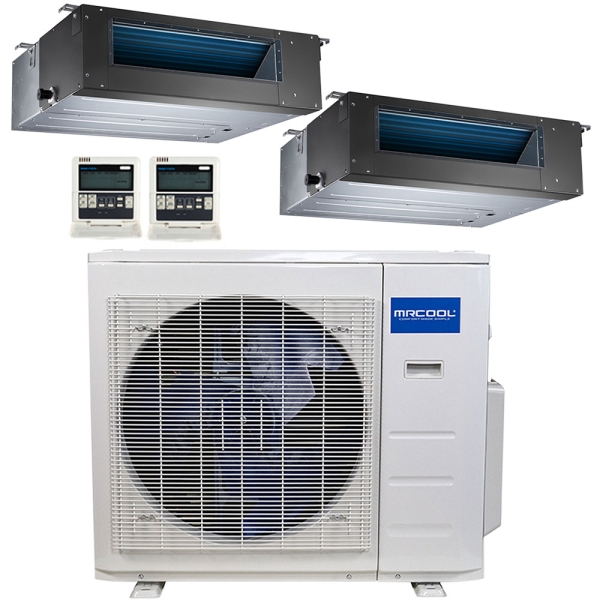

27k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 12k+18k

Item: HA11744
Models: MULTI3-27HP230V1, DUCT-12HP-230, DUCT-18HP-230
Condition: New

27k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 12k+18k Zoom

Photo Gallery

Related Videos

Did you know a ducted split system can expose you to 35% energy leakage? The 30k BTU 23 SEER Olympus Ductless Heat Pump Split System from MRCOOL can get your energy investment back on track with an energy-wise MULTI3-27HP230V1 condenser. Two concealed duct air handlers to pinpoint airflow when and where you need it. The 18k unit covers 750 sq ft while the 12k covers 500 sq ft.

Availability: On backorder

As low as: $3,645.00

Price as configured: $3,645.00

Ingram Financing

27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone 27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone Item: HA11046 Model: MULTI3-27HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1

* Required Fields

Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone 27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone Item: HA11046 Model: MULTI3-27HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

Are you a contractor looking for heating and cooling products that are reliable and affordable? Look to MRCOOL for all of your business needs. The Olympus series carries a large number of products that will fit any type of job. Not only that, you are provided with nearly everything you need to get the job done. This 2 zone concealed duct package includes wired controllers, concealed units, pre insulated lineset, condenser and drain joint.

Backed by a great parts and compressor warranty, MRCOOL provides you with all you need to deliver quality on your next install. The concealed duct design is great for a client who wants a ductless heat pump unit, but doesn't want an exposed wall mounted unit. The concealed duct system can be installed in ceiling space if there's room for it or you can build a bulkhead around it, to keep it hidden. With a height of only 8 inches, you should be able to fit these units in a small area.

MRCOOL products are also easy to install! The systems come pre-charged with the environmentally friendly R-410a refrigerant. The components are lightweight and easy to handle. If they got any better, they'd install themselves!

Did you know a ducted split system can expose you to 35% energy leakage? The 30k BTU 23 SEER Olympus Ductless Heat Pump Split System from MRCOOL can get your energy investment back on track with an energy-wise MULTI3-27HP230V1 condenser. Two concealed duct air handlers to pinpoint airflow when and where you need it. The 18k unit covers 750 sq ft while the 12k covers 500 sq ft.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI3-27HP230V1,DUCT-12HP-230,DUCT-18HP-230
UPC 856536005848
AHRI Number 8977708
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.3
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI3-27HP230V1 Specifications:

Model MULTI3-27HP230V1
UPC 856536005848
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.3
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 25,001 - 30,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 150.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
