27k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 9k+18k

Item: HA11743
Models: MULTI3-27HP230V1, DUCT-09HP-230, DUCT-18HP-230
Condition: New

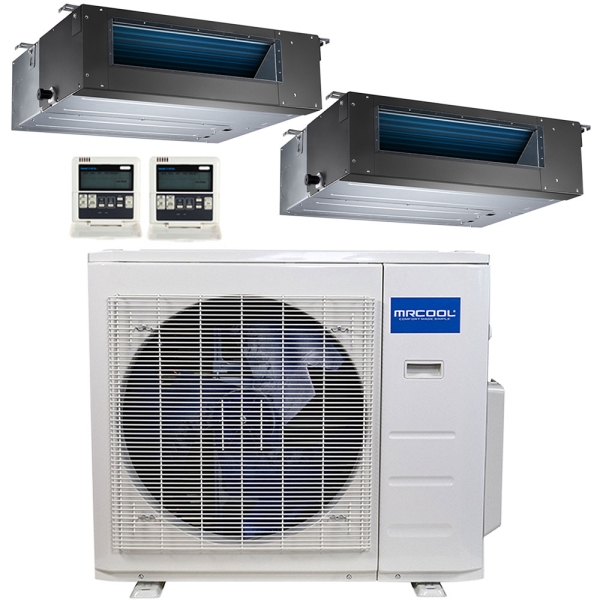

27k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 9k+18k Zoom

Photo Gallery

Related Videos

Make the move from old school baseboard heat and window units with a MRCOOL Olympus Ductless Heat Pump Split System. The outstanding energy efficiency of these systems starts with the MRCOOL heat pump condenser, bringing 27k of power to heat and cool your home. You'll benefit from leak detection technology right in the condenser unit. R-410A refrigerant feeds to two air handlers, an 18k unit and a 9k unit.

Availability: In stock

As low as: $3,626.00

Price as configured: $3,626.00

Ingram Financing

27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone 27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone Item: HA11046 Model: MULTI3-27HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1

* Required Fields

Ships Within 1-2 Business Days

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone 27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone Item: HA11046 Model: MULTI3-27HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

Need a home comfort solution that doesn’t take up a lot of space? This system by MRCOOL is completely hidden, so you do not have to disrupt the decor in your living space. The condensing unit sits at the side of your home and operates at a very quiet noise level while the indoor units are designed to be installed behind drywall, giving you a fantastic solution that you won’t even notice! The condenser is equipped with a modulating compressor that won’t bang on and off every time there is a demand for cooling or heating. Instead, you might hear a very quiet humming in the background as the compressor maintains your desired set-point.

Plus, the modulating compressor is not only quieter, but it’s also lighter on your wallet. When typical compressors turn on and off, the largest spike in current draw is the initial second the compressor turns on. Typical compressors don’t have the ability to modulate so they are completely on or off, commonly over shooting your set-point and turning on and off frequently. The modulating compressor maintains a certain temperature, ensuring you don’t overshoot your set-point. The concealed duct units don’t weigh very much either, so you can have the piece of mind that you will not be stressing the structure of your home.

Make the move from old school baseboard heat and window units with a MRCOOL Olympus Ductless Heat Pump Split System. The outstanding energy efficiency of these systems starts with the MRCOOL heat pump condenser, bringing 27k of power to heat and cool your home. You'll benefit from leak detection technology right in the condenser unit. R-410A refrigerant feeds to two air handlers, an 18k unit and a 9k unit.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI227HP230RD02
UPC 856536005848
AHRI Number 8977708
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.3
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI3-27HP230V1 Specifications:

Model MULTI3-27HP230V1
UPC 856536005848
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.3
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 25,001 - 30,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 150.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000

Reviews

Q & A

Do you have questions about this product?

Does the DUCT-09HP-230 and DUCT-18HP-230 unit have the drain pump installed? The install manual instructs you on how to install either but I cant find any information on which models have the pump or not.
