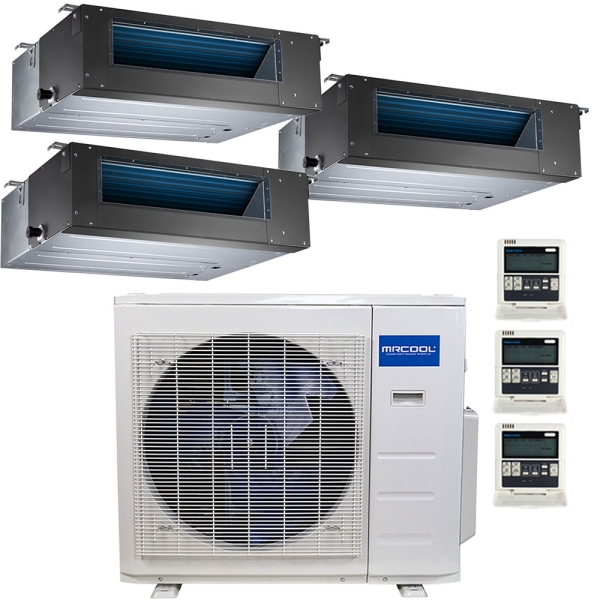

27k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+9k+9k

Item: HA11738
Models: MULTI3-27HP230V1, DUCT-09HP-230
Condition: New

27k BTU 23 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+9k+9k Zoom

Photo Gallery

Related Videos

MRCOOL's 27k BTU 23 SEER Olympus Ductless Heat Pump Split System is anchored by a MULTI3-27HP230V1 condenser built with advanced inverter variable-speed compressor technology, and self-diagnostic features such as leak detection. Inside, heat and cool three zones independently with three 9k concealed-duct air handlers. Inverter technology helps these units keep your temperature consistent instead of flipping on and off.

Availability: In stock

Was: $3,269.00 Click for price

Price as configured:

Was: $3,269.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone 27k BTU MrCool Olympus Ductless Heat Pump Condenser - 3 Zone Item: HA11046 Model: MULTI3-27HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 3

* Required Fields

Overview

Installing HVAC solutions has never been easier! MRCOOL provides your contractor with nearly everything required to install your HVAC system. From the pre-charged condenser filled with R-410a refrigerant to the insulated lineset that should provide you with the length you need to get the job done. An insulated lineset is crucial to prevent any kind of water damage that can arise from condensation build up during operation. It also provides you with a form of efficiency from temperature losses

Concealed duct units are meant to be hidden behind drywall and have dimensions that should allow you to install them with a breeze. If they don’t fit within your existing ceiling space, you always have the option of building a bulkhead around the unit to keep it hidden. This package is ideal for 3 separate zones, but can also be installed in one large common area that’s up to 1200 square feet. If you choose to install these units in 3 separate zone, each zone shouldn’t exceed 400 square feet. If your space is more than the allotted amount, MrCool has plenty of sizes to choose from in a variety of options and at a competitive pricing.

MRCOOL's 27k BTU 23 SEER Olympus Ductless Heat Pump Split System is anchored by a MULTI3-27HP230V1 condenser built with advanced inverter variable-speed compressor technology, and self-diagnostic features such as leak detection. Inside, heat and cool three zones independently with three 9k concealed-duct air handlers. Inverter technology helps these units keep your temperature consistent instead of flipping on and off.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI3-27HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230
UPC 856536005848
AHRI Number 8977708
Avg Coverage Area 1,000 - 1,200 Sq Ft
Cooling Capacity 2 Ton
Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.3
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI3-27HP230V1 Specifications:

Model MULTI3-27HP230V1
UPC 856536005848
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.3
Lineset Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 25,001 - 30,000 BTU
Product Height 32
Product Length 16
Product Width 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight 150.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Lineset Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height 8
Product Length 25
Product Width 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight 40.0000
