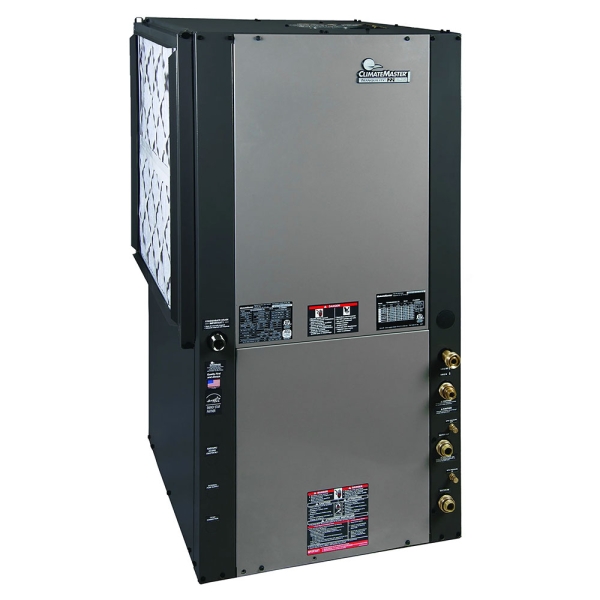

3.5 Ton 21.3 EER 2 Stage ClimateMaster Tranquility 22 Geothermal Heat Pump Vertical Package Unit

Item: HA16164
Condition: New

3.5 Ton 21.3 EER 2 Stage ClimateMaster Tranquility 22 Geothermal Heat Pump Vertical Package Unit Zoom

Photo Gallery

Related Videos


Availability: Out of stock


Call for availability

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat


What's Included

Helpful Buying Guides

What customers are saying...




Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.


AHRI Number 8166199
Air Flow Direction Upflow
Avg Coverage Area 1,750 - 2,100 Sq Ft
Blower Motor Variable Speed
Compressor Two Stage
Cooling Capacity 3.5 Ton
EER 21.3
Electrical Phase 1-Phase
Heat Pump Efficiency (COP) 4.1
HWG Connection 1 inch
Loop Connection 1 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 40,001 - 45,000 BTU
Product Height (in) 46.5
Product Length (in) 26
Product Width (in) 22.4
Series Tranquility 22
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 260.0000
California Residents see Prop 65 WARNING


Q & A

Do you have questions about this product?

Sort by ASC
what is the difference between climate master and geo cool
Can you tell me the Serial number of the unit please
Thank you
What would be the highest filter merv rating that can be used on this unit? 13? 11? 8? Also, is it possible to use 2 filters, one at the unit and one at the house filter? I have this unit and have a dust problem. Thanks, 3.5 ton tranquility 22.
