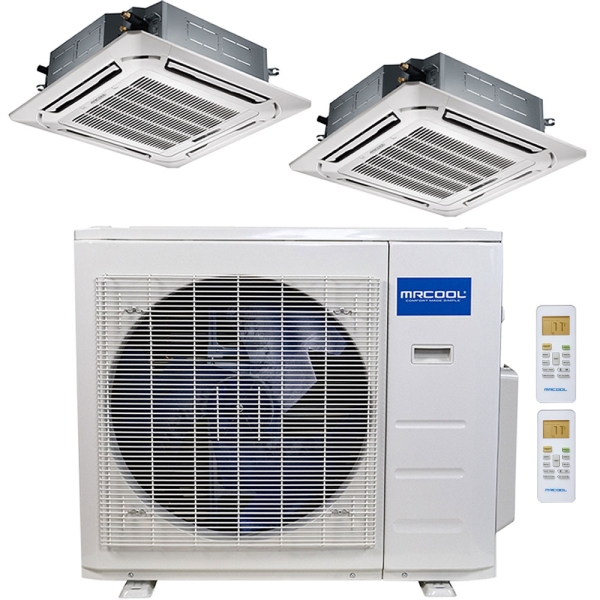

30k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Ceiling cassette - 12k+18k

Item: HA11766
Models: MULTI4-36HP230V1, CASSETTE12HP-230-P, CASSETTE18HP-230-P
Condition: New

30k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Ceiling cassette - 12k+18k Zoom

Photo Gallery

Related Videos

With this 30k BTU 22.5 SEER MRCOOL Olympus Ductless Heat Pump Split System, you get two comfort zones. The MULTI4-36HP230V1 condenser is rated at an eco-friendly 22.5 SEER, yet still puts 30k BTU of power at your disposal. Self-diagnostic features include leak detection technology. Indoors, dual-zone airflow is managed by separate ceiling cassette air handlers. The 18k unit covers up to 750 sq ft. A 12k unit handles approximately 500 sq ft.

Availability: On backorder

As low as: $4,526.00

Price as configured: $4,526.00

Ingram Financing

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 1

* Required Fields

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 1
18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11054 Model: CASSETTE18HP-230-P Qty: 1

Overview

Do you have rooms in your home that are cool in the winter and hot in the summer? Are you using portable air conditioners and heaters to create comfort in those rooms? MRCOOL has a permanent solution for all of your HVAC needs.

The Olympus 30,000 BTU ductless heat pump system comes with 2 zone ceiling cassette air handlers that are sized at 12,000 BTU and 18,000 BTU. The 12,000 BTU unit covers up to 500 square feet and the 18,000 BTU unit covers up to 750 square feet. Each unit has the capability to heat and cool with heat pump technology by the use of a reversing valve in the condensing unit. Controlling this system has never been easier with 2 wireless remotes provided. You no longer need to get up and turn the thermostat up or down!

These ceiling mounted cassette air handlers are 22 inches by 22 inches in size and is a more discrete option than a wall mounted unit, freeing up wall space for all of your home decor needs. The outdoor condensing unit also has dimensions that won’t stand out. With a length of 16 inches, it can be mounted parallel to the side of your home. This system is also quiet as inverter technology allows for the system to modulate. Traditional air conditioners turn on and off so you will be able to sleep undisrupted and comfortable all year around. Look to MRCOOL for all of your ductless HVAC needs!

With this 30k BTU 22.5 SEER MRCOOL Olympus Ductless Heat Pump Split System, you get two comfort zones. The MULTI4-36HP230V1 condenser is rated at an eco-friendly 22.5 SEER, yet still puts 30k BTU of power at your disposal. Self-diagnostic features include leak detection technology. Indoors, dual-zone airflow is managed by separate ceiling cassette air handlers. The 18k unit covers up to 750 sq ft. A 12k unit handles approximately 500 sq ft.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,CASSETTE12HP-230-P,CASSETTE18HP-230-P
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

CASSETTE12HP-230-P Specifications:

Model CASSETTE12HP-230-P
UPC 810512030453
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 35.0000

CASSETTE18HP-230-P Specifications:

Model CASSETTE18HP-230-P
UPC 810512030460
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Does pre-charged lines come with the system and what lengths are available?
Does the 240 volt line need natural wire or just 2 lines & ground?
