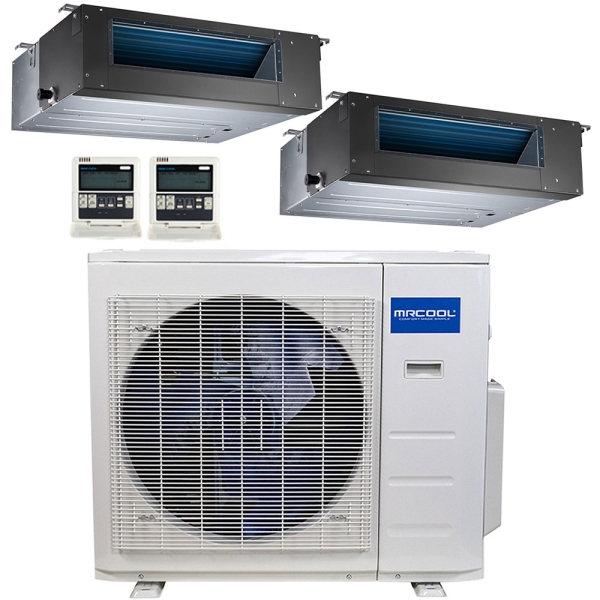

30k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 12k+18k

Item: HA11771
Models: MULTI4-36HP230V1, DUCT-12HP-230, DUCT-18HP-230
Condition: New

30k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 12k+18k Zoom

Photo Gallery

Related Videos

Precision design in each component adds up to energy-wise operation with this MRCOOL Olympus Ductless Heat Pump Split System. The MULTI4-36HP230V1 MRCOOL condenser offers 30k BTU power at a 22.5 SEER with R-410A refrigerant and self-diagnostic leak detection technology. Inside, the energy-saving options continue with dual-zone placement of concealed duct air handlers. This system offers one 18k unit and one 12k unit. Together, they cover a whole lot of living space.

Availability: Out of stock

As low as: $4,521.00

Price as configured: $4,521.00

Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

MRCOOL makes your purchases easy and provides you with the essentials to get your project underway. Included in this package is the factory charged R-410a condenser, pre-insulated lineset, wired controller and 2 zone concealed duct air handlers.

Concealed duct units are the perfect solution if you want ductless technology, but don’t like the aesthetics of a wall mounted unit. The condenser is installed outdoors and the concealed duct units are installed behind drywall or a bulkhead leaving only a register and grill visible. The 12,000 BTU concealed duct air handler is a good fit for rooms that are between 450 to 550 square feet, and the 18,000 BTU concealed duct unit is good for rooms that are between 700 to 1000 square feet. Doesn’t fit for your project? No worries, MRCOOL provides a large selection of products to ensure you find one that fits your needs.

Not only can you install this system in a residence, but it also works well in office applications, server rooms, gyms, game rooms, garages and many other places. MRCOOL ductless units are flexible with the combination of zone and inverter technology which should improve your operating costs when switching from a conventional air conditioning unit. Not only can these systems provide you with cooling, they have also been designed to provide you with heat! If you are looking for a solution that provides comfort all year around, look at a MRCOOL system to fit all of your HVAC needs.

Precision design in each component adds up to energy-wise operation with this MRCOOL Olympus Ductless Heat Pump Split System. The MULTI4-36HP230V1 MRCOOL condenser offers 30k BTU power at a 22.5 SEER with R-410A refrigerant and self-diagnostic leak detection technology. Inside, the energy-saving options continue with dual-zone placement of concealed duct air handlers. This system offers one 18k unit and one 12k unit. Together, they cover a whole lot of living space.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,DUCT-12HP-230,DUCT-18HP-230
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
