30k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+9k+12k

Item: HA11751
Models: MULTI4-36HP230V1, DUCT-09HP-230, DUCT-12HP-230
Condition: New

30k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+9k+12k Zoom

Photo Gallery

Related Videos

MRCOOL Olympus Ductless Heat Pump Split Systems can always be customized according to your needs. This 30k BTU 22.5 SEER system gives you 3-zone temperature command with a 12k concealed duct air handler. Each unit is equipped with its own coil and blower, responds to a broad range of instructions, and connects directly back to the MULTI4-36HP230V1 condenser.

Availability: In stock

As low as: $5,146.00

Price as configured: $5,146.00

Ingram Financing

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 2

* Required Fields

Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 2
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1

Overview

Keep comfortable all year long with heat pump technology and take advantage of a home comfort system without the need for gas or propane. Heat pumps are becoming more and more popular due to their efficient design and energy saving components. If you are in the market to replace your home comfort system, keep MRCOOL in mind with the large variety of solutions they have to offer.

This ductless solution offers an advantage over central air systems and baseboard heating systems. Baseboard heaters don’t give you the luxury of cooling or air filtration and central air systems create comfort for your entire home even the areas you aren’t using. Zone technology gives you the advantage of creating comfort in the spaces you are currently using while you can turn temperatures up/down in zones that you aren’t using, giving you instant savings comparing to a central air system!

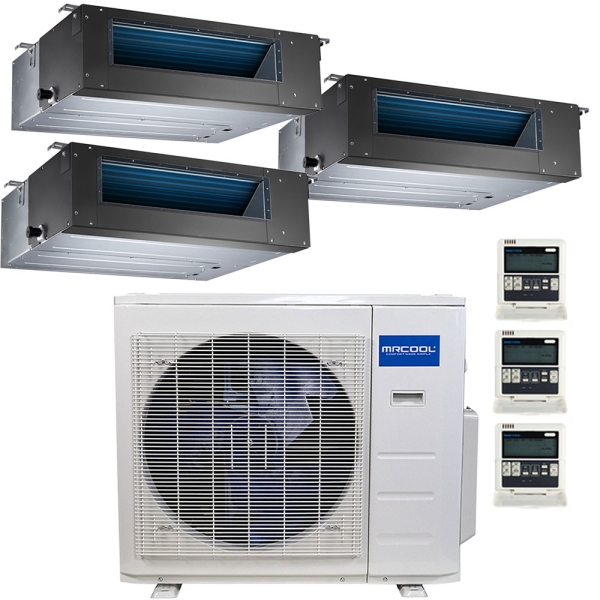

The 30,000 BTU 22.5 SEER MRCOOL heat pump split system comes with 3 concealed duct air handlers for 3 different zones. With this package you nearly have everything you need to get your installation complete. Included are 3 concealed duct air handlers, pre-charged condenser, insulated lineset and 3 wired controller for each unit. Each 9000 BTU air handler is good for spaces that are 350 to 400 square feet and the 12,000 BTU air handler is good for spaces between 450 and 550 square feet. Find your next HVAC system with MRCOOL Olympus Series thanks to the 100+ different packages offered.

MRCOOL Olympus Ductless Heat Pump Split Systems can always be customized according to your needs. This 30k BTU 22.5 SEER system gives you 3-zone temperature command with a 12k concealed duct air handler. Each unit is equipped with its own coil and blower, responds to a broad range of instructions, and connects directly back to the MULTI4-36HP230V1 condenser.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-12HP-230
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000
