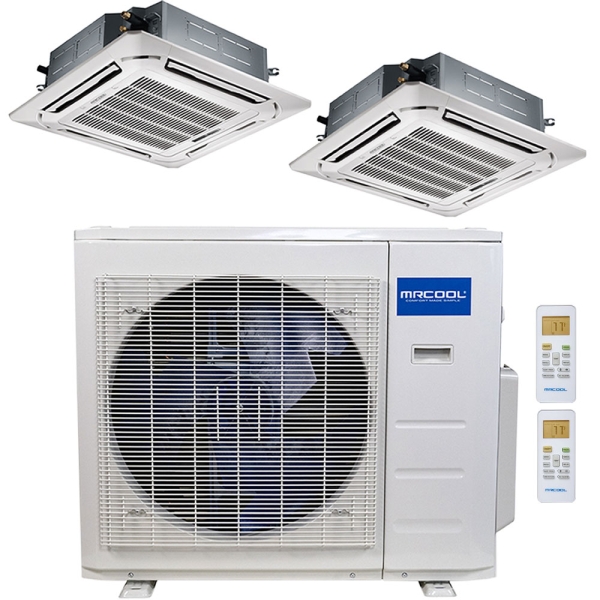

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Ceiling Cassette - 12k+24k

Item: HA11767
Models: MULTI4-36HP230V1, CASSETTE12HP-230-P, CASSETTE24HP-230-P
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Ceiling Cassette - 12k+24k Zoom

Photo Gallery

Related Videos

The MULTI4-36HP230V1 condenser at the heart of this MRCOOL Olympus Ductless Heat Pump Split System delivers more or less performance as needed, resulting in 36k BTU of capacity with a 22.5 SEER. Inside, this system offers dual-zone capacity with a 24k ceiling cassette air handler for the main space, and a 12k ceiling cassette unit for an additional smaller area.

Availability: On backorder

As low as: $4,097.00

Price as configured: $4,097.00

Ingram Financing

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 1

* Required Fields

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 1
24k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 24k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11055 Model: CASSETTE24HP-230-P Qty: 1

Overview

If you are interested in an HVAC solution that will keep you comfortable all year without the need for natural gas, this MRCOOL Olympus Ductless Heat Pump Split System is a great choice and only uses electricity. Ductless heat pump units are becoming more and more popular for a couple of reasons, they offer zone technology and there efficient components. All of your air handlers connect to one condensing unit and with inverter technology, the compressor modulates to meet your demand without sacrificing performance. Zone technology also allows you to turn off air handlers if you are not using that specific zone. After all, why spend money creating comfort in an area that you are not using? Although its not advisable to shut your system off during cool winter nights, you can turn the temperature set point down a few degrees and only run the zone as warm as you need to, protecting your home from damaging cold temperatures.

The 36,000 BTU MRCOOL Olympus ductless heat pump split system comes with two zone ceiling cassette air handlers. Each air handler comes in a height of 10 inches and 8 inches which should fit in your ceiling space. This package comes with a pre-charged outdoor condensing unit, pre-insulated lineset and wireless remotes for your convenience. The air handler that is sized at 12,000 BTU is ideal for spaces 450 to 550 square feet and the 24,000 BTU air handler is ideal for spaces around 1200 square feet. Ceiling cassette air handlers give you the option of installing a ductless heat pump solution without taking up wall space.

The MULTI4-36HP230V1 condenser at the heart of this MRCOOL Olympus Ductless Heat Pump Split System delivers more or less performance as needed, resulting in 36k BTU of capacity with a 22.5 SEER. Inside, this system offers dual-zone capacity with a 24k ceiling cassette air handler for the main space, and a 12k ceiling cassette unit for an additional smaller area.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,CASSETTE12HP-230-P,CASSETTE24HP-230-P
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

CASSETTE12HP-230-P Specifications:

Model CASSETTE12HP-230-P
UPC 810512030453
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 35.0000

CASSETTE24HP-230-P Specifications:

Model CASSETTE24HP-230-P
UPC 810512030477
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Product Height (in) 8
Product Length (in) 33
Product Width (in) 33
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 45.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Says comes with recharged line sets but where does it state the length?
How cold can it be outside for these to function? Live in Northern MN, temps can exceed -30 actual temp. Would this work? A friend of mine has a Samsung, brand one and he does not have a problem with his but had to hire an HVAC person to install it.
