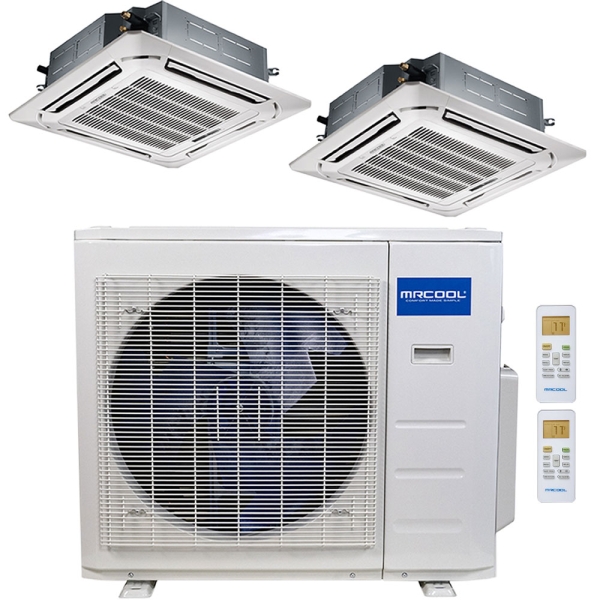

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Ceiling Cassette - 18k+24k

Item: HA11768
Models: MULTI4-36HP230V1, CASSETTE18HP-230-P, CASSETTE24HP-230-P
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Ceiling Cassette - 18k+24k Zoom

Photo Gallery

Go big with this powerful 42k BTU, 22.5 SEER MRCOOL Olympus Ductless Heat Pump Split System. With a MULTI4-36HP230V1 condenser, you get more efficiency for your energy investment thanks to energy-wise features like R-410A refrigerant, and advanced inverter variable-speed technology. Your 2 zone coverage inside is supersized thanks to a 24k ceiling cassette air handler plus an 18k air handler with panel for additional coverage.

Availability: On backorder

$4,028.00 Click for price

Price as configured:

$4,028.00 Click for price
Ingram Financing


Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11054 Model: CASSETTE18HP-230-P Qty: 1
24k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 24k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11055 Model: CASSETTE24HP-230-P Qty: 1

* Required Fields

MrCool

What's Included

  • MrCool MULTI4-36HP230V1
  • MrCool CASSETTE18HP-230-P
  • MrCool CASSETTE24HP-230-P
  • Owner Manual
  • Lifetime Tech Support

What customers are saying...



Overview

Product Features

Go big with this powerful 42k BTU, 22.5 SEER MRCOOL Olympus Ductless Heat Pump Split System. With a MULTI4-36HP230V1 condenser, you get more efficiency for your energy investment thanks to energy-wise features like R-410A refrigerant, and advanced inverter variable-speed technology. Your 2 zone coverage inside is supersized thanks to a 24k ceiling cassette air handler plus an 18k air handler with panel for additional coverage.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model MULTI4-36HP230V1,CASSETTE18HP-230-P,CASSETTE24HP-230-P
UPC 856536005855
AHRI Number 8977709
Avg Coverage Area 1,500 - 1,800 Sq Ft
Cooling Capacity 3 Ton
Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home

Individual Item Specifications

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Lineset Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height 32
Product Length 16
Product Width 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight 157.0000
Region Compatibility Nationwide

CASSETTE18HP-230-P Specifications:

Model CASSETTE18HP-230-P
UPC 810512030460
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Lineset Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height 10
Product Length 22
Product Width 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight 40.0000

CASSETTE24HP-230-P Specifications:

Model CASSETTE24HP-230-P
UPC 810512030477
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Lineset Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Product Height 8
Product Length 33
Product Width 33
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight 45.0000
