36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 12k+24k

Item: HA11772
Models: MULTI4-36HP230V1, DUCT-12HP-230, DUCT-24HP-230
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 12k+24k Zoom

Photo Gallery

Related Videos

Put advanced technology at your service with this MRCOOL Olympus Ductless Heat Pump Split System. The MULTI4-36HP230V1 condenser features a high efficiency compressor as well as ozone-friendly R-410A refrigerant. A 24k concealed duct air handler enables pinpoint temperature control over an area of 1000 sq ft. A 12k unit covers another zone of 500 sq ft. Imagine being able to use just the power you need, where and when you need it. MRCOOL can take you there.

Availability: In stock

Was: $3,584.00 Click for price

Price as configured:

Was: $3,584.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Due to order volume, this item may not ship for 5-7 business days.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

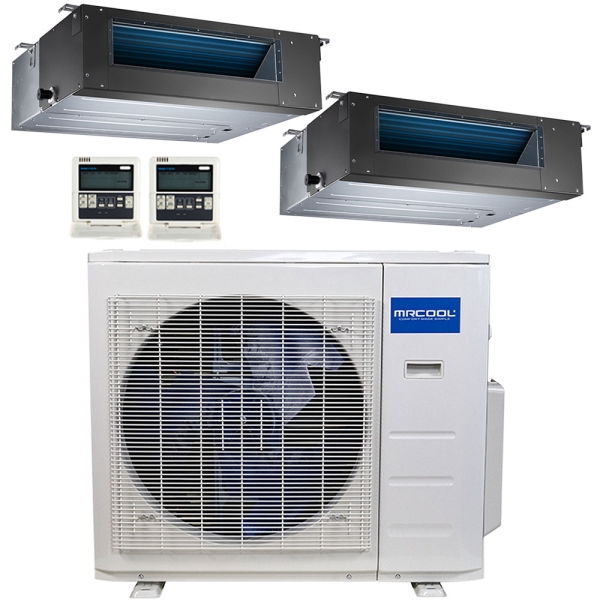

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1
24k BTU MrCool Olympus Ceiling Recessed Air Handler 24k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11059 Model: DUCT-24HP-230 Qty: 1

* Required Fields

Overview

Keep all of your garage projects on schedule all season long with this 36,000 BTU MRCOOL Olympus ductless heat pump split system. This system has the capability to provide you with heating in the winter and cooling in the summer with its heat pump technology. While refrigerant flows from you outdoor condensing unit to your indoor air handlers, the heat of compression is reject outdoors out of the condenser. By utilizing the reversing valve, it switches the direction of the refrigerant flow, which gives you heat indoors. This system does not require the use of any external gas as it operates completely on electricity. With high efficiency in mind, this system comes equipped with an inverter compressor. Inverters control the speed of the motor to meet your temperature demand which saves energy compared to systems that have compressors that only turn on and off. You also have the benefit of turning the system up, down, on or off, when your not using the space.

The concealed duct air handler system is designed to be installed behind drywall so it doesn’t interfere with the flow of your space. If you are not particular about hiding your air handler, MRCOOL provides you with a variety of options that can be simply mounted on your wall. This package includes 2 concealed duct air handlers, wired controllers and pre charged condenser, giving you nearly everything you need to get the job done! Backed by a compressor and parts warranty, you can’t go wrong with purchasing a MRCOOL product.

Put advanced technology at your service with this MRCOOL Olympus Ductless Heat Pump Split System. The MULTI4-36HP230V1 condenser features a high efficiency compressor as well as ozone-friendly R-410A refrigerant. A 24k concealed duct air handler enables pinpoint temperature control over an area of 1000 sq ft. A 12k unit covers another zone of 500 sq ft. Imagine being able to use just the power you need, where and when you need it. MRCOOL can take you there.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,DUCT-12HP-230,DUCT-24HP-230
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-24HP-230 Specifications:

Model DUCT-24HP-230
UPC 853962006548
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 57.0000
