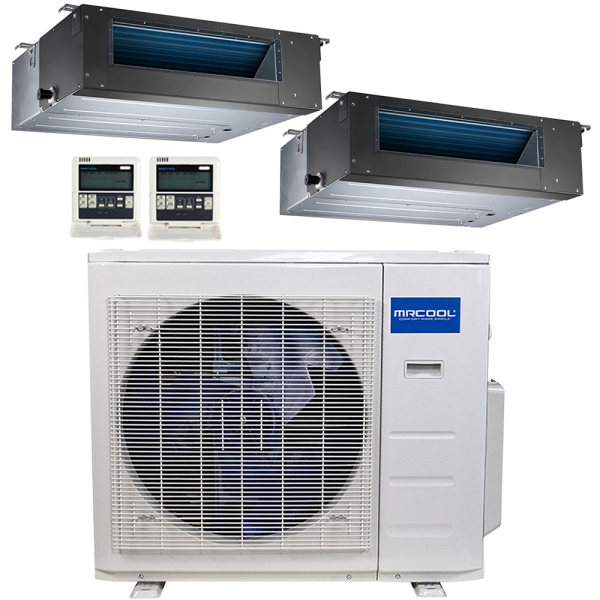

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 18k+24k

Item: HA11773
Models: MULTI4-36HP230V1, DUCT-18HP-230, DUCT-24HP-230
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 18k+24k Zoom

Photo Gallery

Related Videos

If you're tired of paying to heat and cool your whole house, empty rooms and all, you'll love the dual-zone Olympus Ductless Heat Pump Split System from MRCOOL. The MULTI4-36HP230V1 condenser gives you plenty of power with 42k BTU capacity plus 22.5 SEER-rated efficiency of operation. Airflow inside your home is customizable thanks to twin concealed duct air handlers. A 24k air handler brings comfort control to the main living space. An 18k unit delivers in a secondary location like a master bedroom suite, kitchen, dining room, etc.

Availability: Out of stock

As low as: $4,723.00

Price as configured: $4,723.00

Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1
24k BTU MrCool Olympus Ceiling Recessed Air Handler 24k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11059 Model: DUCT-24HP-230 Qty: 1

Overview

Own a small business, but want to avoid the cost of a rooftop unit? Fresh air is an important requirement for most commercial applications. If you are in the market for a ductless option that has the capability of supplying fresh air, MRCOOL has you covered. The 36,000 BTU Olympus ductless heat pump system comes with 2 zone concealed air handlers, insulated line set, wired controllers and pre charged condenser, giving you nearly everything to get the job done.

These concealed duct air handlers are typically installed in your ceiling space and can be hidden behind drywall. With one unit that is sized at 18,000 BTU and the other is sized at 24,000 BTU, this system is suitable for spaces between 1500 and 1800 square feet. If this doesn’t fit your needs, don’t worry! The MRCOOL Olympus series carries a large variety of products that will be sure to fit your space large or small.

If you are replacing older inefficient HVAC equipment, you may qualify for a rebate or incentives. Just ensure you get a professional installation by a certified HVAC technician. This system has been constructed with efficient components that offer you energy savings when compared to older on/off compressors. It also offers a much quieter experience that shouldn’t disrupt your customers. With inverter technology, this compressor modulates to maintain your comfort setpoint instead of cycling on and off to achieve setpoint. One of many features that MRCOOL offers along a large variety of ductless solutions.

If you're tired of paying to heat and cool your whole house, empty rooms and all, you'll love the dual-zone Olympus Ductless Heat Pump Split System from MRCOOL. The MULTI4-36HP230V1 condenser gives you plenty of power with 42k BTU capacity plus 22.5 SEER-rated efficiency of operation. Airflow inside your home is customizable thanks to twin concealed duct air handlers. A 24k air handler brings comfort control to the main living space. An 18k unit delivers in a secondary location like a master bedroom suite, kitchen, dining room, etc.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI236HP230RD10
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000

DUCT-24HP-230 Specifications:

Model DUCT-24HP-230
UPC 853962006548
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 57.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Hello, is it possible to get this package with 1 - 18K Wall mount and 1 - 24K ducted unit?
Can supplemental electric heat be added to this system?
