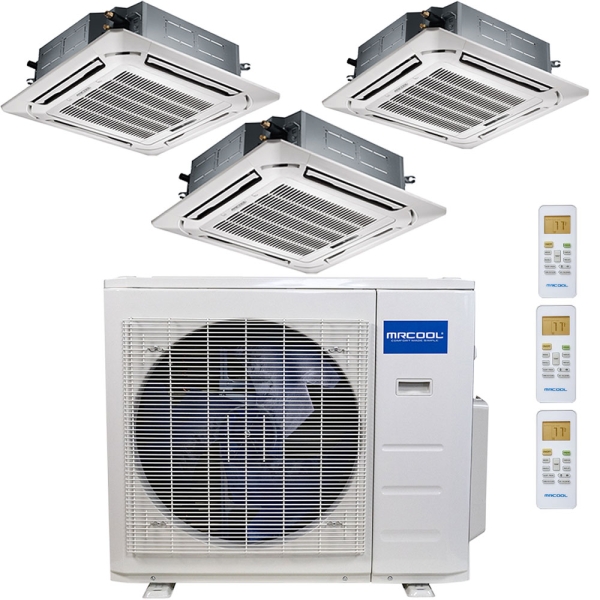

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k+12k+18k

Item: HA11749
Models: MULTI4-36HP230V1, CASSETTE12HP-230-P, CASSETTE18HP-230-P
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k+12k+18k Zoom

Photo Gallery

Related Videos

Everybody loves an open floor plan, but now when the corners are cold and it's drafty under the vents. With a 3-Zone MRCOOL Olympus Ductless Heat Pump Split System, problem solved. This 42k BTU 22.5 SEER system separates your open plan into three zones, each served by a ceiling casette air handler. That living-dining room with the picture windows get an 18k unit. The master bedroom and guest room stay cozy with two 12k units.

Availability: In stock

Was: $4,536.00 Click for price

Price as configured:

Was: $4,536.00 Click for price
Ingram Financing

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 2

* Required Fields

Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 2
18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11054 Model: CASSETTE18HP-230-P Qty: 1

Overview

Looking for a ductless unit that doesn’t take up wall space? MRCOOL ceiling cassette ductless solutions are a great choice for you! With only a height of 10 inches, these air handlers should fit easily into your existing ceiling cavity. These systems also carry an advantage over wall mounted units, since their placement allows more even air distribution throughout your space. Which means you will also enjoy more even temperatures.

Ductless heat pump systems give you the best of both worlds in one package by providing you with both heating and cooling without the need for propane or natural gas. Perfect for rural homes that may not have access to natural gas, avoid putting an unattractive propane tank at the side of your home and use this efficient system instead.

So get your home comfort system out of site and out of mind with this 36,000 BTU MRCOOL Olympus ductless heat pump system. The 3 zone ceiling mounted cassettes can be placed strategically to get the most out of your space. The two 12,000 BTU air handlers are great for spaces 450 to 550 square feet and the 18,000 BTU air handler is a good fit for 700 to 1000 square foot spaces. There are lots of factors to consider when selecting the right package for your home, like insulation value and window exposure, and MRCOOL has a large variety to choose from! Serving you with all of your home comfort needs, you will be sure to find a package that fits your home and your budget with MRCOOL.

Everybody loves an open floor plan, but now when the corners are cold and it's drafty under the vents. With a 3-Zone MRCOOL Olympus Ductless Heat Pump Split System, problem solved. This 42k BTU 22.5 SEER system separates your open plan into three zones, each served by a ceiling casette air handler. That living-dining room with the picture windows get an 18k unit. The master bedroom and guest room stay cozy with two 12k units.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,CASSETTE12HP-230-P,CASSETTE12HP-230-P,CASSETTE18HP-230-P
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

CASSETTE12HP-230-P Specifications:

Model CASSETTE12HP-230-P
UPC 810512030453
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 35.0000

CASSETTE18HP-230-P Specifications:

Model CASSETTE18HP-230-P
UPC 810512030460
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Do all the MRCOOL mini-split systems come with the line sets. If so what length?
What are the temperature operating ranges for the heat cycle and the cooling cycle.
Hi
I have a space that is 10 ft wide x 35ft long and 12ft ceilings, we leave the doors open on both ends during the day so would the ceiling cassettes drip condedsation during humid days?
Do the cassettes daisy chain to each other or do they each have to connect to the outside condenser unit individually?
Husband is electrician - so I may not ask this exactly right. What kind of outlet or wiring is required? And what is the panel breaker requirements? I don't want to overload a breaker in one specific area since this is a new build and we are still at a point that we can adjust wiring and breakers. Very very interested in this particular set. Almost ready to order!
Looking to purchase the three zone, 36K BTU system. Can the ceiling cassettes be placed in a attic between the ceiling joists that are 24 inches on center. The installation guide doesn't really show this installation method? Also, the attic has good ventilation but may have extreme operating temps during the summer? Would that affect the performance or limit life span? Thanks
