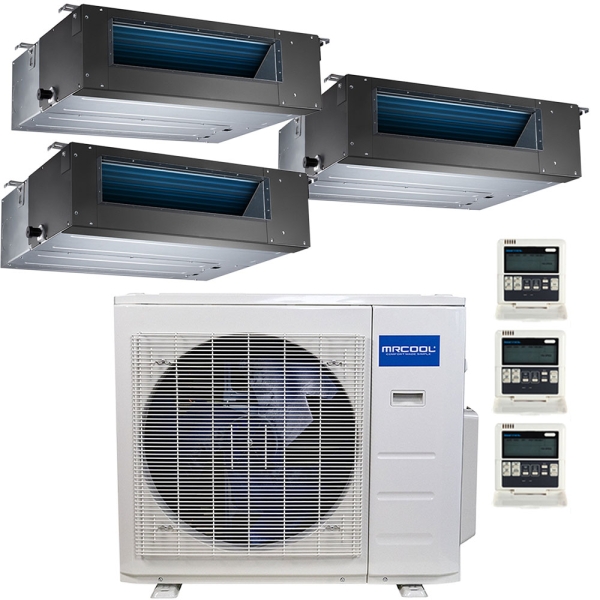

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+12k+12k

Item: HA11761
Models: MULTI4-36HP230V1, DUCT-12HP-230
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+12k+12k Zoom

Photo Gallery

Related Videos

This 3 zone ductless heat pump split system from MRCOOL brings 36k BTU and a 22.5 SEER to the job of delivering comfort in every living area of your home. The MULTI4-36HP230V1 condenser controls output with advanced inverter variable-speed compressor technology. Three 12k concealed duct air handlers split the home into 500 sq ft zones. Each unit has its own coil and blower, delivering comfort-enhancing features like Sleep Mode and Auto Swing.

Availability: Out of stock

As low as: $5,184.00

Price as configured: $5,184.00

Call for availability

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 3

Overview

If you are planning to add cooling and heating to your space, look to MRCOOL for your ductless solutions and stay comfortable during all 4 seasons! Heat pump technology allows the same unit to provide you with cooling and heating without the need for gas. When switching from cooling to heating, the condensing unit utilizes a reversing valve to switch the direction of the refrigerant flow, turning your cooling into a heating coil in your air handling unit. The concealed duct system gives you the advantage of hiding your air handler if you were looking to keep your decor uninterrupted. They also have the capability of connecting a fresh air intake should you need to provide fresh air for occupants or pressurization.

This 36,000 BTU MRCOOL Olympus ductless heat pump system packs a punch. It comes with 3 zone concealed duct air handlers that are 25 inches by 28 inches and only 8 inches high. Each of the three 12,000 BTU air handlers can serve 450 to 550 square feet of space or can be combined to serve 1500 to 1800 square feet in one common area. Also included is a pre-charged condenser with the environmentally friendly R410a, pre-insulated lineset and a wired controller for each of your air handlers. MRCOOL Olympus series has over 100 different packages available to fit different spaces.

From bedrooms to workshops, MRCOOL has a package that will fit any application at a price point that should fit your budget!

This 3 zone ductless heat pump split system from MRCOOL brings 36k BTU and a 22.5 SEER to the job of delivering comfort in every living area of your home. The MULTI4-36HP230V1 condenser controls output with advanced inverter variable-speed compressor technology. Three 12k concealed duct air handlers split the home into 500 sq ft zones. Each unit has its own coil and blower, delivering comfort-enhancing features like Sleep Mode and Auto Swing.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,DUCT-12HP-230,DUCT-12HP-230,DUCT-12HP-230
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

Can the concealed air handler portion of the system be mounted in a conditioned crawl space or is it required to be mounted in the ceiling / attic space? I have floor registers already in place and I would like to reuse the duct work.
