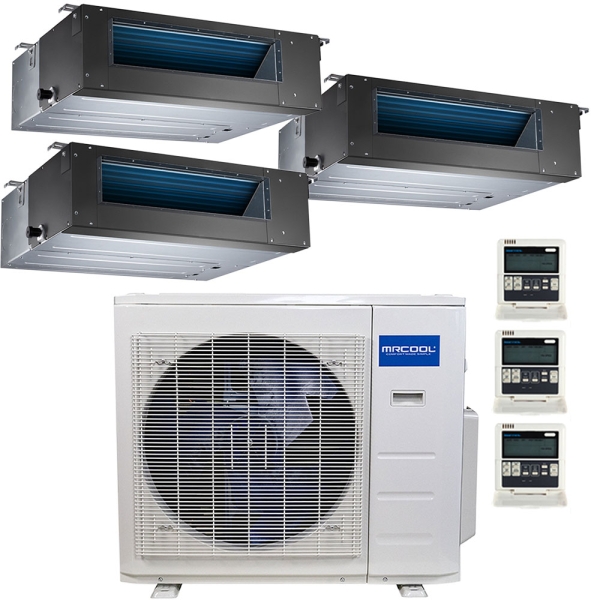

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+12k+18k

Item: HA11753
Models: MULTI4-36HP230V1, DUCT-12HP-230, DUCT-18HP-230
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+12k+18k Zoom

Photo Gallery

Related Videos

Get in the zone with this powerful 3 Zone Olympus Ductless Heat Pump Split System from MRCOOL. Start with the MULTI4-36HP230V1 condenser. This 42k BTU 22.5 SEER unit features leak detection and other self-diagnostic features. Inside your home, you select where to place three concealed duct air handlers. Remember, Olympus systems are customizable, up to a maximum five zones. Two 12k air handlers deliver controlled comfort up to 500 sq ft. An 18k unit governs a zone up to 750 sq ft.

Availability: On backorder

As low as: $5,269.00

Price as configured: $5,269.00

Ingram Financing

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2

* Required Fields

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

If you’re looking for an HVAC ductless solution for a commercial application, this is a great system for you! Conditioned air is often a requirement for small businesses such as restaurants, stores and offices and this MRCOOL ductless heat pump system has the capability of providing just that. With this ductless system, you will avoid hefty installation and maintenance costs associated with rooftop units. There is no need to install ductwork or roof curbs, and you will not need to rent a crane to hoist this system onto the roof. The concealed duct system can also be hidden behind drywall if you want to keep your business decor uninterrupted. Without the need to go on the roof to perform maintenance, you’ll be able to clean or replace the filters yourself. Saving you money on maintenance contracts!

The 36,000 BTU 22.5 SEER MRCOOL Olympus ductless heat pump system comes with 3 concealed duct air handlers to install throughout your space. The two 12,000 BTU air handlers can be used for spaces between 450 to 550 square feet and the 18,000 BTU unit is ideal for spaces between 700 to 1000 square feet. Or you can combine the 3 in one space that is between 1500 and 1800 square feet. This package comes with nearly everything you need to get your projected on the way and included is a heat pump condensing unit, 3 zone air handlers, and 3 wired controllers.

Get in the zone with this powerful 3 Zone Olympus Ductless Heat Pump Split System from MRCOOL. Start with the MULTI4-36HP230V1 condenser. This 42k BTU 22.5 SEER unit features leak detection and other self-diagnostic features. Inside your home, you select where to place three concealed duct air handlers. Remember, Olympus systems are customizable, up to a maximum five zones. Two 12k air handlers deliver controlled comfort up to 500 sq ft. An 18k unit governs a zone up to 750 sq ft.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,DUCT-12HP-230,DUCT-12HP-230,DUCT-18HP-230
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
