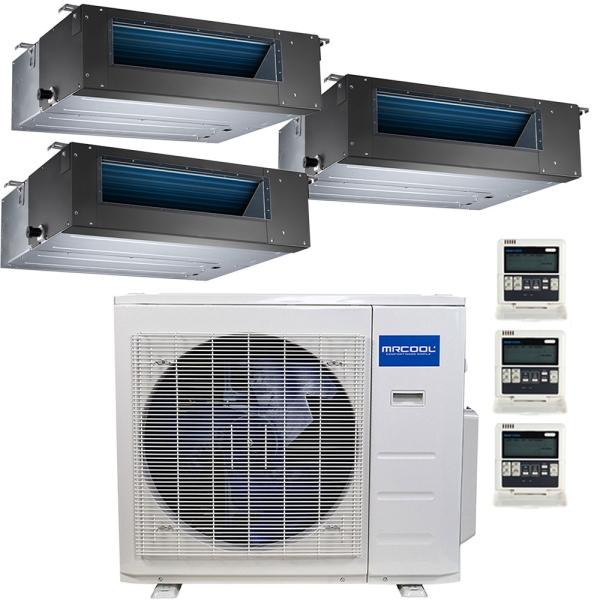

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+12k+18k

Item: HA11770
Models: MULTI4-36HP230V1, DUCT-09HP-230, DUCT-12HP-230, DUCT-18HP-230
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+12k+18k Zoom

Photo Gallery

Related Videos

What makes this MRCOOL Olympus Ductless Heat Pump Split System so efficient? You can program your comfort zones independently. The MULTI4-36HP230V1 condenser can adjust outpast as needed thanks to advanced inverter variable-speed technology. Chlorine-free R-410A refrigerant reduces the environmental footprint with additional safeguards thanks to self-diagnostic leak detection technology. Three concealed duct air handlers bring pinpointed comfort control in capacity as follows: 18k, 12k, and 9k.

Availability: On backorder

Was: $4,406.00 Click for price

Price as configured:

Was: $4,406.00 Click for price
Ingram Financing

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1

* Required Fields

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

Looking for an HVAC solution for your server room? Ductless units provide an excellent source of heating and cooling without disrupting the rest of your building. All possible with zone technology! Ductless heat pump systems provide on the spot heating and cooling without the need for ductwork. If you have one large server room or multiple rooms throughout your building, MRCOOL has a package that will fit all of your needs. Ductless air handlers also provide you with ventilation which helps remove unwanted dust particles from the air. Dust not only has negative effects on your health, but on your HVAC system, too. Add a ductless air handler to your server room and help your equipment fight dust and unwanted temperatures!

The 36,000 BTU 22.5 SEER MRCOOL Olympus ductless heat pump system packs a punch. With 3 different zone wall mounted units, you can split them to suit the need of multiple rooms or have them all serve one room. The 9000 BTU air handler can serve spaces between 350 to 400 square feet, the 12,000 BTU unit can be installed in a room between 450 to 550 square feet. The largest air handler is 18,000 BTU and can serve spaces between 700 to 1000 square feet. You also have the option of combining all three units into one room to fit a space 1500 to 1800 square feet. Included is a pre-insulated lineset, pre-charged condensing unit and 3 zone wall mounted units that come with a wireless remote. If these units don't fit your application, look through the Olympus series for a large variety of ductless packages by MRCOOL.

What makes this MRCOOL Olympus Ductless Heat Pump Split System so efficient? You can program your comfort zones independently. The MULTI4-36HP230V1 condenser can adjust outpast as needed thanks to advanced inverter variable-speed technology. Chlorine-free R-410A refrigerant reduces the environmental footprint with additional safeguards thanks to self-diagnostic leak detection technology. Three concealed duct air handlers bring pinpointed comfort control in capacity as follows: 18k, 12k, and 9k.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,DUCT-09HP-230,DUCT-12HP-230,DUCT-18HP-230
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
