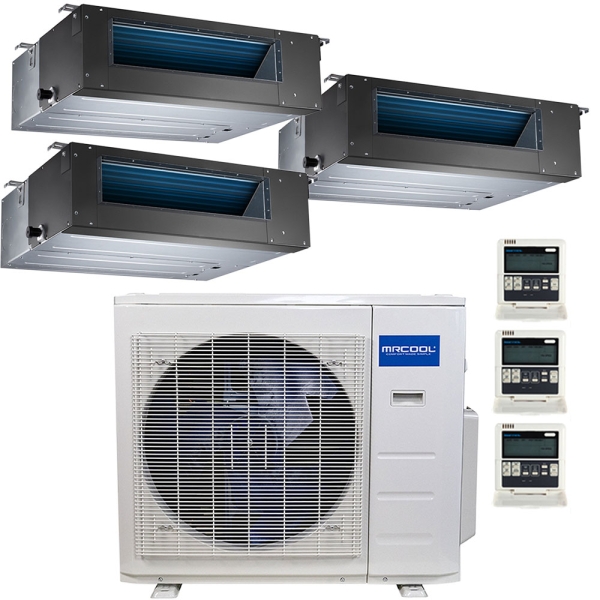

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+9k+18k

Item: HA11752
Models: MULTI4-36HP230V1, DUCT-09HP-230, DUCT-18HP-230
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+9k+18k Zoom

Photo Gallery

Related Videos

Kick up the power with this 36k BTU 22.5 SEER MRCOOL Olympus Ductless Heat Pump Split System. With 36k BTU capacity, the MULTI4-36HP230V1 condenser can easily power all three inside air handlers to keep your environment comfortable without wasting energy. Inverter technology makes the difference, allowing variable speed operation as needed. Three concealed duct air handlers are configured for your needs. The 18k unit covers your main living area. Two 9k units keep smaller rooms cozy.

Availability: In stock

Was: $3,981.00 Click for price

Price as configured:

Was: $3,981.00 Click for price
Ingram Financing

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 2

* Required Fields

Ships Within 2-3 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone 36k BTU MrCool Olympus Ductless Heat Pump Condenser - 4 Zone Item: HA11047 Model: MULTI4-36HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 2
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

Need an HVAC solution that provides instant heating and cooling? With zone technology you’ll get exactly that. Without the need for ducts, you won’t get any leakage associated with central air systems. Instead, you get all of the heating and cooling generated instantly from your wall mounted unit. Seamlessly switch from heating to cooling with heat pump technology when it's time to turn on the heat and turn off the air. When switching operation, this unit uses a reversing valve to switch the refrigerant flow from your condenser to your air handlers. Keep in mind all of your air handlers that are connected to one condenser can have one mode of operation. If you have zones that need cooling while others that need heating, you will need to utilize two condensers.

The 36,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 zone wall mounted air handlers. The two 9,000 BTU air handlers are ideal for bedrooms or offices between 350 to 400 square feet and the 18,000 BTU air handler is good for spaces between 700 and 1000 square feet, like a living room or meeting room. Included are 3 wall mounted units, one pre charged condenser, three wireless remotes for each of your air handlers and an insulated lineset, providing you nearly everything you need to get the job completed. MRCOOL carries a large variety of packages that range from size to quantity, making it easy to find the perfect fit for your home or office.

Kick up the power with this 36k BTU 22.5 SEER MRCOOL Olympus Ductless Heat Pump Split System. With 36k BTU capacity, the MULTI4-36HP230V1 condenser can easily power all three inside air handlers to keep your environment comfortable without wasting energy. Inverter technology makes the difference, allowing variable speed operation as needed. Three concealed duct air handlers are configured for your needs. The 18k unit covers your main living area. Two 9k units keep smaller rooms cozy.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-18HP-230
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
