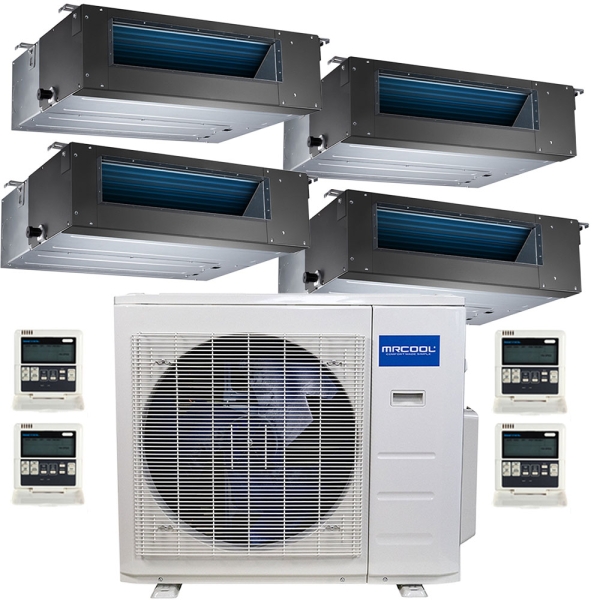

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+9k+12k

Item: HA11760
Models: MULTI4-36HP230V1, DUCT-09HP-230, DUCT-12HP-230
Condition: New

36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+9k+12k Zoom

Photo Gallery

Related Videos

A powerful 39k condenser employs inverter variable-speed compressor technology to achieve a 22.5 SEER for this 4-zone ductless heat pump split system. You can customize your home's temperature in so many ways with this MRCOOL Olympus system. The MULTI4-36HP230V1 condenser is directly connected to each of four concealed duct air handlers. Three 9k units take care of spaces like bedrooms, up to 350 sq ft. A 12k unit is suited for the family living room.

Availability: Out of stock

As low as: $5,875.00

Price as configured: $5,875.00

Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 3
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 1

Overview

If you are seeking a home comfort system that will keep you comfortable all year long, consider looking to the Olympus Series for all of your ductless heat pump needs. MRCOOL provides a large variety of ductless options that will be sure to fit any home project. If you want a system that can be hidden behind drywall so the air handler is not exposed, then a ductless option is an ideal choice. Want an overhead solution that provides air distribution on all four sides? MRCOOL’s ceiling cassette system is the perfect solution. MRCOOL even carries ductless heat pump units that have wireless capabilities, so you can conveniently control your system with a few touches on your smartphone. No matter the occasion, MRCOOL has a system that is right for you!

The 36,000 BTU MrCool Olympus ductless heat pump system comes with 4 concealed duct air handlers. The three 9,000 BTU systems can be used for spaces that are 350 to 400 square feet each, and the 12,000 BTU system is ideal for spaces that are between 450 and 550 square feet. If you want to combine all four units, they can be used in large space between 1500 to 1800 square feet. MRCOOL also provides you with nearly everything you need to complete your project. This package includes a precharged heat pump condenser, 4 concealed duct systems, and 4 wired controllers. If you are in the market for a ductless heat pump system, MRCOOL is a name that should be at the top of your list.

A powerful 39k condenser employs inverter variable-speed compressor technology to achieve a 22.5 SEER for this 4-zone ductless heat pump split system. You can customize your home's temperature in so many ways with this MRCOOL Olympus system. The MULTI4-36HP230V1 condenser is directly connected to each of four concealed duct air handlers. Three 9k units take care of spaces like bedrooms, up to 350 sq ft. A 12k unit is suited for the family living room.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI4-36HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-12HP-230
UPC 856536005855
AHRI Number 8977709
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI4-36HP230V1 Specifications:

Model MULTI4-36HP230V1
UPC 856536005855
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Inverter
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 45 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 157.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Does this unit come with all the lines for all 4 units ?
What is the peak power draw for a system like this, assuming all units are running at the same time? I'm looking for at installing one for an off-grid solution and need to be mindful of peak electrical consumption.
Instead of hidden ducts can I get this with 4 ceiling ducts? For a well insulated house?
How do you save 30% off the price?
My 1500 ft sq house has an old heat pump with ducting in the attic feeding ceiling vents into 4 zones.
With the 36k's 4 hidden air handlers, is it feasible to put them in the attic and feed the ceiling vents, or would ceiling cassette air handlers work better?
You have cassettes for 48k...but I only need 36k. Less is better, if it works. Thanks
