36k BTU 22.5 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+9k+9k
Shop All MRCOOL

Accessories
Description / Documents
In the past, air conditioners were largely all the same. HVAC systems have come a long way since those days, and MRCOOL provides some of the most efficient products with top performance on the market. Ductless units give you the option to install them anywhere you would like in your home or business. If you have a specific room or area that is notoriously cold in the winter and hot in the summer, it makes a perfect location for a ductless air handler. With ductless options for various types of occasions, this concealed duct system is ideal for anybody who desires to hide an HVAC system by choosing ductless. With a height of only 8 inches, you should be able to fit this unit in your ceiling space relatively easily.

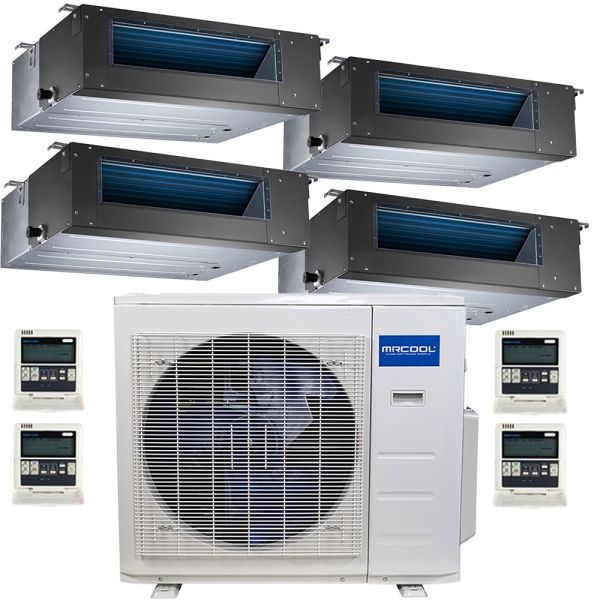

This 36,000 BTU MRCOOL Olympus heat pump system comes with 4 concealed duct air handlers to install throughout your home or business. Each of the 9,000 BTU air handlers is perfect for spaces that 350 to 400 square feet each, or you can combine all 4 units 1400 to 1600 square feet. MRCOOL packages also include a lot of the tools and features needed to complete installation, which should keep your contractors supplier visits to a minimum. Included is a pre-charged condenser, 4 concealed duct air handlers, and 4 wired controllers. Look to MRCOOL for your next HVAC project and take advantage of everything that their ductless and highly efficient products have to offer.
There's a better way to keep your whole home comfortable---separate it into zones. MRCOOL's Olympus Ductless Heat Pump Split Systems let you create up to five temperature zones. This 36k BTU system operates at 22.5 SEER with a MULTI4-36HP230V1 condenser using chlorine-free R-410A refrigerant. Four 9k concealed duct air handlers create comfort zones of up to 350 sq ft, just right for a bedroom, study, or work room. Functions include Sleep Mode and Louver Position Memory.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MULTI4-36HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230 |
|---|---|
| UPC | 856536005855 |
| AHRI Number | 8977709 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 11.5 |
| Heat Pump Efficiency (HSPF) | 10.2 |
| Series | Olympus |
| Zones | 4 |
| Popular Applications | Apartment, Duplex, Hotel Room, Office, Single Family Home |
| Region Compatibility | Nationwide |
DUCT-09HP-230 Specifications:
| Model | DUCT-09HP-230 |
|---|---|
| UPC | 853962006517 |
| Product Height (in) | 8 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 25 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 28 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | NA |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 40.000000 |
| Series | Olympus |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
