MRCOOL's Olympus Ductless Heat Pump systems are awesome and highly customizable, so you can heat and cool the zones you want. This particular configuration subdivides your home into three zones, each one served by a concealed duct air handler programmed to meet your desires. Sizes are graduated: one 18k unit, one 12k unit, and one 9k unit. This system's components create your perfect comfort zones with features like Louver Position Memory, Auto Swing, and Sleep Mode.
Accessories
Description / Documents

When it’s time to upgrade your home HVAC system, you may qualify for an energy rebate by upgrading to more efficient products like this Olympus system from MRCOOL! Check into your local state and utility rebate programs to see if you can qualify. Ductless heat pump systems have come a long way over the years, and the many incentives for them are one reason they have become so popular.

A rebate would not be the only thing you get. MRCOOL offers you inverter technology that modulates your system based on your home comfort needs. As your home cooling or heating needs change, doesn’t it make sense to change your system too? Offering you zone technology with many benefits, you get instant energy savings by turning temperatures up or down in spaces you are not currently using. After all, you cannot be in all of your rooms at once. So why not only heat or cool the rooms you used the most?

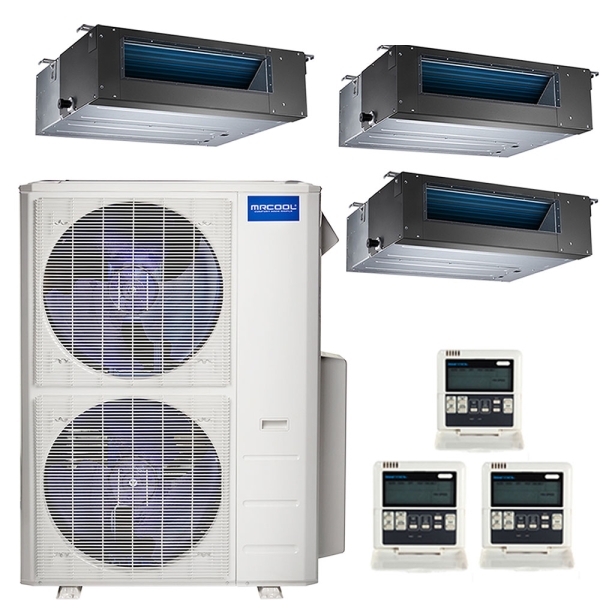

The 39,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 zone concealed duct air handlers to install through your home. As the name implies, these air handlers can be installed behind drywall to keep them hidden and your decor uninterrupted. MRCOOL makes it easy for you and your contractor by providing you with things you would normally have to purchase separately. Included with this system is a precharged heat pump condenser, 3 air handlers and 3 wired controllers. Each of the 12,000 BTU air handlers fit well in spaces 450 to 550 square feet and the 18,000 BTU is great for larger spaces that are between 700 and 1000 square feet.

MRCOOL's Olympus Ductless Heat Pump systems are awesome and highly customizable, so you can heat and cool the zones you want. This particular configuration subdivides your home into three zones, each one served by a concealed duct air handler programmed to meet your desires. Sizes are graduated: one 18k unit, one 12k unit, and one 9k unit. This system's components create your perfect comfort zones with features like Louver Position Memory, Auto Swing, and Sleep Mode.

Customer Reviews / Q&A
Specifications

System Overview

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-12HP-230,DUCT-18HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Product Height (in) 8
Configuration Ceiling Mounted
Product Length (in) 25
Air Flow Direction Horizontal
Product Width (in) 28
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 40.000000
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Product Height (in) 8
Configuration Ceiling Mounted
Product Length (in) 25
Air Flow Direction Horizontal
Product Width (in) 28
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 40.000000
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
