What makes this MRCOOL Olympus Ductless Heat Pump Split System so amazingly awesome? An attractive paint job, and the fact that you can program the comfort zones to go to sleep when you do. The 39k BTU, 22.5 SEER configuration and a 12k concealed duct air handler let you keep the living room warm during the day, then let it cool down automatically when everybody goes to bed. Meanwhile, three 9k units can be set to pre-warm your bedrooms, then use Sleep Mode carry you over for the rest of the night. And, of course, the MULTI5-48HP230V1 condenser adjusts energy to system demand.
Accessories
Description / Documents

Are you in the market to upgrade your HVAC equipment? Is your existing rooftop unit loud and disruptive? MRCOOL has a solution that is both energy efficient and quiet without disrupting your business. Their ductless systems are quiet, energy efficient, and effective. Your customers will enjoy terrific air comfort without being distracted by noisy, annoying machine-noise.

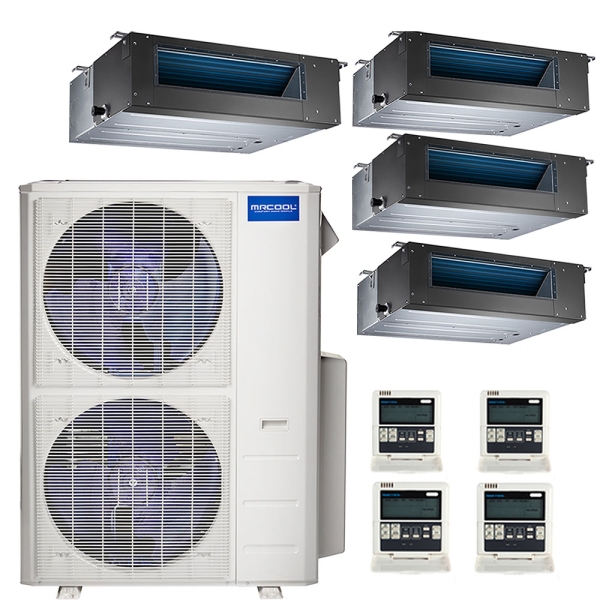

This 39,000 BTU MRCOOL Olympus ductless heat pump system comes with 4 concealed duct systems to install throughout your space. Offering you the best of both worlds, this system is a great choice for your business. Especially if you experience both cooler and warmer climates. The three 9,000 BTU air handlers are well suited for spaces between 350 to 400 square feet each, while the 12,000 BTU air handler can be installed in spaces 450 to 550 square feet. MRCOOL concealed duct system is your best choice for a system that can be hidden behind a drop ceiling or drywall. With plenty of sizes to choose from, you will be sure to find a MRCOOL product that's right for you.

What makes this MRCOOL Olympus Ductless Heat Pump Split System so amazingly awesome? An attractive paint job, and the fact that you can program the comfort zones to go to sleep when you do. The 39k BTU, 22.5 SEER configuration and a 12k concealed duct air handler let you keep the living room warm during the day, then let it cool down automatically when everybody goes to bed. Meanwhile, three 9k units can be set to pre-warm your bedrooms, then use Sleep Mode carry you over for the rest of the night. And, of course, the MULTI5-48HP230V1 condenser adjusts energy to system demand.

Customer Reviews / Q&A
Specifications

System Overview

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-12HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Product Height (in) 8
Configuration Ceiling Mounted
Product Length (in) 25
Air Flow Direction Horizontal
Product Width (in) 28
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 40.000000
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Product Height (in) 8
Configuration Ceiling Mounted
Product Length (in) 25
Air Flow Direction Horizontal
Product Width (in) 28
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 40.000000
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
