42k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+12k+18k

Item: HA11788
Models: MULTI5-48HP230V1, DUCT-12HP-230, DUCT-18HP-230
Condition: New

42k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 12k+12k+18k Zoom

Photo Gallery

Related Videos

When you install a MRCOOL Olympus Ductless Heat Pump Split System with MULTI5-48HP230V1 condenser, you get 5-zone capacity along with all the MRCOOL features you love, including high efficiency, variable-speed technology that saves you money. In this 42k BTU, 22.4 SEER system, tri-zone coverage is provided by one 18k concealed duct air handler, covering serious space, and dual 12k units to handle perfect airflow for separate spaces. All this, and room to grow!

Availability: On backorder

As low as: $6,158.00

Price as configured: $6,158.00

Ingram Financing

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2

* Required Fields

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

Are you looking for a compact HVAC system with great features to heat and cool your space? An Olympus concealed duct system allows for both heating and cooling without taking up much room. As the name implies, this system can be installed behind drywall so all that is visible is an air register and grill. With fresh air capabilities, this system has a flexible design. Perfect for commercial applications and residential spaces alike.

Heat pump technology also gives you the capabilities to switch between cooling and heating seamlessly without the need for propane or any type of combustion. With a stand alone application, it is important to understand that with multiple air handlers attached to one condenser, this system can only be in one mode at a time.

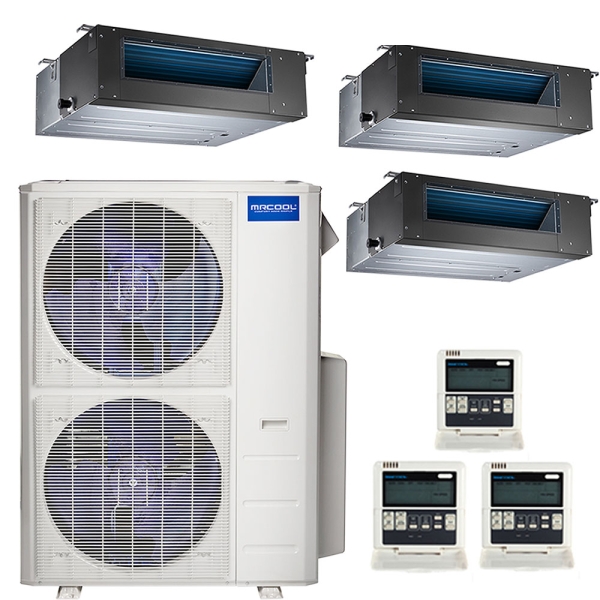

The 42,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 concealed duct air handlers. The two 12,000 BTU systems are great for spaces between 450 to 550 square feet each and the 18,000 BTU air handler fit spaces 700 to 1000 square feet. MRCOOL packages come with most of your installation needs. Included in the package is 1 pre charged condenser, lineset, 3 concealed duct air handlers and 3 wired controllers. MRCOOL offers a large variety of packages for different size applications.

Look to MRCOOL for all of your ductless heat pump system needs!

When you install a MRCOOL Olympus Ductless Heat Pump Split System with MULTI5-48HP230V1 condenser, you get 5-zone capacity along with all the MRCOOL features you love, including high efficiency, variable-speed technology that saves you money. In this 42k BTU, 22.4 SEER system, tri-zone coverage is provided by one 18k concealed duct air handler, covering serious space, and dual 12k units to handle perfect airflow for separate spaces. All this, and room to grow!

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-12HP-230,DUCT-12HP-230,DUCT-18HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
