Overview
Does your home or office need an HVAC upgrade? Everybody has different ideal levels of comfort and and tolerance to temperatures. Doesn’t it make sense to have a custom HVAC solution that can be controlled individually instead of having a central air system that provides everyone with the same temperature?
MRCOOL brings you a large variety of HVAC solutions that can be used in a stand alone application or, for the economical choice, you can select an Olympus multi-zone air handler package that is connected to one condenser. Each condenser can only be in one mode at a time, either cooling or heating, making it essential that you pick the right package that fits your needs.

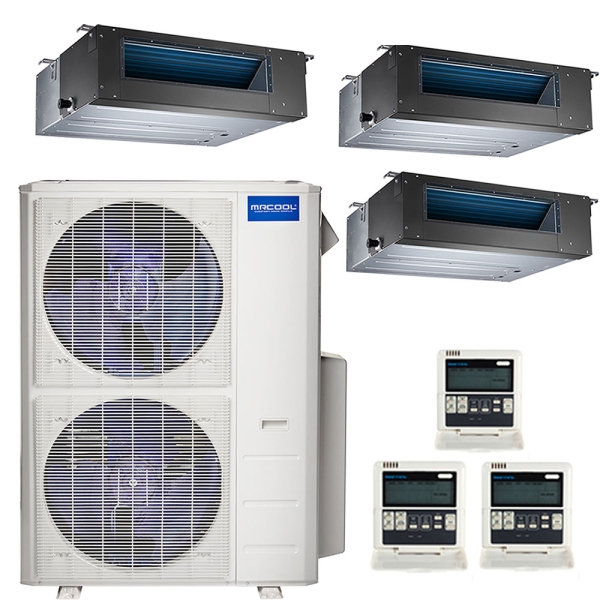

Th 42,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 zone concealed duct air handlers giving you the best of both worlds. Keeping you comfortable all year around, the two 9000 BTU units can be used for spaces 350 to 400 square feet each and the 24,000 BTU air handler can be used for a large space up to 1500 square feet. MRCOOL packages are conveniently put together with components you will need for your installation. Included in this package is a factory-charged heat pump condenser, 3 air handlers, and 3 wired controllers.
This 42k BTU, 22.4 SEER Olympus Ductless Heat Pump Split System is configured to deliver power with a space-saving footprint. In this tri-zone system, the MULTI5-48HP230V1 condenser uses R-410A refrigerant with leak detection technology and inverter variable-speed technology that matches output to demand, avoiding costly spikes in energy consumption. Inside, a 24k concealed duct air handler controls a big living space while two 9k units are well suited to smaller rooms.
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
Model | MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-24HP-230 |
---|---|
UPC | 856536005862 |
AHRI Number | 8977710 |
Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
Bundle Cooling Capacity | 3.5 Ton |
Bundle Cooling Efficiency | 19 SEER and Above |
EER | 12.5 |
Heat Pump Efficiency (HSPF) | 10.2 |
Series | Olympus |
Zones | 3 |
Region Compatibility | Nationwide |
Popular Applications | Apartment, Duplex, Hotel Room, Office, Single Family Home |
California Residents | see Prop 65 WARNING |
MULTI5-48HP230V1 Specifications:
Model | MULTI5-48HP230V1 |
---|---|
UPC | 856536005862 |
Avg Coverage Area | 2,000 - 2,400 Sq Ft |
Compressor | Inverter |
Cooling Capacity | 4 Ton |
Electrical Phase | 1-Phase |
Heat Pump Efficiency (HSPF) | 10.2 |
Line Set Connection Type | Flared |
Liquid Line Size | 1/4 inch |
Max Overcurrent Protection | 50 amps |
Primary Heating Capacity | 45,001 - 50,000 BTU |
Product Height (in) | 52 |
Product Length (in) | 16 |
Product Width (in) | 37 |
Cooling Efficiency | 19 SEER and Above |
Series | Olympus |
System Application Type | Ductless Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts, 7 Year Compressor |
Weight (lbs) | 224.0000 |
Region Compatibility | Nationwide |
DUCT-09HP-230 Specifications:
Model | DUCT-09HP-230 |
---|---|
UPC | 853962006517 |
Air Flow Direction | Horizontal |
Configuration | Ceiling Mounted |
Blower Motor | Variable Speed |
Cooling Capacity | Less than 1 Ton |
Electrical Phase | 1-Phase |
Heat Strip Compatibility | NA |
Line Set Connection Type | Flared |
Liquid Line Size | 1/4 inch |
Max Overcurrent Protection | 15 amps |
Product Height (in) | 8 |
Product Length (in) | 25 |
Product Width (in) | 28 |
Series | Olympus |
Suction Line Size | 3/8 inch |
System Application Type | Ductless Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts |
Weight (lbs) | 40.0000 |
DUCT-24HP-230 Specifications:
Model | DUCT-24HP-230 |
---|---|
UPC | 853962006548 |
Air Flow Direction | Horizontal |
Configuration | Ceiling Mounted |
Blower Motor | Variable Speed |
Cooling Capacity | 2 Ton |
Electrical Phase | 1-Phase |
Heat Strip Compatibility | NA |
Line Set Connection Type | Flared |
Liquid Line Size | 3/8 inch |
Max Overcurrent Protection | 15 amps |
Product Height (in) | 11 |
Product Length (in) | 25 |
Product Width (in) | 36 |
Series | Olympus |
Suction Line Size | 5/8 inch |
System Application Type | Ductless Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts |
Weight (lbs) | 57.0000 |
