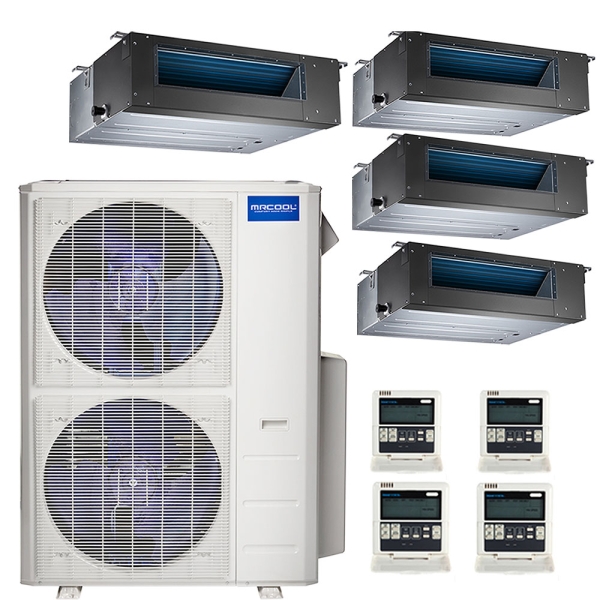

42k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+12k+12k

Item: HA11783
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-12HP-230
Condition: New

42k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+12k+12k Zoom

Photo Gallery

When you choose a MRCOOL Olympus Ductless Heat Pump Split System, you direct the airflow in every corner of your house. You also get more value and a smaller energy footprint. With this quad-zone, 42k BTU system, your space can be subdivided into two 12k zones and two 9k zones with a concealed duct air handler covering each zone. When you set a temperature inside, the MULTI5-48HP230V1 condenser responds via inverter variable-speed technology to keep the power consistent.

Availability: Out of stock

As low as: $6,783.00

Price as configured: $6,783.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 2
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 2

Overview

Do you live in a climate with a frigid winter and humid summer? MRCOOL has a great ductless heat pump solution that will keep you comfortable all year round! Introducing the Olympus concealed duct system. This system provides you with everything you need without sacrificing the flow of your home decor. It is your perfect solution if you are looking for a ductless heat pump system that can stay tucked away behind drywall.

MRCOOL products are efficient and designed to save you money on operating costs. Coming in at a 22.4 SEER rating, this system comes equipped with a inverter compressor that modulates based on your cooling and heating demand. Traditional compressors only turn on and off, no matter what your demand is. Doesn’t it make sense to have a system that modulates based on your needs?

Give your home or business the comfort it deserves with this 42,000 BTU MRCOOL Olympus ductless heat pump system. With 4 concealed duct air handlers, this system gives you a large coverage throughout your space. The two 9000 BTU units are great for spaces 350 to 400 square feet each and the to 12,000 air handlers can serve spaces 450 to 550 square feet each. MRCOOL makes it easy from purchase to installation, providing you with nearly everything you need to get the job done. Included in this package is a heat pump condensing unit, 4 air handlers, and 4 wired controllers.

When you choose a MRCOOL Olympus Ductless Heat Pump Split System, you direct the airflow in every corner of your house. You also get more value and a smaller energy footprint. With this quad-zone, 42k BTU system, your space can be subdivided into two 12k zones and two 9k zones with a concealed duct air handler covering each zone. When you set a temperature inside, the MULTI5-48HP230V1 condenser responds via inverter variable-speed technology to keep the power consistent.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-12HP-230,DUCT-12HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

I have installed a Mr. Cool DIY on an exterior wall before, but how can it be installed on an interior wall as shown in the video? The line sets go through the attic but what about the drain line? I have an old house I am wanting to instal a system in but the exterior walls do not have space over windows for the air handler.
