45k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+18k+18k

Item: HA11825
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-18HP-230
Condition: New

45k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Concealed Duct - 9k+18k+18k Zoom

Photo Gallery

Related Videos

Put MRCOOL's cost-effective, energy-saving engineering at your service with this tri-zone Olympus Ductless Heat Pump Split System. Here, two 18k concealed duct air handlers target zones up to approximately 750 square feet. One of these might be your family great room. Another could be the basement. A third 9k unit is designated to cover a smaller area like a bedroom or study. In each of your chosen zones you can program your airflow with features like Louver Position Memory and Sleep Mode.

Availability: On backorder

Was: $5,106.00 Click for price

Price as configured:

Was: $5,106.00 Click for price
Ingram Financing

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1

* Required Fields

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

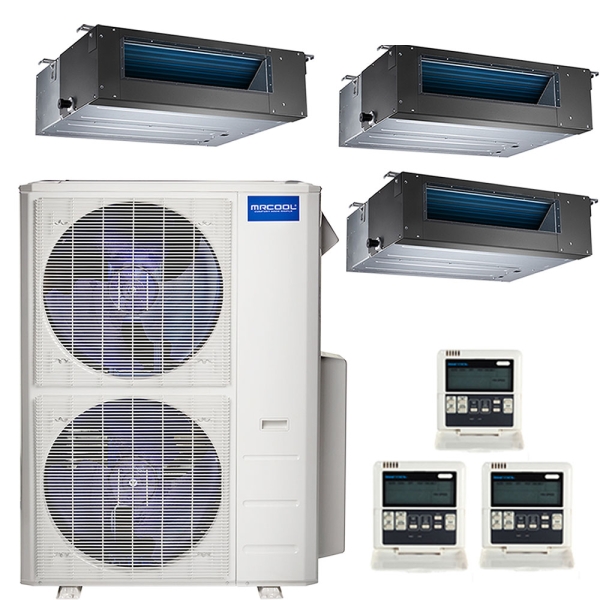

This Bundle Includes

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 2

Overview

MRCOOL’s ductless heat pump systems are built to provide you with comfort no matter what the season. Without the need for natural gas or propane, all that is required for this system to run efficiently is electricity. Heat pump technology utilizes a reversing valve which changes the direction of refrigerant flow, turning your indoor air handler from an air conditioner to a heater with the push of a button.

Ductless systems have significant advantages over central air systems. Aside from costly duct and gas installations, you will be glad to know you have the potential to save on your monthly utility bills. With zone technology, you can turn off air handlers that are not in use, unlike central air systems that continually service your entire home. With this system from MRCOOL, you can channel comfort in the rooms you’re using without wasting heating or cooling on spaces that you do not occupy.

The 45,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 concealed duct air handlers that can be hidden behind a drop ceiling or drywall. The 9000 BTU air handler can fit spaces 350 to 400 square feet and the two 18,000 BTU air handlers are great for larger spaces between 700 to 1000 square. This package also comes with many features that you normally would have to purchase separately, like the included wired controller and quick connect insulated lineset, saving your contractor time from extra trips to your local supplier. MRCOOL offers a large variety of ductless heat pump solutions for any project, large or small, at a price point the should fit any household budget.

Put MRCOOL's cost-effective, energy-saving engineering at your service with this tri-zone Olympus Ductless Heat Pump Split System. Here, two 18k concealed duct air handlers target zones up to approximately 750 square feet. One of these might be your family great room. Another could be the basement. A third 9k unit is designated to cover a smaller area like a bedroom or study. In each of your chosen zones you can program your airflow with features like Louver Position Memory and Sleep Mode.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-18HP-230,DUCT-18HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
