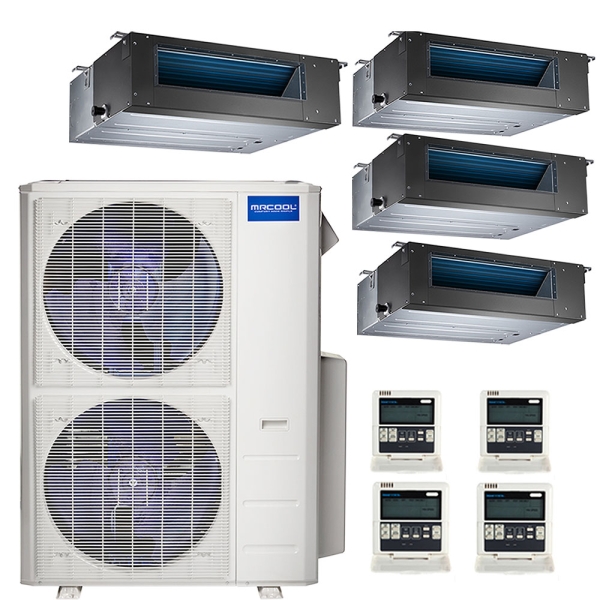

45k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+12k+12k+12k

Item: HA11826
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-12HP-230
Condition: New

45k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+12k+12k+12k Zoom

Photo Gallery

Related Videos

When you choose a MRCOOL Olympus Ductless Heat Pump Split System, you get more value and a smaller energy footprint. Check out this configuration: It starts with a MULTI5-48HP230V1 condenser, featuring a high efficiency compressor supported by leak detection technology and other built-to-last features. This unit uses chlorine-free R-410A refrigerant. Concealed duct air handlers consist of three 12k units and one 9k unit for a single, smaller zone.

Availability: Out of stock

As low as: $6,802.00

Price as configured: $6,802.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 1
12k BTU MrCool Olympus Ceiling Recessed Air Handler 12k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11057 Model: DUCT-12HP-230 Qty: 3

Overview

Give your customers and employees the comfort they deserve with MRCOOL ductless heat pump systems. Unlike rooftop units, these systems can be installed directly inside your building. In addition, this system will save you money on roof curbs, crane charges and structural changes. It can also be hung directly in your ceiling space. With easier access to your filters, you can save money on your maintenance contracts.

Built with high efficiency components, you can save money on your utility bills when replacing traditional air conditioners. MRCOOL makes HVAC projects easy, providing you with most of the parts and tools you will need for your installation.

This 45,000 BTU MRCOOL Olympus ductless heat pump system comes with 4 concealed duct air handling units to install through your business. With fresh air capabilities, this system is an excellent choice to improve your air quality. This package includes 4 air handlers which are connected to one heat pump condensing unit, and 4 wired controllers. The 9,000 BTU air handler is a good fit for spaces 350 to 400 square feet, while the three 12,000 BTU air handlers can each be installed in spaces 450 to 550 square feet. If you’d like to combine all of the units in one space, the condenser has been sized to accommodate 1750 to 2100 in total.

When you choose a MRCOOL Olympus Ductless Heat Pump Split System, you get more value and a smaller energy footprint. Check out this configuration: It starts with a MULTI5-48HP230V1 condenser, featuring a high efficiency compressor supported by leak detection technology and other built-to-last features. This unit uses chlorine-free R-410A refrigerant. Concealed duct air handlers consist of three 12k units and one 9k unit for a single, smaller zone.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-12HP-230,DUCT-12HP-230,DUCT-12HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-12HP-230 Specifications:

Model DUCT-12HP-230
UPC 853962006524
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000
