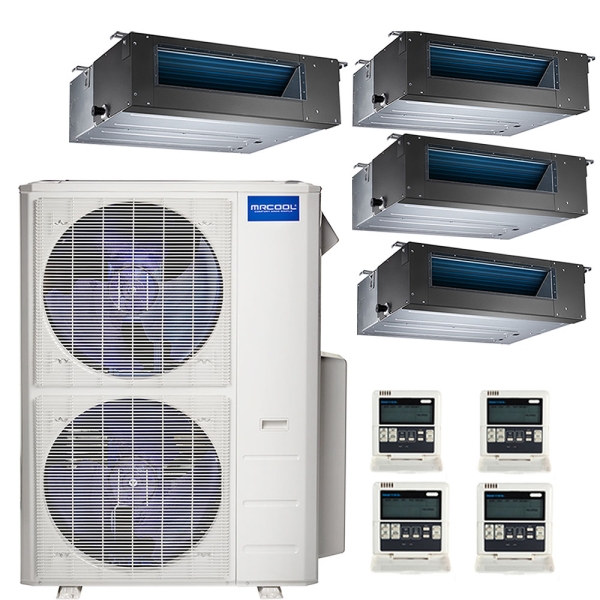

45k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+9k+18k

Item: HA11804
Models: MULTI5-48HP230V1, DUCT-09HP-230, DUCT-18HP-230
Condition: New

45k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 4 Zone Concealed Duct - 9k+9k+9k+18k Zoom

Photo Gallery

Related Videos

Want more targeted comfort and less expense? This MRCOOL Olympus Ductless Heat Pump Split System sends the comfort when and where you want. The technology starts with a MULTI5-48HP230V1 condenser reliant on eco-friendly R-410A refrigerant. It features a high efficiency compressor, leak detection technology, and inverter variable-speed technology to match the system's output to real-time demand. Four comfort zones are served by custom-sized concealed duct air handlers. Features include Auto Swing and Sleep Mode.

Availability: Out of stock

As low as: $6,849.00

Price as configured: $6,849.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

9k BTU MrCool Olympus Ceiling Recessed Air Handler 9k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11056 Model: DUCT-09HP-230 Qty: 3
18k BTU MrCool Olympus Ceiling Recessed Air Handler 18k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11058 Model: DUCT-18HP-230 Qty: 1

Overview

Maintain comfort in your home or business all year long with MRCOOL HVAC solutions! This system comes with many bells and whistles including everything heat pump technology has to offer. The concealed duct system is a perfect choice for those who want to keep indoor units hidden. These systems were meant to be installed in your ceiling space so you can save wall space for your home or business decor.

It also comes with plenty of features to make your life easier. The swing feature gives you directional bursts of air that will distribute air in every corner of your space. MRCOOL also gives you the option of controlling your fan speed so you can adjust the fans to meet your exact needs. Backed by a compressor and parts warranty, this system was built to last you for years to come.

The 45,000 BTU MRCOOL Olympus ductless heat pump system comes with 4 concealed duct air handlers to install throughout your space. With efficiency in mind, this system comes with an inverter compressor that modulates based on your comfort needs. The three 9,000 BTU air handlers are a perfect fit for spaces between 350 and 400 square feet. The 18,000 BTU system can be used in spaces 700 to 1000 square feet. If these sizes don't fit your space, MRCOOL has a large variety to choose from.

Want more targeted comfort and less expense? This MRCOOL Olympus Ductless Heat Pump Split System sends the comfort when and where you want. The technology starts with a MULTI5-48HP230V1 condenser reliant on eco-friendly R-410A refrigerant. It features a high efficiency compressor, leak detection technology, and inverter variable-speed technology to match the system's output to real-time demand. Four comfort zones are served by custom-sized concealed duct air handlers. Features include Auto Swing and Sleep Mode.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-18HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 4
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 28
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

DUCT-18HP-230 Specifications:

Model DUCT-18HP-230
UPC 853962006531
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 8
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 51.0000
