Item:
HA11820
Model:
MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230
Condition:
New

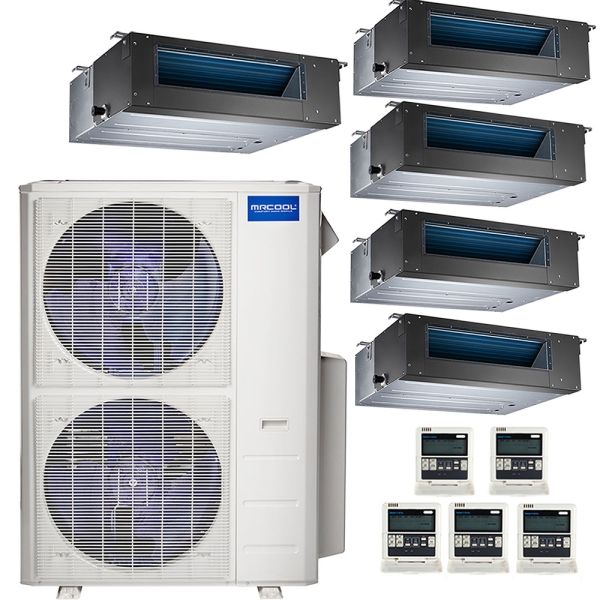

45k-btu-22.4-seer-mrcool-olympus-ductless-heat-pump-split-system-5-zone-concealed-duct-9k+9k+9k+9k+9k-ha11820-01.3548
Out of stock
Loading...
With a MRCOOL Olympus Ductless Heat Pump Split System, you can subdivide your temperature control zones and save on your energy bill. Create five zones of pure comfort with this 45k BTU, 22.4 SEER configuration. Concealed duct air handlers of 9k are each designed to cover an area up to 350 square feet. You can program your five units independently with options including Auto Swing, and that allows you to set airflow to your personal preference. Nice, right?
Accessories
MISCELLANEOUS ITEMS
extended-labor-warranty-for-ductless-mini-split-system-ef10020-01.3445
Extended Labor Warranty for Ductless Mini Split System
Item #: EF10020
Price:
As low as $61.13
Copper Line Sets WE RECOMMEND
line-set-kit-for-9k-btu-mrcool-ductless-split-system-ha11923-01.3548
Line Set Kit for 9k & 12k BTU MrCool Ductless Split System
Item #: HA11923
Price:
As low as $121.00
Thermostats WE RECOMMEND
mrcool-mini-stat-ir-wifi-thermostat-for-ductless-mini-split-ha21064-01.3548
MrCool Mini Stat IR WiFi Thermostat for Ductless Mini Split
Item #: HA21064
Price:
$87.95
Equipment Pads WE RECOMMEND
18-x-38-x-3-e-lite-plastic-equipment-pad-ha12037-01.3548
18" x 38" x 3" E Lite Plastic Equipment Pad
Item #: HA12037
Price:
$172.86
HVAC Parts & Accessories WE RECOMMEND
non-fusible-60a-disconnect-switch-ha12034-01.3548
Non-Fusible 60A Disconnect Switch
Item #: HA12034
Price:
$59.34
12-x-6-ft-diversitech-non-metallic-electrical-whip-with-10-wire-ha12023-01.3548
1/2" x 6 Ft DiversiTech Non Metallic Electrical Whip with #10 Wire
Item #: HA12023
Price:
$72.53
mrcool-lineguard-4.5-line-set-cover-kit-12-ft-ha12096-01.3548
MrCool LineGuard 4.5" Line Set Cover Kit - 12 ft
Item #: HA12096
Price:
$132.00
condenser-wall-mounting-kit-for-24k-36k-btu-mrcool-ductless-split-system-ha15994-01.3558
Condenser Wall Mounting Kit for 24k & 36k BTU MrCool Ductless Split System
Item #: HA15994
Price:
$121.00
1.8-lb-r410a-refrigerent-refill-kit-with-gauge-ha12152-01.3681
1.8 lb R410a Refrigerent Refill Kit with Gauge
Item #: HA12152
Price:
$223.16
coolgas-r410a-refrigerant-25lb-cylinder-ha12191-01.3269
CoolGas 410A Refrigerant 25lb Cylinder
Item #: HA12191
Price:
$450.00
rectorseal-safe-t-switch-electronic-condensate-overflow-shut-off-switch-for-mini-splits-ha17863-01.3548
Rectorseal Safe-T-Switch Electronic Condensate Overflow Shut-Off Switch
Item #: HA17863
Price:
$129.35
foam-sealant-38-bead-12oz-ha12049-01.3548
Foam Sealant 3/8" Bead - 12oz
Item #: HA12049
Price:
$42.37
Description / Documents
With a MRCOOL Olympus Ductless Heat Pump Split System, you can subdivide your temperature control zones and save on your energy bill. Create five zones of pure comfort with this 45k BTU, 22.4 SEER configuration. Concealed duct air handlers of 9k are each designed to cover an area up to 350 square feet. You can program your five units independently with options including Auto Swing, and that allows you to set airflow to your personal preference. Nice, right?
Additional Documents

From the Manufacturer

Helpful Buying Guides
Customer Reviews / Q&A
Specifications

System Overview

Model MULTI5-48HP230V1,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230,DUCT-09HP-230
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 5
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
Region Compatibility Nationwide

DUCT-09HP-230 Specifications:

Model DUCT-09HP-230
UPC 853962006517
Product Height (in) 8
Configuration Ceiling Mounted
Product Length (in) 25
Air Flow Direction Horizontal
Product Width (in) 28
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 40.000000
Series Olympus
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
