48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 24k+24k

Item: HA11790
Models: MULTI5-48HP230V1, DUCT-24HP-230
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 2 Zone Concealed Duct - 24k+24k Zoom

Photo Gallery

"Remember to turn off the heat!" That's what grandpa always yelled. Now, thanks to MRCOOL, your Olympus Ductless Heat Pump Split System turns itself off at your command. Auto functions for this dual-zone split system include Sleep Mode, Auto Swing, Louver Position Memory, and more. Two 24k concealed duct air handlers, each with its own coil and blower, is connected to the MULTI5-48HP230V1 outside condenser unit by compact refrigerant lines instead of an attic full of air ducts.

Availability: Out of stock

As low as: $5,729.00

Price as configured: $5,729.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

24k BTU MrCool Olympus Ceiling Recessed Air Handler 24k BTU MrCool Olympus Ceiling Recessed Air Handler Item: HA11059 Model: DUCT-24HP-230 Qty: 2

Overview

Keep everyone comfortable and productive with an Olympus concealed duct system by MRCOOL. The concealed duct system has the capability of introducing conditioned air into spaces very rapidly which which should increase your air quality and provide you with instant heating and cooling comfort. Since this ductless unit operates as a stand alone system, you can simply turn the system off when you are not using the room, saving you money instantly on operating costs. Ductless heat pump solutions are the perfect solution for any environment and with a name like MRCOOL, you know you will be purchasing a reliable product at an affordable price.

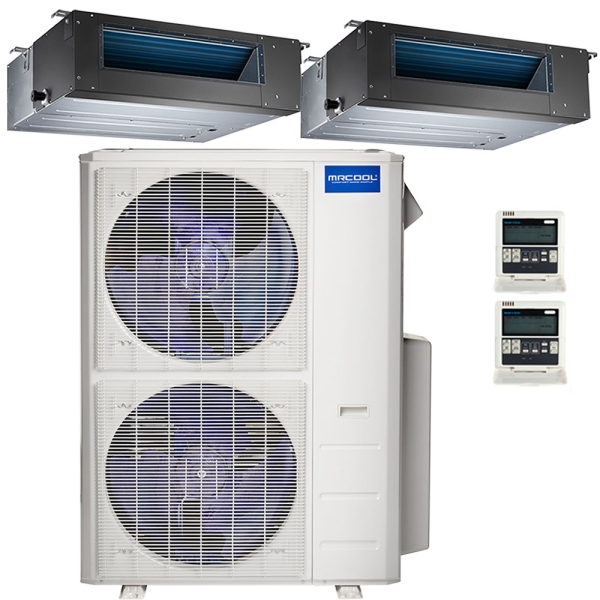

The 48,000 BTU 22.4 SEER MrCool ductless heat pump system comes with 2 concealed duct air handlers that can be hidden behind drywall. With 2 units sized at 24,000 BTU each when combined, you can create comfort for a space between 2000 to 2400 square feet or 1000 to 12000 square feet separately. Although there are many variables like window exposure and insulation value that can contribute to unwanted temperatures, ductless heat pump systems are a great choice to alleviate these issues. MRCOOL makes your installation easy by providing you with nearly everything you need to get you comfortable in no time. Included in this package are 2 concealed air handlers, 1 heat pump condensing unit, and 2 wired controllers.

"Remember to turn off the heat!" That's what grandpa always yelled. Now, thanks to MRCOOL, your Olympus Ductless Heat Pump Split System turns itself off at your command. Auto functions for this dual-zone split system include Sleep Mode, Auto Swing, Louver Position Memory, and more. Two 24k concealed duct air handlers, each with its own coil and blower, is connected to the MULTI5-48HP230V1 outside condenser unit by compact refrigerant lines instead of an attic full of air ducts.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI248HP230RD09
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

DUCT-24HP-230 Specifications:

Model DUCT-24HP-230
UPC 853962006548
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11
Product Length (in) 25
Product Width (in) 36
Series Olympus
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 57.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I'm wondering if you ca sell this system for $3,700
I have 1/2 and 1/2 west facing 1 story and basement, which is easy to cool the basement living quarters in summer and easy to heat the upstairs sleeping quarters in winter. Approximately 2400 total square feet. I need a 2 zone system to cool from the upstairs in summer and heat from the downstairs in winter and this seems like it might do the job. Does this sound like a good application of this system? Do these units require condensate drains? Can I use a pants duct off the unit and run duct to two separate rooms? This unit cannot use pre-charged lines - correct? Thank you,
Can you provide this system with all components and line sets pre-charged with connectors? I don't wish to sweat connections. The same question applies for HA11990
