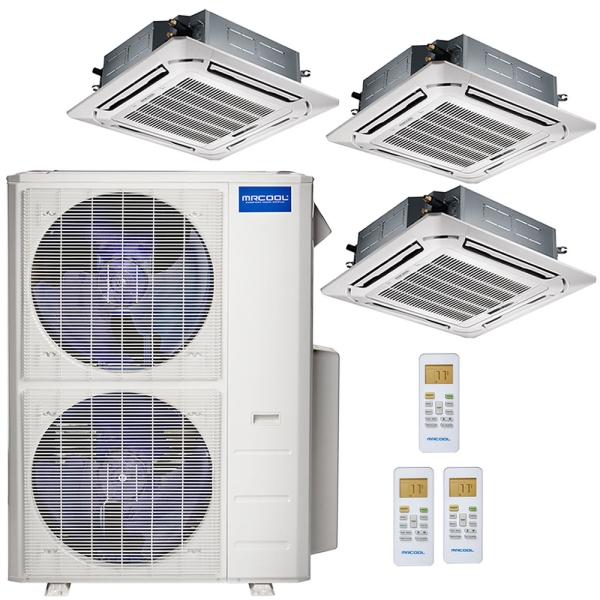

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k+18k+18k

Item: HA11822
Models: MULTI5-48HP230V1, CASSETTE12HP-230-P, CASSETTE18HP-230-P
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k+18k+18k Zoom

Photo Gallery

Related Videos

Does your office have two conference rooms and a kitchen? Does your home contain a family basement, living room, and master bedroom? Check out this 48k BTU, 22.4 SEER Olympus Ductless Heat Pump System from MRCOOL. A MULTI5-48HP230V1 condenser anchors this tri-zone system. The zones are divided with 18k ceiling cassette air handlers covering two designated areas up to 750 square feet. An additional 12k unit covers an area of around 500 square feet.

Availability: In stock

Was: $5,196.00 Click for price

Price as configured:

Was: $5,196.00 Click for price
Ingram Financing

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 1

* Required Fields

Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 12k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11053 Model: CASSETTE12HP-230-P Qty: 1
18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11054 Model: CASSETTE18HP-230-P Qty: 2

Overview

Looking for an innovative HVAC solution that provides you with overhead comfort? This systems offers you both heating and cooling with an efficiency rating of 22.4 SEER. The high efficiency compressor modulates to deliver performance while only consuming the amount of energy required to cool or heat your space.

With ductless zone technology, you also have the opportunity to save more money by turning zones up or down when they are not in use. With loads of features like the convenient wireless remotes, there is no longer a need to get up every time you want to change the temperature. The ceiling cassette system is designed to save you wall space while providing you with crisp comfortable air on all four sides. For the best experience, adjust all of the louvers to direct the airflow where you want it.

The 48,000 BTU MRCOOL Olympus ductless heat pump system comes with 3 ceiling cassette air handlers. The 12,000 BTU air handlers is best for spaces 450 to 550 square feet and the two 18,000 BTU air handlers can each serve a space 700 to 1000 square feet. MRCOOL makes your purchase and installation easy, providing you with most of the things needed to get your job done. Included in this system are 3 air handlers, 3 wireless remotes, and 1 fantastic heat pump condenser. Providing you with all of your ductless heat pump needs, MRCOOL has a large selection of package to ensure you will find one that fits your home seamlessly.

Does your office have two conference rooms and a kitchen? Does your home contain a family basement, living room, and master bedroom? Check out this 48k BTU, 22.4 SEER Olympus Ductless Heat Pump System from MRCOOL. A MULTI5-48HP230V1 condenser anchors this tri-zone system. The zones are divided with 18k ceiling cassette air handlers covering two designated areas up to 750 square feet. An additional 12k unit covers an area of around 500 square feet.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,CASSETTE12HP-230-P,CASSETTE18HP-230-P,CASSETTE18HP-230-P
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

CASSETTE12HP-230-P Specifications:

Model CASSETTE12HP-230-P
UPC 810512030453
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 35.0000

CASSETTE18HP-230-P Specifications:

Model CASSETTE18HP-230-P
UPC 810512030460
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

does it come with 25 ft line sets
