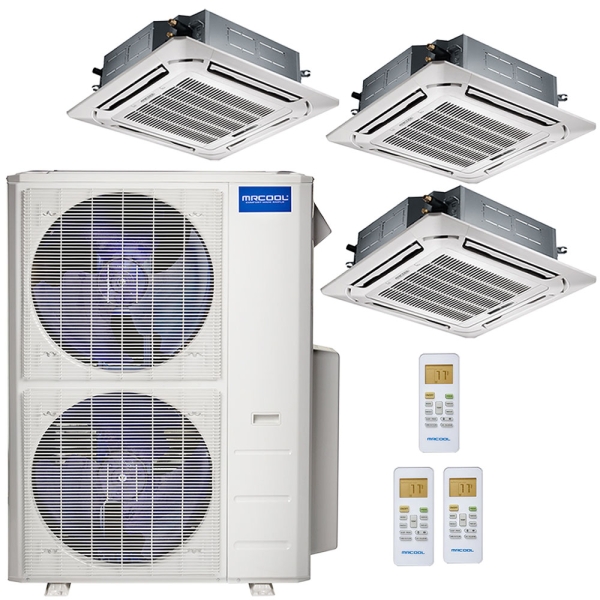

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 18k+18k+18k

Item: HA11801
Models: MULTI5-48HP230V1, CASSETTE18HP-230-P
Condition: New

48k BTU 22.4 SEER MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 18k+18k+18k Zoom

Photo Gallery

Related Videos

The MCOOL Olympus Ductless Heat Pump Split System gives you up to 5 comfort zones to program your environment the way you want. This tri-zone configuration is anchored by the powerful MULTI5-48HP230V1 condenser. With 54k BTU capacity, this unit is rated an energy-conscious 22.4 SEER. Chlorine-free R-410A refrigerant plus self-diagnostic features like leak detection help keep this operation cleaner and smoother. Targeted airflow and comfort delivered courtesy of ceiling cassette air handlers, each with 18k capacity.

Availability: On backorder

As low as: $6,268.00

Price as configured: $6,268.00

Ingram Financing

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1

* Required Fields

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone 48k BTU MrCool Olympus Ductless Heat Pump Condenser - 5 Zone Item: HA11048 Model: MULTI5-48HP230V1 Qty: 1
18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler 18k BTU MrCool Olympus Ductless Ceiling Cassette Air Handler Item: HA11054 Model: CASSETTE18HP-230-P Qty: 3

Overview

Your home comfort system is typically the biggest influence on your utility bills. Keeping this in mind, it’s important to choose an efficient HVAC system to keep your comfort levels high and bills low. This MRCOOL ductless heat pump system can do just that! You may even qualify for an energy rebate, so check your local jurisdiction. Built with highly efficient components, like the inverter compressor, your system should save you money when replacing older HVAC equipment.

MRCOOL ductless systems comes fully equipped with zone technology, which may result in additional energy savings for the energy conscious homeowner. This system also comes with zone technology which allows you to install an air handler in any space you want. If you are not currently using an area of your home, simply turn the air handler up/down or even off. This system gives you many advantages over central air systems so you will not face losses associated with duct leakage. Plus, you get all of the heating and cooling where you want it and when you want it.

This 48,000 BTU MRCOOL Olympus ductless heat pump system comes in the ceiling cassette variety. With three 18,000 BTU air handlers, you will be able to install each of them in spaces 700 to 1000 square feet. This package also includes 3 convenient wireless remotes for each air handler with lots of features to choose from. Adjusting your louvers may be beneficial when you switch from cooling to heating and with louver position memory, you will not have to adjust them every time. Bringing you convenience and efficiency, look to MRCOOL for all of your ductless heat pump needs!

The MCOOL Olympus Ductless Heat Pump Split System gives you up to 5 comfort zones to program your environment the way you want. This tri-zone configuration is anchored by the powerful MULTI5-48HP230V1 condenser. With 54k BTU capacity, this unit is rated an energy-conscious 22.4 SEER. Chlorine-free R-410A refrigerant plus self-diagnostic features like leak detection help keep this operation cleaner and smoother. Targeted airflow and comfort delivered courtesy of ceiling cassette air handlers, each with 18k capacity.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MULTI5-48HP230V1,CASSETTE18HP-230-P,CASSETTE18HP-230-P,CASSETTE18HP-230-P
UPC 856536005862
AHRI Number 8977710
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.2
Series Olympus
Zones 3
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

MULTI5-48HP230V1 Specifications:

Model MULTI5-48HP230V1
UPC 856536005862
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.2
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 50 amps
Primary Heating Capacity 45,001 - 50,000 BTU
Product Height (in) 52
Product Length (in) 16
Product Width (in) 37
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 224.0000
Region Compatibility Nationwide

CASSETTE18HP-230-P Specifications:

Model CASSETTE18HP-230-P
UPC 810512030460
Air Flow Direction Downflow
Configuration Ceiling Cassette
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10
Product Length (in) 22
Product Width (in) 22
Series Olympus
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 40.0000

Reviews

Q & A

Do you have questions about this product?

The title says 54k BTU and the bundle says 48k, which one will be delivered? Ceiling cassette have the grill already installed on them? Any line set what the picture shows ? Linesets/system pre-charged? How much refrigerant will be needed if its not pre-charged? Warranty only five or 5/7 years?
Do you have retailer in GA, where it could be picked up?
